LIYO Machinery supplies water well drilling rigs and borehole drilling machines for irrigation, residential water supply, geological exploration and construction projects.
Choose suitable borehole drilling machines according to drilling depth, geology, hole diameter and project requirements.
Compact wheeled hydraulic drilling rig designed for water wells, farm irrigation, geological exploration and borehole drilling projects.
24HP EPA and Euro 5 gasoline powered drilling machine designed for North American water well projects.
RATO R999 EPA and Euro 5 gasoline powered drilling machine for deeper North American borehole projects.
Compact self-propelled crawler drilling rig with rubber tracks for soft ground, muddy farmland and narrow access drilling sites.
Dual hydraulic motors, 64mm heavy-duty drill pipes, 6.50-16 truck-type tires and hydraulic folding mast for professional 260m drilling projects.
Upgraded crawler drilling rig with 220m depth capacity, 70-350mm hole diameter and dual-engine hydraulic system.
Featuring an upgraded gear-oil gearbox system for better sealing, longer service life and deeper drilling performance.

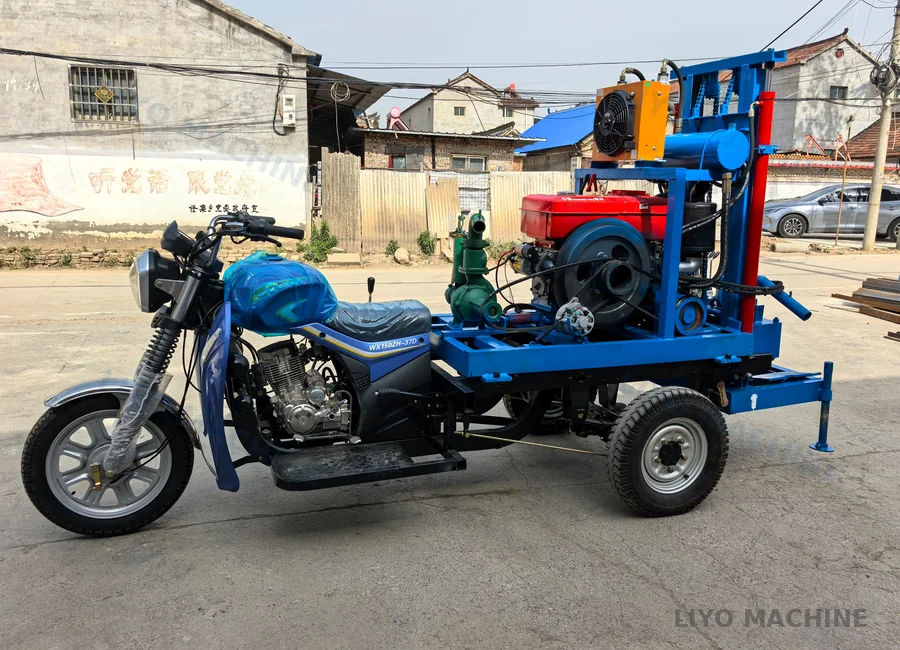

Self-driving tricycle mounted drilling rig for rural roads, hilly areas and village water well projects.

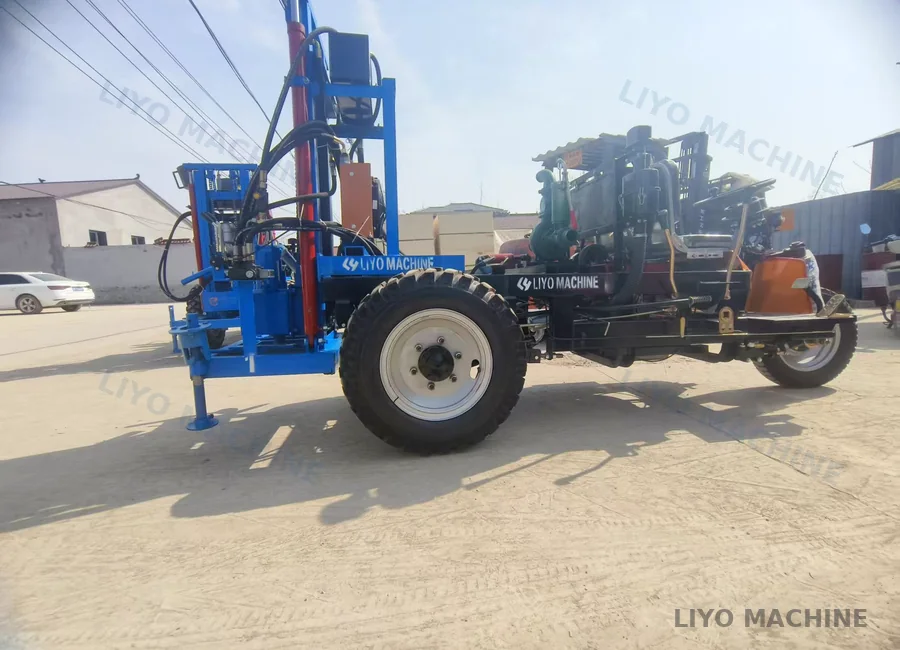

Single diesel engine powers both driving and drilling, with 650×16 truck tires and large drill rod carrying platform.
Compact pure electric drilling machine with 4kW motor, gear reducer drive and 220V / 110V voltage options.
380V hydraulic electric drilling machine with 150m depth capacity and 6T lifting force.
LIYO borehole drilling machines are widely used in water supply, farm irrigation and geological drilling projects.
High drilling efficiency for different soil and rock conditions.
Stable hydraulic control system for easier operation.
Compact crawler design for farms, villages and rough terrain.
Spare parts, technical guidance and overseas project support.
LIYO Machinery focuses on drilling equipment manufacturing and export. We provide water well drilling rigs, hydraulic borehole drilling machines, drilling tools and spare parts for global contractors.
A drilling depth number alone is not enough. Before selecting a machine, confirm the planned well depth, finished casing size, pump outside diameter, geology, drilling method and road conditions. Larger boreholes and harder formations reduce the practical depth margin of a compact rig.
| Project Requirement | Typical Starting Point | What the Buyer Must Confirm |
|---|---|---|
| LY-150 | 100-150m compact water well projects | Soil or mixed formation, required borehole diameter and available towing vehicle |
| LY-200 | Up to 200m farm, village and contractor wells | Target depth, 70-350mm hole requirement, drill rod quantity and mud pump package |
| LYC-150M | Soft ground, muddy farmland and narrow access | Ground bearing condition, access width and relocation distance |
| LYQY-260 | Deeper contractor projects up to 260m | Required torque, 64mm drill rods, large borehole demand and towing conditions |
Confirm the submersible pump outside diameter and the installation clearance required by the pump supplier.
The casing inside diameter must be larger than the pump outside diameter so the pump can be installed and serviced.
The borehole diameter must be larger than the casing outside diameter, allowing room for wall thickness, gravel pack and sealing.
Choose the machine only after depth, diameter, geology, drilling method and site access are known.
Need a beginner checklist? Read the depth, borehole, casing and pump guide, then send LIYO your project parameters for a configuration recommendation.
Different LIYO models can cover drilling depths from 100m to 800m depending on geology and configuration.
Yes. With DTH hammer and suitable drill bits, the rig can work in hard rock drilling conditions.
Please tell us your drilling depth, hole diameter, geology and project country. We will recommend a suitable model.
Yes, LIYO provides drilling tools, spare parts and technical support for overseas customers.
Tell us your drilling depth, hole diameter and project location.
