LYC-150M Mini Crawler Water Well Drilling Rig
LYC-150M is a compact self-propelled crawler drilling machine designed for soft ground, muddy farmland and narrow-access water well projects. Its rubber crawler chassis allows the machine to move independently where wheel-mounted rigs may struggle.
Why Choose LYC-150M Mini Crawler Rig?
This page focuses on what makes LYC-150M different: crawler mobility, soft-ground access and compact self-propelled operation.
Rubber Crawler Chassis
Rubber tracks improve traction and reduce ground pressure on muddy farmland, marshland and unstable road surfaces.
Self-Propelled Mobility
The crawler chassis allows the rig to move between drilling positions by itself, with recommended travel speed below 5 km/h.
Compact Body Size
2240 × 1100 × 2050mm compact dimensions help the machine enter narrow farms, backyards and rural access roads.
Three-Valve Hydraulic Control
The same practical hydraulic control logic as LY-150 makes operation simple, reliable and easy to maintain.

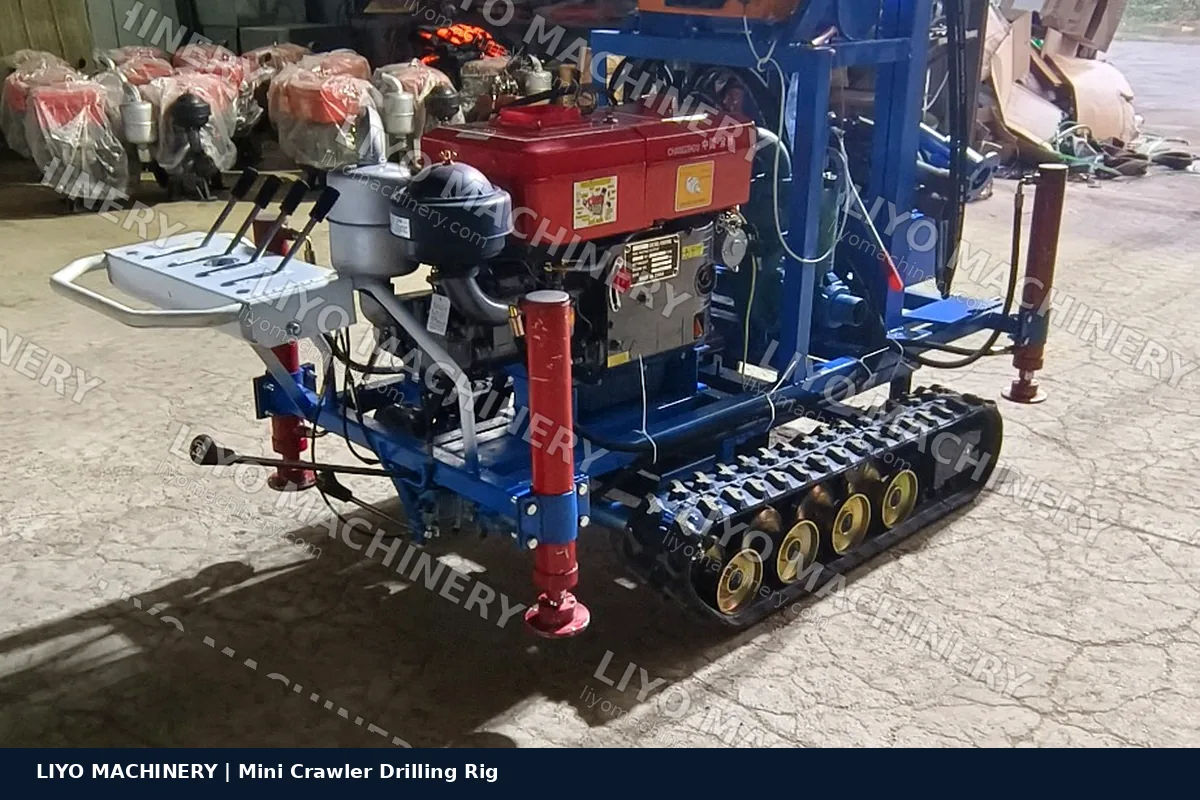

Rubber Crawler Chassis For Muddy And Marshy Terrain
Unlike wheel-mounted drilling machines that depend on towing vehicles, the LYC-150M uses a rubber crawler chassis that can move independently on soft ground.
This design improves traction, reduces sinking risk and helps the rig access farmland, wet soil areas, riverbanks, small villages and narrow drilling locations where ordinary wheel rigs may be difficult to move.
51mm Drill Rod
Economical 51mm drill rod configuration suitable for 150m water wells and common borehole drilling projects.
25HP Diesel Engine
Reliable diesel power for field operation, farm irrigation wells and residential water supply projects.
Three-Valve Hydraulic Control
Independent hydraulic operation supports drilling, lifting and mud pump control with straightforward maintenance.
LYC-150M vs Wheel-Mounted Water Well Drilling Rig
LYC-150M is designed for sites where mobility is more important than maximum drilling depth.
| Feature | LYC-150M Mini Crawler Rig | Wheel-Mounted Drilling Rig |
|---|---|---|
| Soft Ground Mobility | Excellent rubber crawler traction | Limited on mud or marshland |
| Self-Propelled Movement | Yes, recommended below 5 km/h | Usually needs towing vehicle |
| Ground Pressure | Lower pressure from crawler track | Higher pressure from wheels |
| Narrow Access Sites | Compact body for restricted areas | Depends on towing access |
| Best Use Case | Soft ground, wet farmland, marshy sites | Roadside, flat farms, easy transport sites |
LYC-150M Technical Specification Matrix

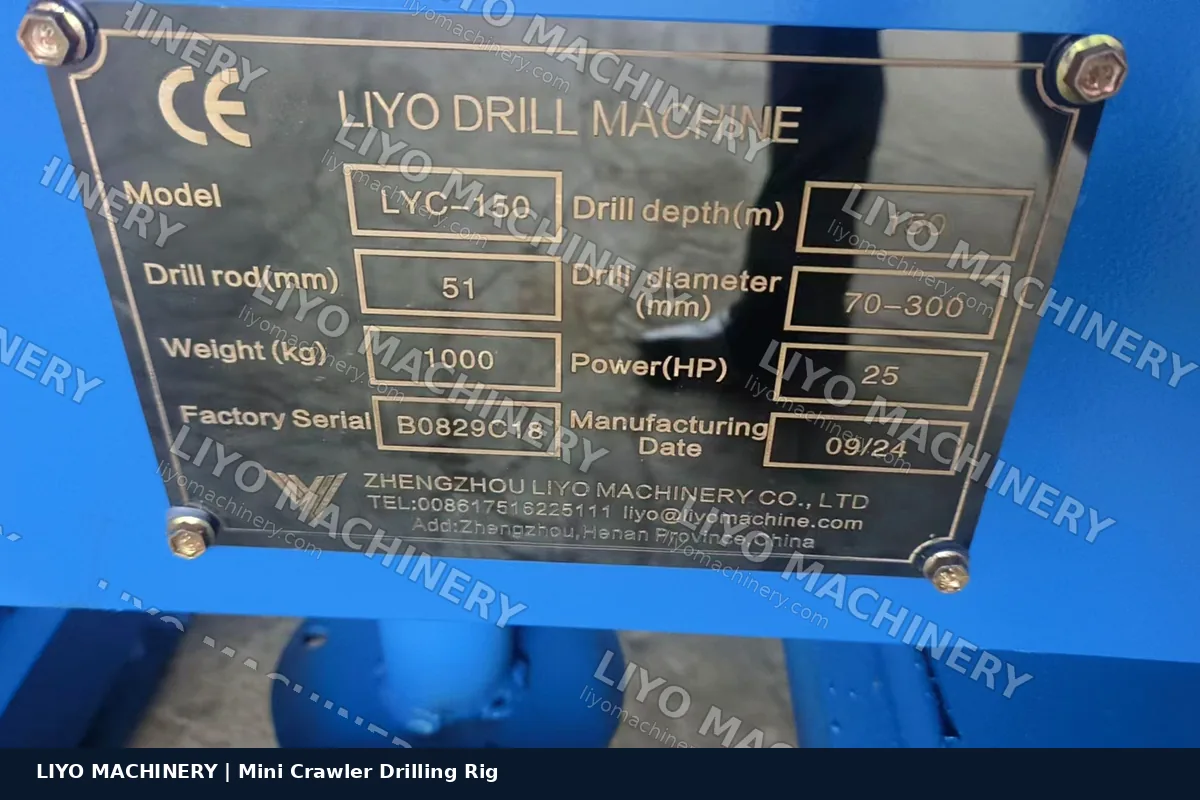

Confirmed specifications based on machine plate and product configuration.
| Parameter Item | Standard Specification | Engineering Advantage |
|---|---|---|
| Model | LYC-150M | Mini crawler water well drilling rig |
| Drilling Depth | 150m | Suitable for irrigation wells and residential water supply |
| Hole Diameter | 70-300mm | Flexible borehole range for small and medium well projects |
| Drill Rod Diameter | 51mm | Economical drill rod configuration for 150m drilling work |
| Engine Power | 25HP | Reliable diesel power for field operation |
| Machine Weight | 1000kg | Compact crawler body with stable drilling base |
| Machine Dimension | 2240 × 1100 × 2050mm | Compact size for narrow access areas |
| Chassis Type | Rubber Crawler Chassis | Better mobility on soft ground and muddy terrain |
| Hydraulic System | Single Hydraulic System | Simple operation and low maintenance cost |
| Control System | Three-Valve Hydraulic Control | Independent control for drilling and water pump operation |
| Recommended Travel Speed | ≤5 km/h | Safe self-propelled movement between drilling positions |

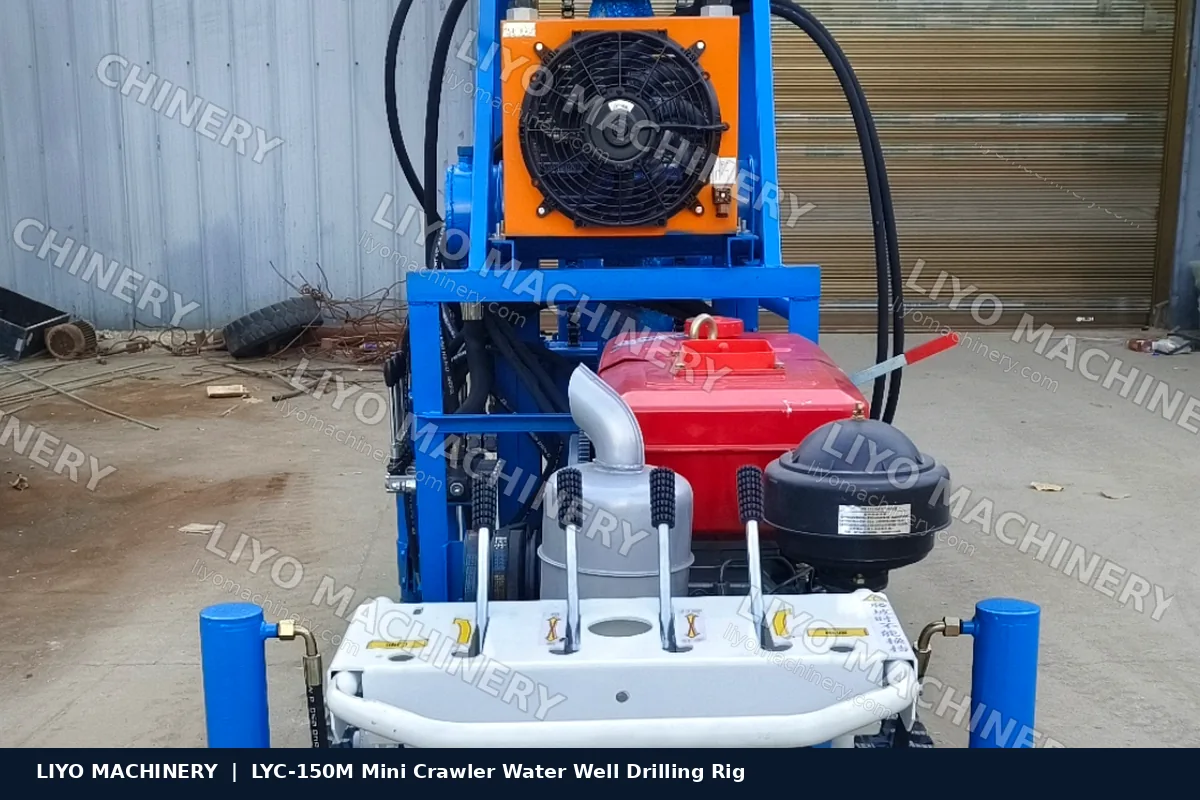

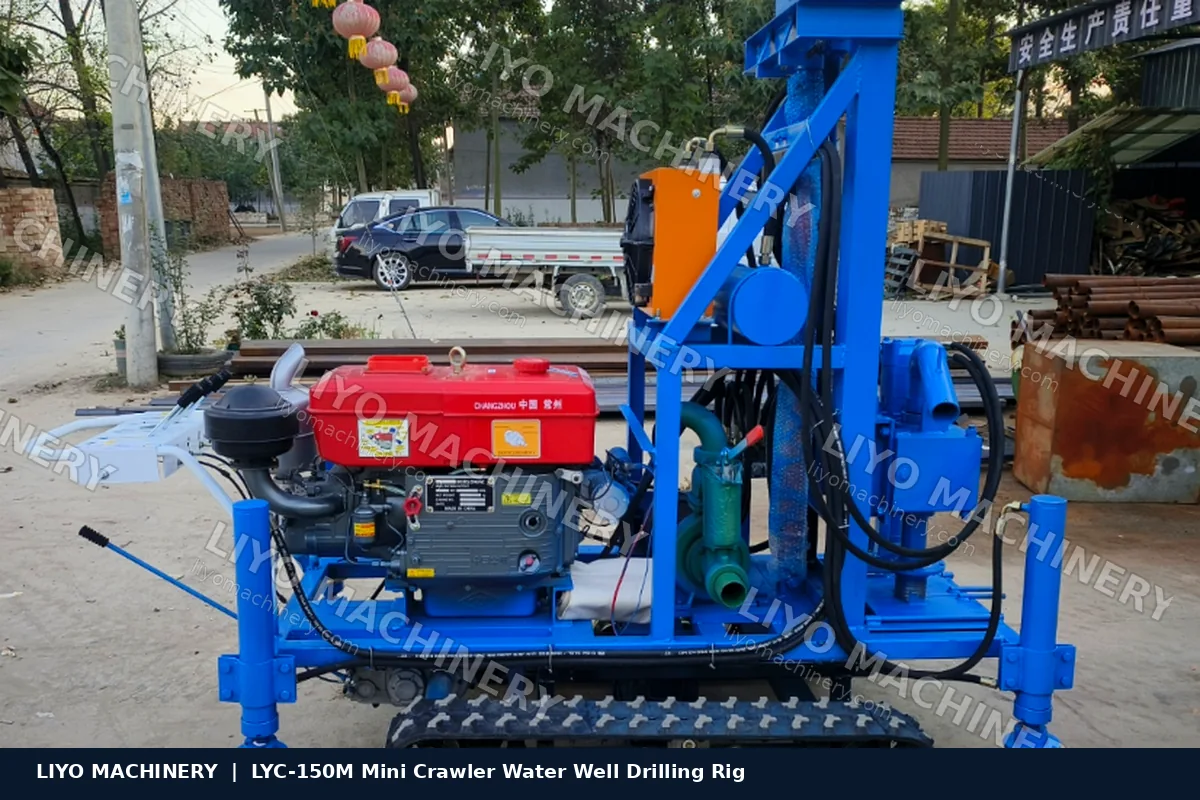

Selected LYC-150M Real Factory Photos

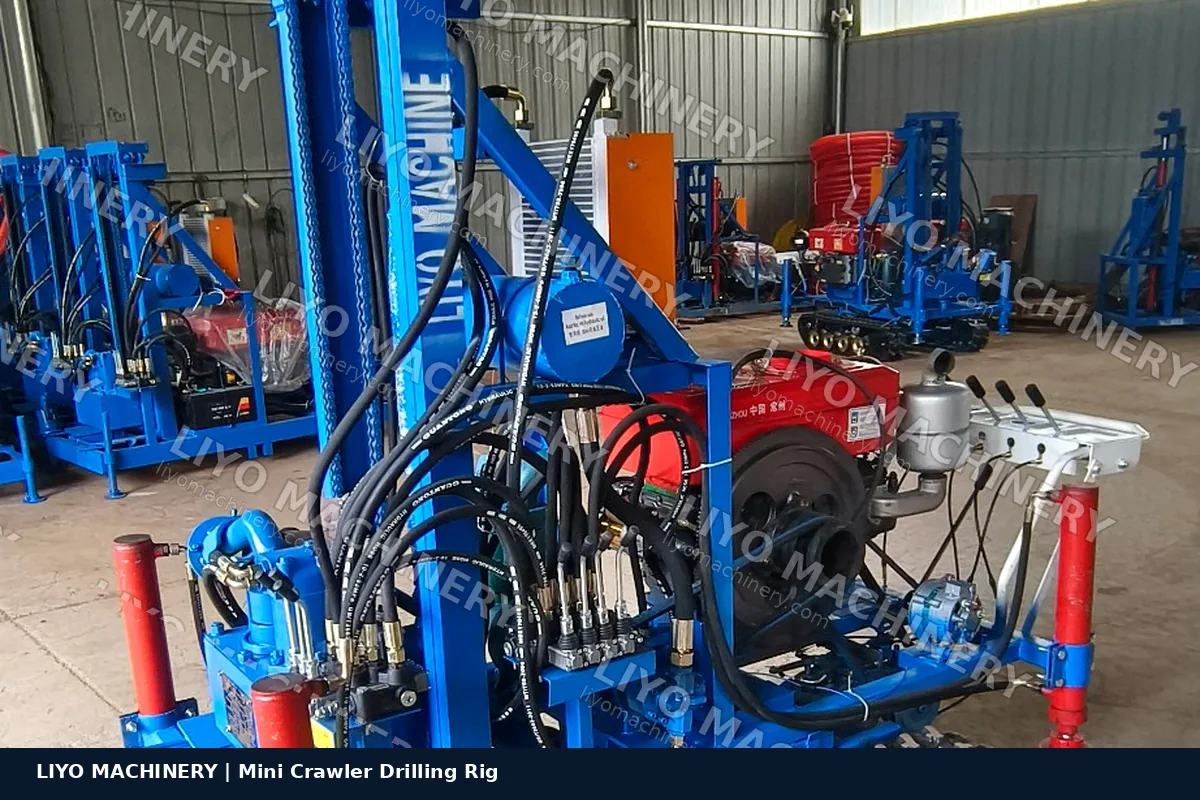

Only selected images are used to keep the page clean while showing the crawler chassis, hydraulic system and compact machine structure.
Designed For Soft Ground And Narrow Access Projects
Farm Irrigation Wells
Suitable for agricultural areas where soil is soft and towing a wheel rig may be difficult.
Residential Water Supply
Compact size helps the machine enter villages, backyards and rural home water projects.
Marshland And Muddy Sites
Rubber crawler tracks improve mobility on wet, muddy and unstable terrain.
Riverbank Drilling
Useful for narrow access areas near rivers, ponds and soft soil water source projects.
Small Geological Exploration
Can be used for light geological survey and borehole drilling work.
Remote Rural Locations
Self-propelled movement helps relocation between drilling points when site access is limited.
Why Buy From LIYO Machine?
LIYO Machine provides factory-direct drilling rigs, technical support and spare parts service for global water well drilling contractors.
15+ Years Manufacturing Experience
Professional drilling rig manufacturer with in-house production, assembly and product development experience.
Factory Direct Supply
Work directly with the manufacturer for better pricing, clearer technical communication and reliable after-sales support.
Strict Quality Inspection
Each drilling rig is inspected and tested before shipment to help reduce failure risk after delivery.
Spare Parts Support
Common spare parts, drilling tools and configuration support are available for long-term machine operation.
LYC-150M FAQ
Q1: Can the LYC-150M move by itself?
Yes. It uses a rubber crawler chassis and can move independently between drilling locations. Recommended travel speed is below 5 km/h.
Q2: Can it work on muddy ground?
Yes. The crawler chassis provides better traction and lower ground pressure than wheel-mounted rigs, making it suitable for soft ground and muddy farmland.
Q3: What is the drilling depth?
The LYC-150M supports drilling depths up to 150 meters, depending on formation, drilling method and hole diameter.
Q4: What drill rod does it use?
The standard drill rod diameter is 51mm, suitable for 150m water well drilling projects.
Request A Quote
Tell us your drilling depth, soil condition and destination country. Our team will recommend the suitable configuration.
