LY-130E Electric Water Well Drilling Machine
The LY-130E is a compact pure electric borehole drilling machine. It uses a 4000W electric motor and gear reducer to drive drilling rotation, with button control and an electric control box. 220V 50Hz / 60Hz can be produced, and 110V motor configuration is available for the USA market.
Compact Electric Rig with Hydraulic Drilling Control
LY-130E is suitable for farms, household wells, irrigation projects and rural water supply where stable 220V power is available.
220V / 110V Motor Options
220V 50Hz or 60Hz can be produced. For the USA market, 110V motor configuration is also available by changing the motor.
4000W Motor + Gear Reducer
The 4000W electric motor drives the gear reducer to provide drilling rotation for compact borehole projects.
Button Control System
The electric control box uses button operation for simple control, easy operation and lower maintenance.
Lower Noise Operation
No diesel engine noise, suitable for farms, villages, residential wells and low-noise job sites.
Easy Maintenance
Electric hydraulic structure reduces diesel engine maintenance and simplifies regular operation.
Small Borehole Projects
Ideal for household wells, farm irrigation, garden wells and rural borehole drilling projects.
Not a Simple Electric Direct-Drive Machine
The LY-130E uses the same core product logic as the larger LY-150E electric model: electric power supplies hydraulic power, and button control provides smoother drilling operation.
This structure gives the operator better torque control, easier forward / reverse button control, lower noise and more stable drilling performance.
Ask for LY-130E PricePure Electric Gear Reducer Drive vs Hydraulic Drilling Rig
LY-130E is designed as a simple pure electric drilling machine. Compared with hydraulic rigs, it has a simpler structure, lower maintenance requirement and easier button operation for small borehole projects.
| Feature | Hydraulic Drilling Rig | LY-130E Pure Electric Rig |
|---|---|---|
| Drive System | Hydraulic pump and hydraulic motor | 4000W electric motor + gear reducer |
| Control Method | Hydraulic valve control | Button control with electric control box |
| Structure | More complex | Simpler and compact |
| Maintenance | Hydraulic oil and hydraulic parts | Lower maintenance electric structure |
| Voltage Options | Depends on motor configuration | 220V 50Hz / 60Hz, 110V optional for USA |
| Best Use | Heavy-duty drilling projects | Small farm wells, household wells and garden boreholes |
LY-130E Specifications
Standard configuration can be adjusted according to drilling condition and buyer requirement.
| Item | Specification |
|---|---|
| Model | LY-130E |
| Drilling Depth | 130m |
| Power Type | Pure electric drive system |
| Voltage | 220V 50Hz / 60Hz available, 110V optional for USA market |
| Main Motor Power | 220V 4kW |
| Drive System | 4000W electric motor + gear reducer |
| Control Method | Button control with electric control box |
| Mud Pump Power | 220V 1.2kW / 2.2kW optional |
| Machine Weight | 290kg |
| Machine Size | 800 × 800 × 1840mm |
| Application | Farm wells, household wells, garden wells and rural borehole drilling |

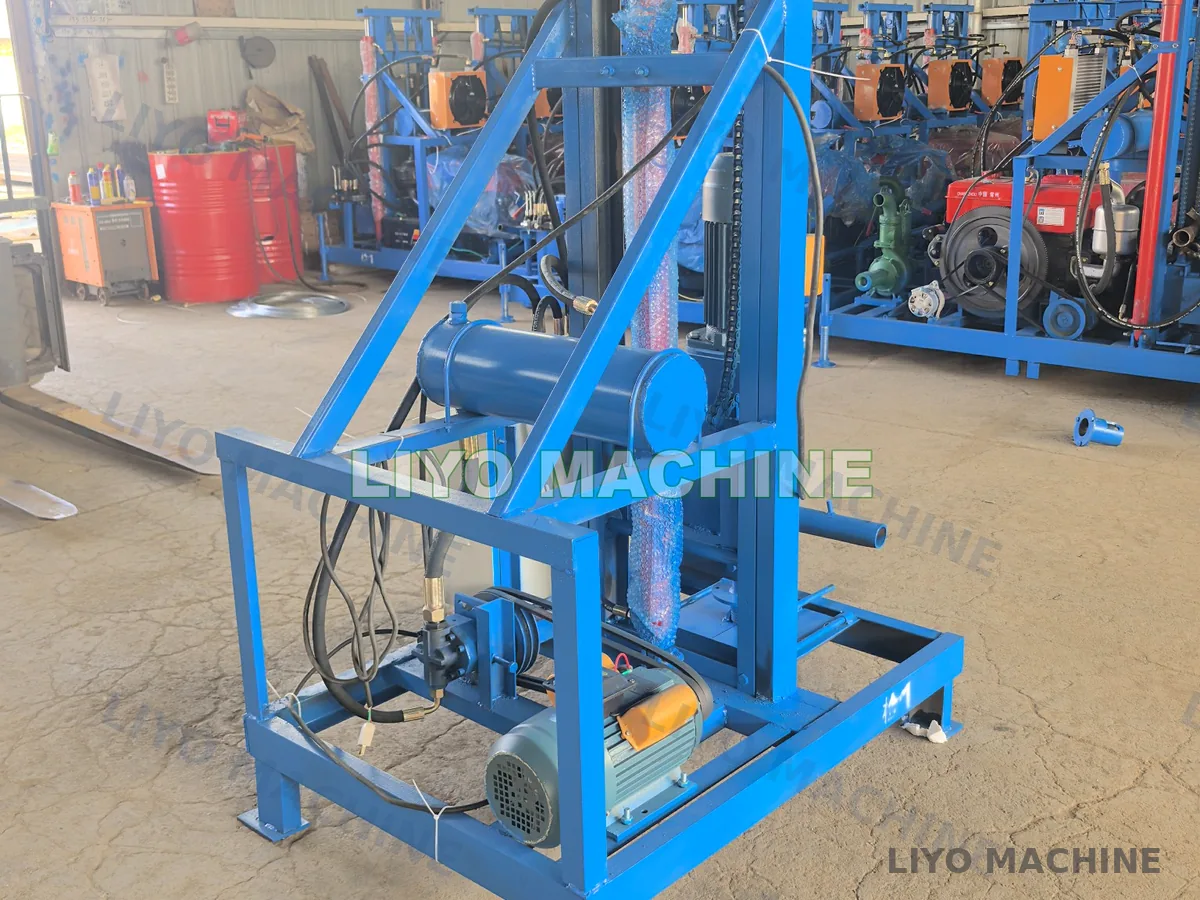

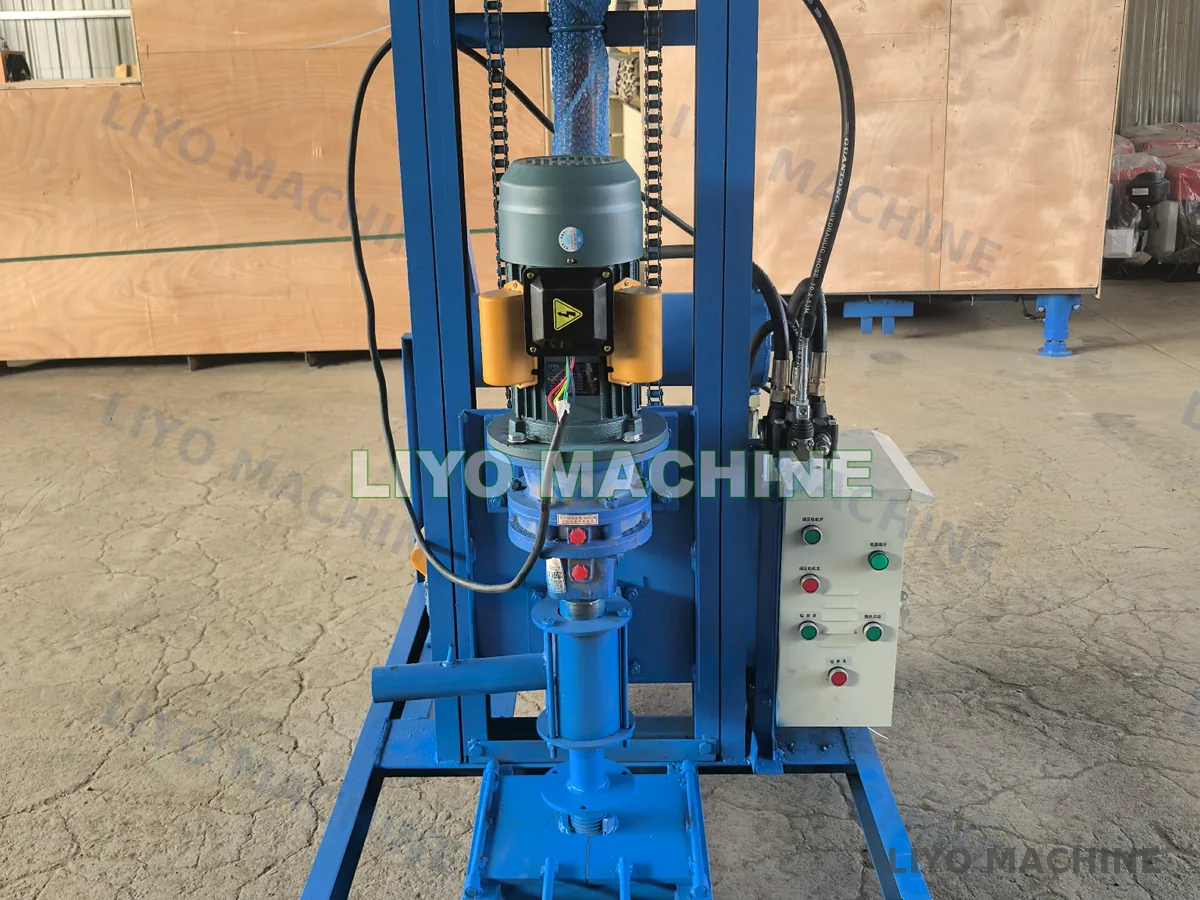

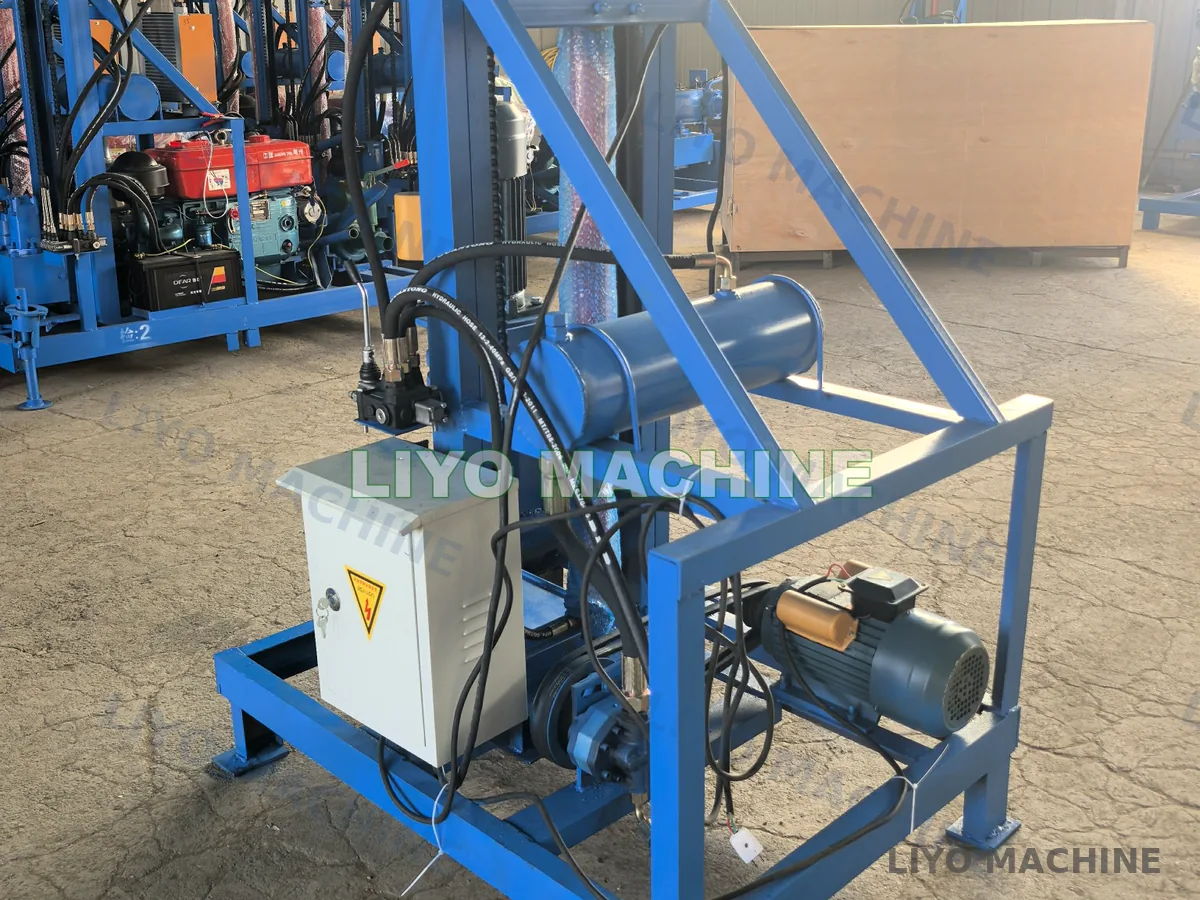

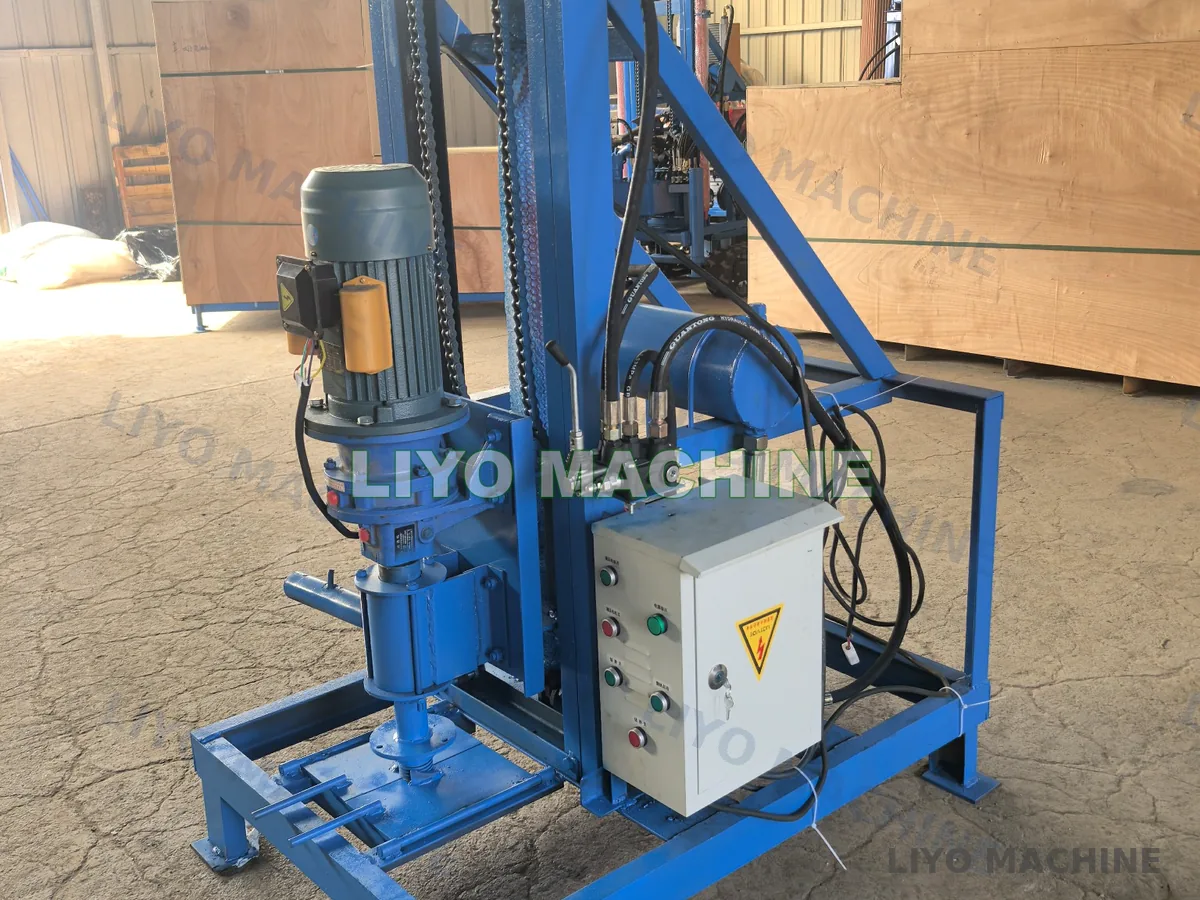

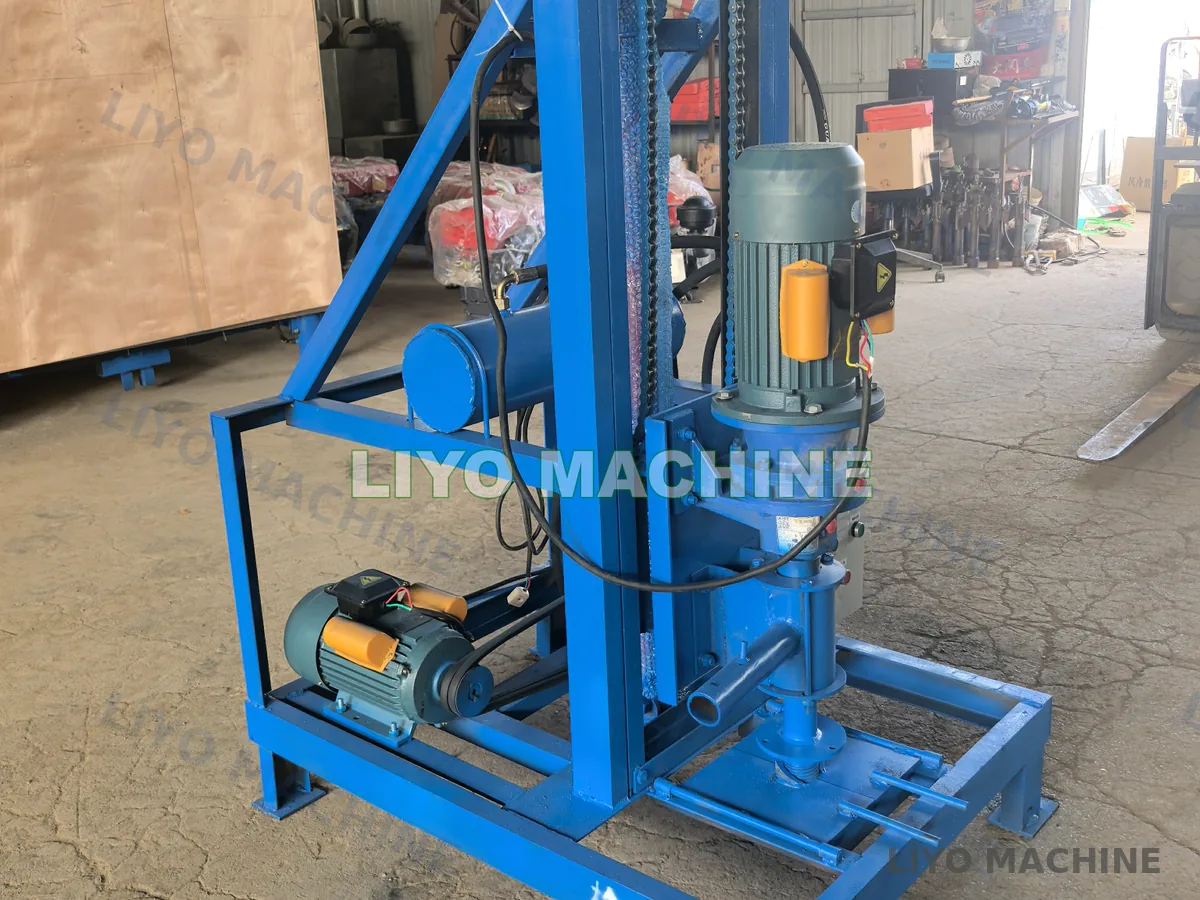

LY-130E Real Machine Gallery
Real workshop photos of the compact pure electric drilling machine.
For Farm Wells, Household Wells and Rural Water Supply
The LY-130E is designed for smaller borehole projects where electric power is easier to use than diesel fuel. It is a practical choice for farm irrigation, garden wells and household water supply projects.
For buyers who need deeper capacity or wheeled towing structure, the LY-150E electric model is also available.
Frequently Asked Questions
Is the LY-130E hydraulic or direct-drive?
The LY-130E is an pure electric drilling machine. The electric motor drives the electric control system, and the electric drive system controls drilling operation.
What power supply does LY-130E use?
The LY-130E uses a 220V 4kW electric motor. The mud pump can be configured with 220V 1.2kW or 2.2kW power. 220V 50Hz / 60Hz and 110V motor options are available according to country voltage.
What is the drilling depth?
The LY-130E is positioned as a compact 130m pure electric water well drilling machine.
Is it quieter than diesel drilling rigs?
Yes. Since it does not use a diesel engine, the LY-130E has lower noise and simpler maintenance.
What is the difference between LY-130E and LY-150E?
LY-130E is more compact for smaller borehole projects, while LY-150E offers higher 150m drilling capacity and a wheeled towing structure.
Can LY-130E be made for different country voltages?
Yes. LY-130E can be produced for 220V 50Hz or 60Hz power supply. For the USA market, 110V motor configuration is also available by changing the motor.
Need a Compact Pure Electric Borehole Drilling Machine?
Tell us your drilling depth, soil condition, borehole diameter and local power supply. We will recommend LY-130E or LY-150E according to your project.
LY-130E vs LY-150E Electric Drilling Machine
Choose LY-130E for compact pure electric drilling. Choose LY-150E when you need stronger 380V hydraulic electric performance and higher drilling capacity.
| Item | LY-130E | LY-150E |
|---|---|---|
| Drive Type | Pure electric motor + gear reducer | 380V electric motor drives hydraulic pump |
| Voltage | 220V 50Hz / 60Hz, 110V optional | 380V |
| Main Motor | 4kW | 11kW / 15kW optional |
| Control Method | Button control with electric control box | Full hydraulic control |
| Drilling Depth | 130m | 150m |
| Best For | Small farm wells, garden wells, household boreholes | Farm irrigation, rural water supply, stronger borehole drilling |
Need stronger hydraulic electric drilling performance? View LY-150E Electric Water Well Drilling Machine
