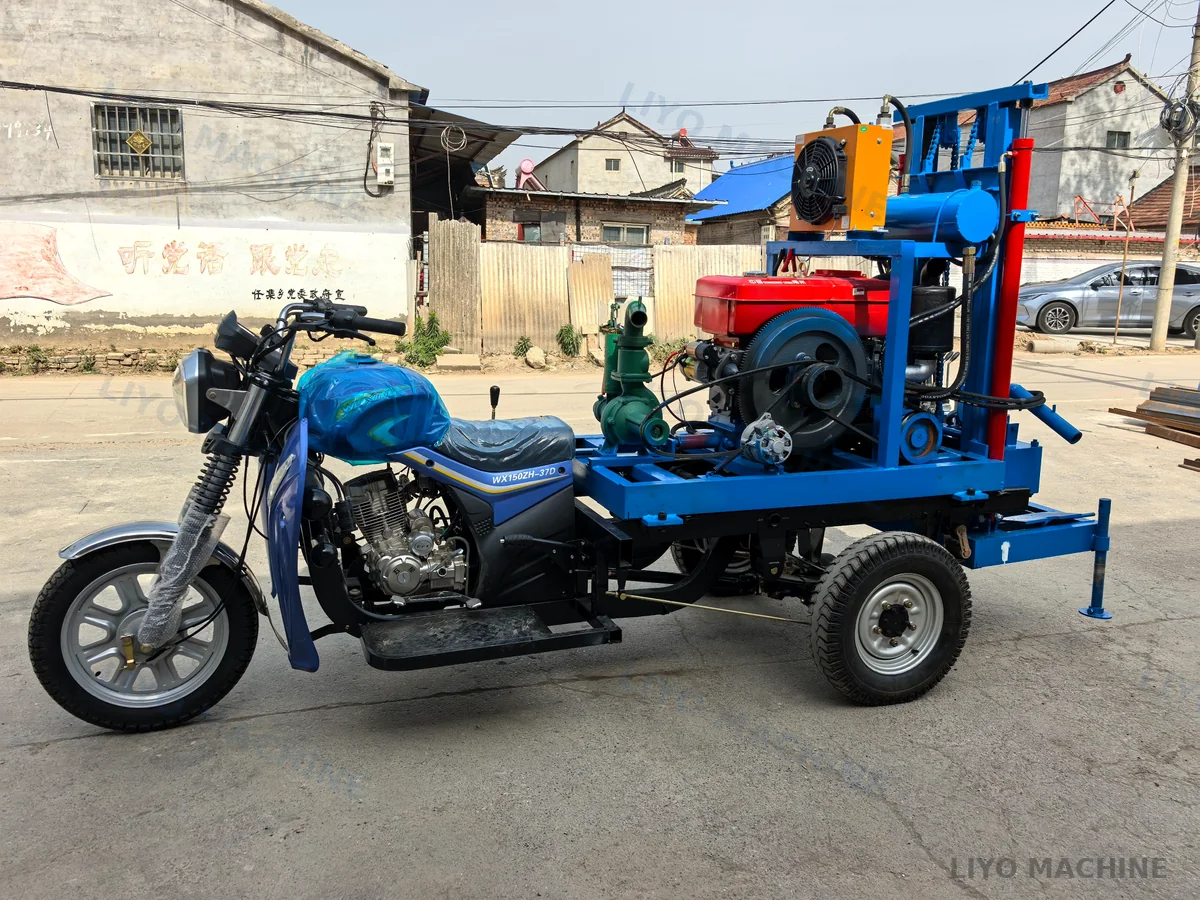

LY-200-3T Gasoline Tricycle Water Well Drilling Rig
Self-driving mobile borehole drilling rig for rural water supply, farm irrigation, hilly areas and village roads where trailer transportation is inconvenient.
Built for African Rural Roads and Hilly Areas
The LY-200-3T is designed for rough, narrow rural roads and hilly areas where a trailer is inconvenient. The tricycle chassis allows the operator to drive directly to the drilling site while carrying rods and tools together.
Self-Driving Tricycle Chassis
No pickup truck or extra trailer is required for short-distance rural movement.
Carry Drill Rods and Tools
The tricycle platform can transport drill rods, drill bits, tools and mud pump accessories together.
Suitable for Village Roads
Ideal for gravel roads, rural roads, hilly terrain and remote village water projects.
No Trailer Required, Lower Transportation Cost
Traditional wheel drilling rigs often require a pickup truck or trailer to move between job sites. The LY-200-3T integrates the drilling rig with a tricycle chassis, reducing transportation cost and improving deployment speed.
For rural water well teams in Africa, this design is especially useful when moving between villages, farms and hilly construction sites.
Watch the LY-200-3T Gasoline Tricycle Drilling Rig Video
See how the LY-200-3T tricycle water well drilling rig is designed for mobile borehole drilling, rural road movement and integrated drill rod transportation.
LY-200-3T Gasoline Tricycle Drilling Rig Parameters
| Item | Specification |
|---|---|
| Model | LY-200-3T |
| Product Type | Gasoline Tricycle Water Well Drilling Rig |

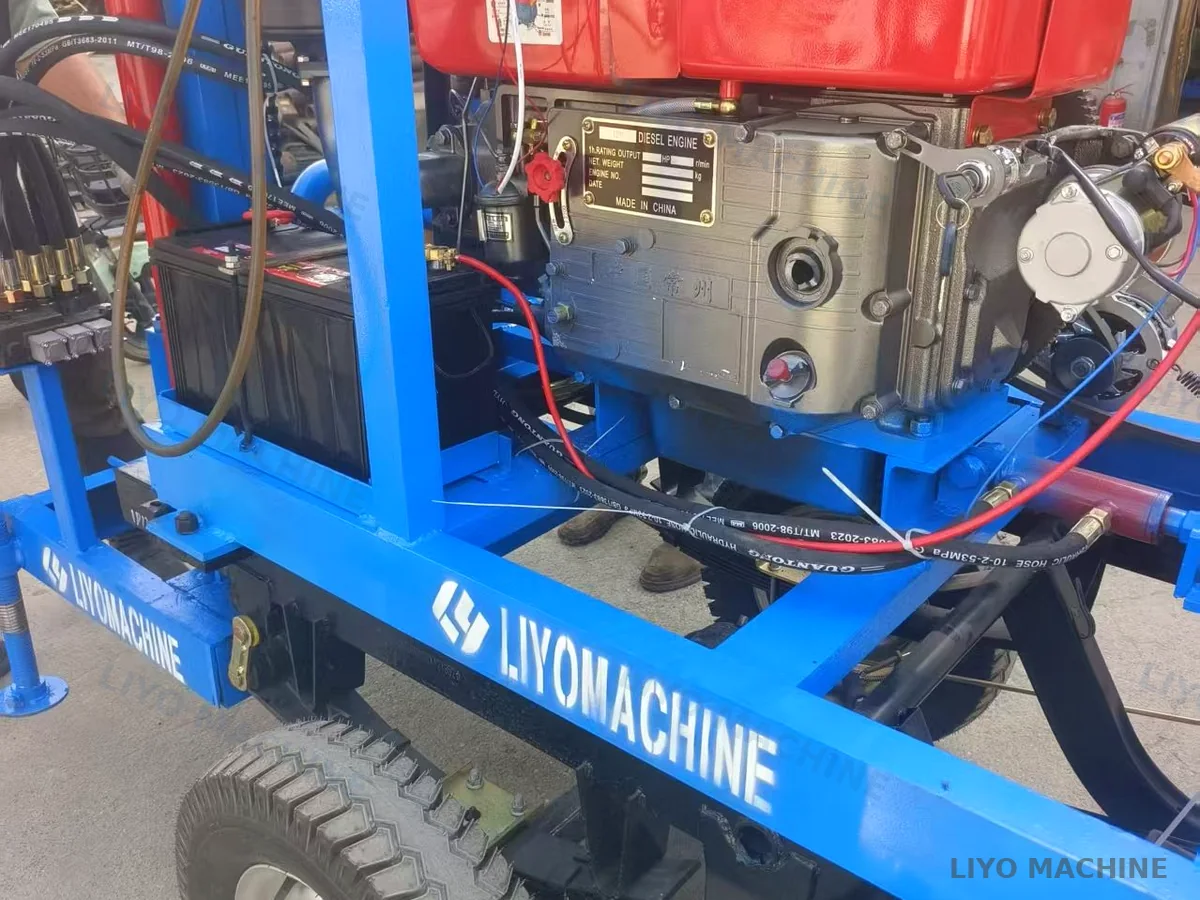

| Drilling Rig Engine | 32HP gasoline engine |
| Tricycle Drive Engine | 150cc gasoline engine |

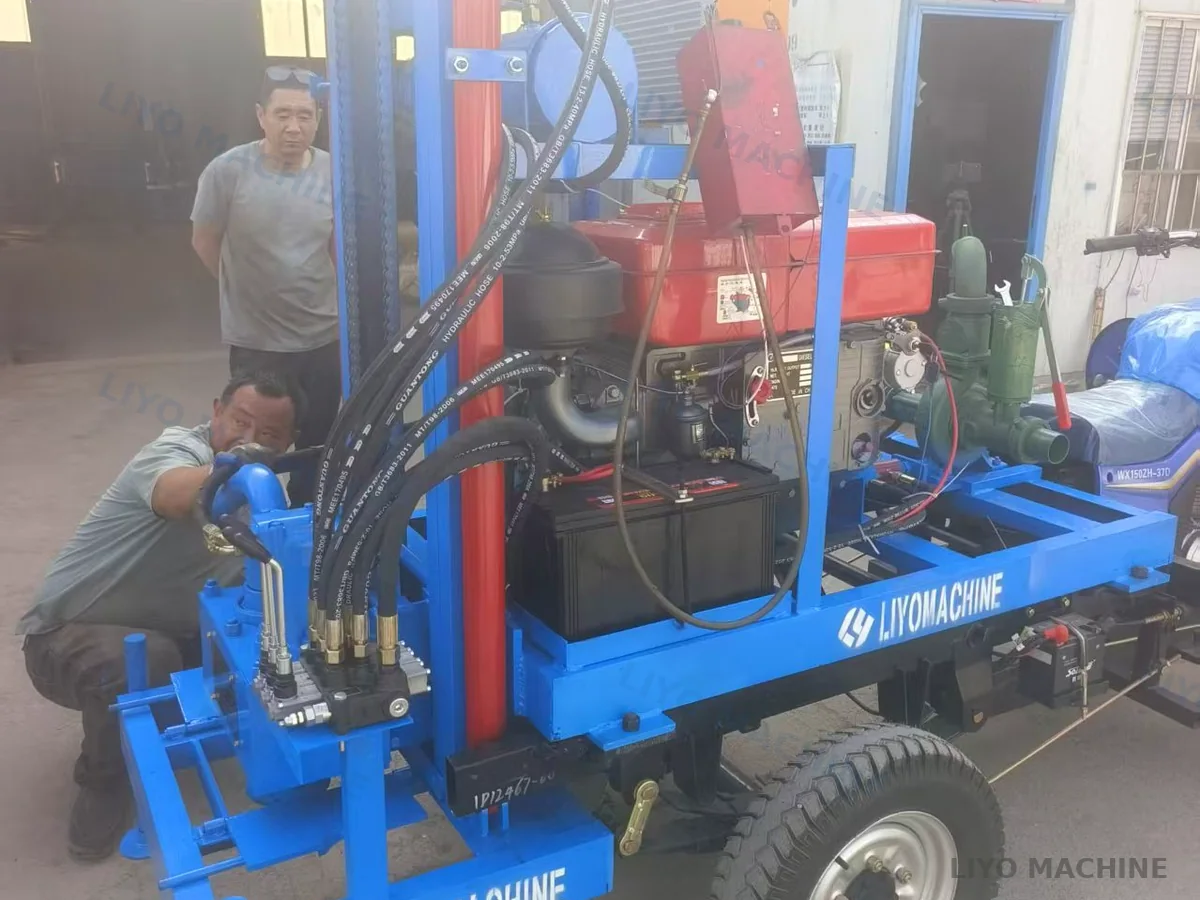

| Hydraulic System | Dual hydraulic system |
| Maximum Drilling Depth | 200m |
| Customizable Depth | Up to 250m |
| Drill Pipe Diameter | 51mm |
| Drill Pipe Length | 1.5m |
| Power Head Speed | 120 rpm |
| Torque | 1000 N.m |
| Lifting Force | 6T |
| Lift Height | 2.8m |
| Mud Pump | 3 inch centrifugal pump |
| Machine Size | 1950 × 1000 × 2450mm |
| Warranty | 1 year |
Why Choose a Tricycle Water Well Drilling Rig?
| Item | Trailer Type Rig | LY-200-3T Tricycle Rig |
|---|---|---|
| Movement | Needs towing vehicle | Self-driving tricycle chassis |
| Rod Transport | Often requires separate transport | Can carry drill rods and tools together |
| Setup Speed | Slower | Fast deployment after arrival |
| Transport Cost | Higher | Lower for village-to-village projects |
| Road Suitability | Depends on towing vehicle | Good for rural roads and hilly areas |
Designed for Rural Water Projects
This machine is suitable for soft to medium soil formations and rural road conditions. It is not intended for extremely muddy roads or very hard rock formations without proper drilling tools and compressor configuration.
Farm Irrigation Wells
Water source drilling for farms, orchards and agricultural irrigation.
Village Water Supply
Mobile borehole drilling for remote villages and rural communities.
Hilly Areas
Better movement on uneven village roads and hills than trailer-only rigs.
Small Contractors
One rig can handle drilling and short-distance transportation together.

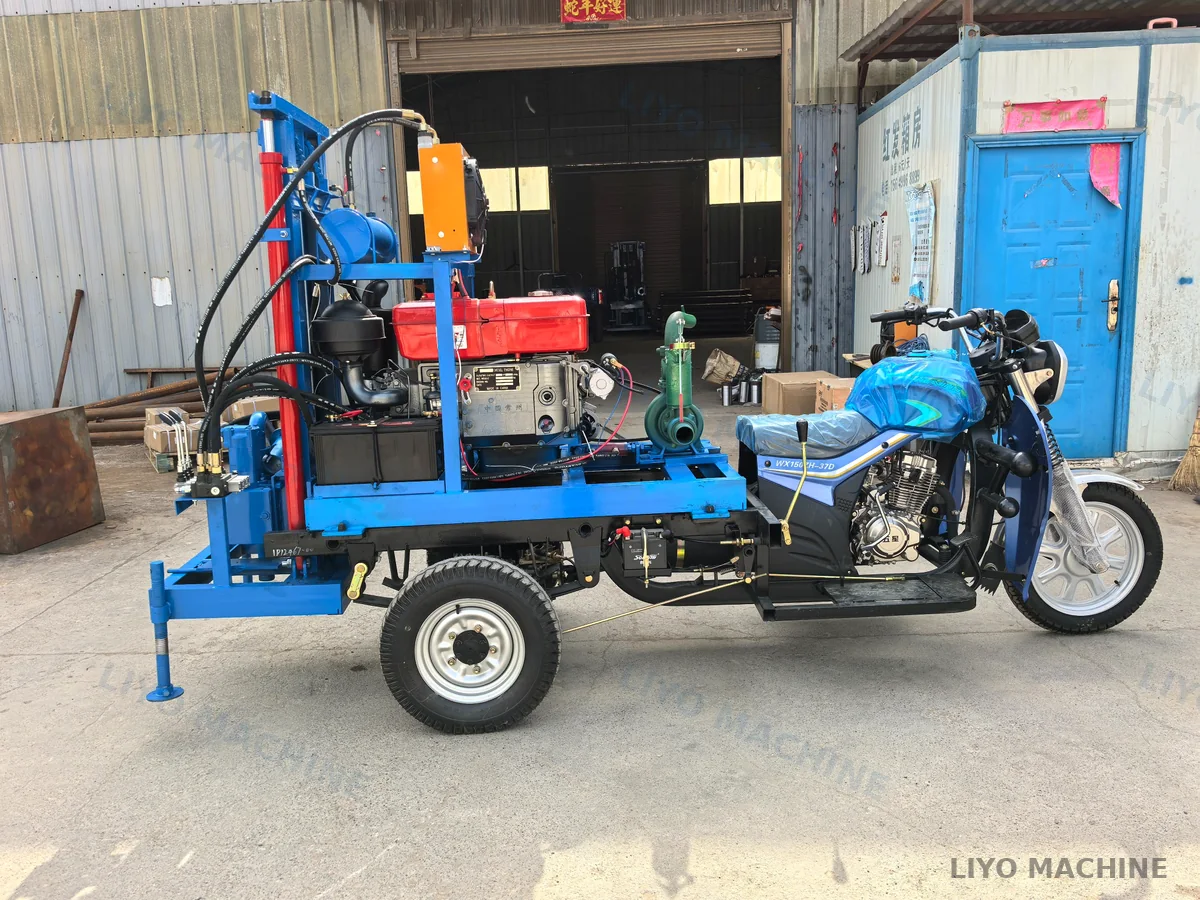

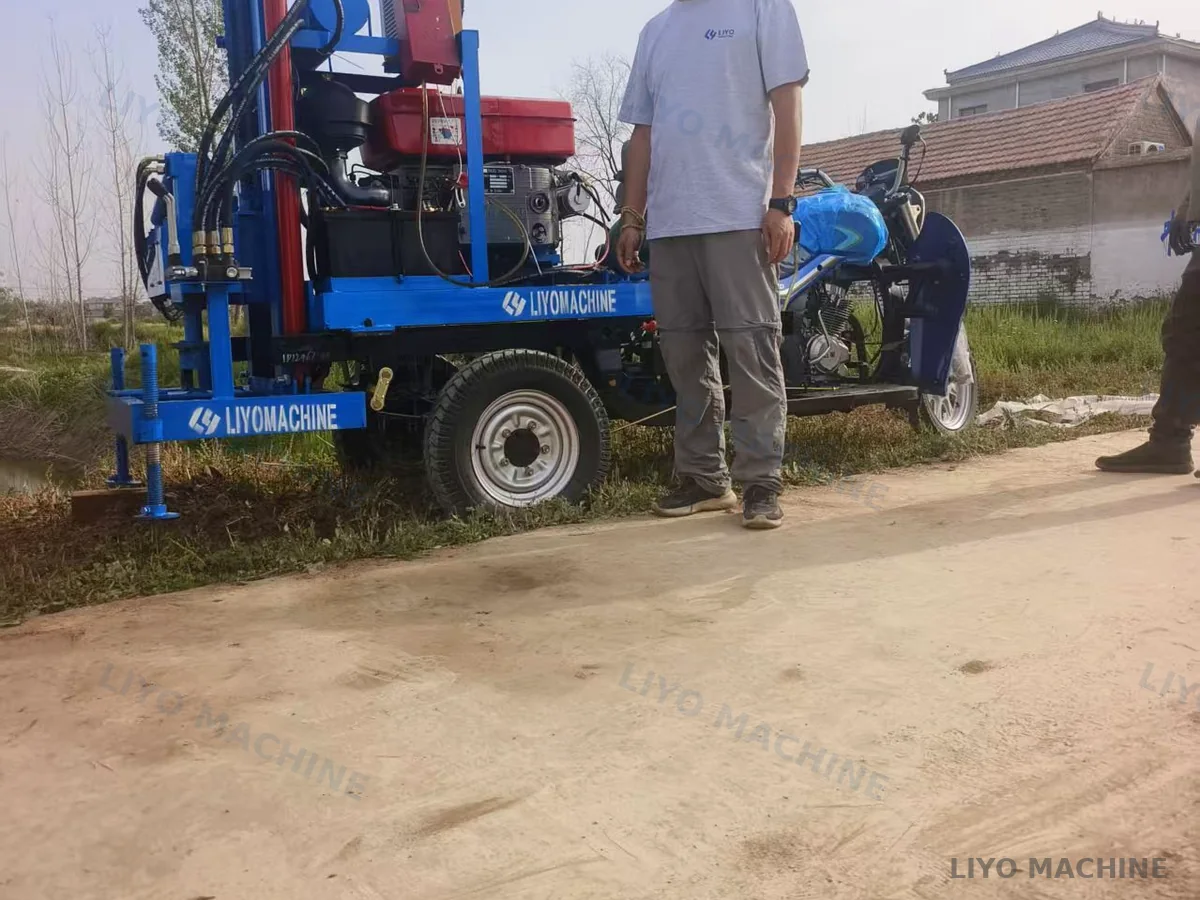

LY-200-3T Product Photos
Frequently Asked Questions
Is the LY-200-3T suitable for Africa?
Yes. It is especially suitable for African rural roads, hilly areas and village water well projects where trailer transportation is inconvenient.
Can it carry drill rods?
Yes. One major advantage of the tricycle design is that it can carry drill rods, drill bits, tools and accessories together.
Is it suitable for very muddy roads?
It is suitable for rural roads, gravel roads and hilly terrain, but not recommended for extremely muddy or swampy roads.
What is the maximum drilling depth?
The standard maximum drilling depth is 200m, and customized depth can reach up to 250m depending on configuration and geology.
Compare Other LIYO Water Well Drilling Machines
Need a Mobile Tricycle Drilling Rig?
Send us your drilling depth, road condition, soil formation and target country. LIYO Machinery will recommend the suitable tricycle water well drilling rig configuration.
