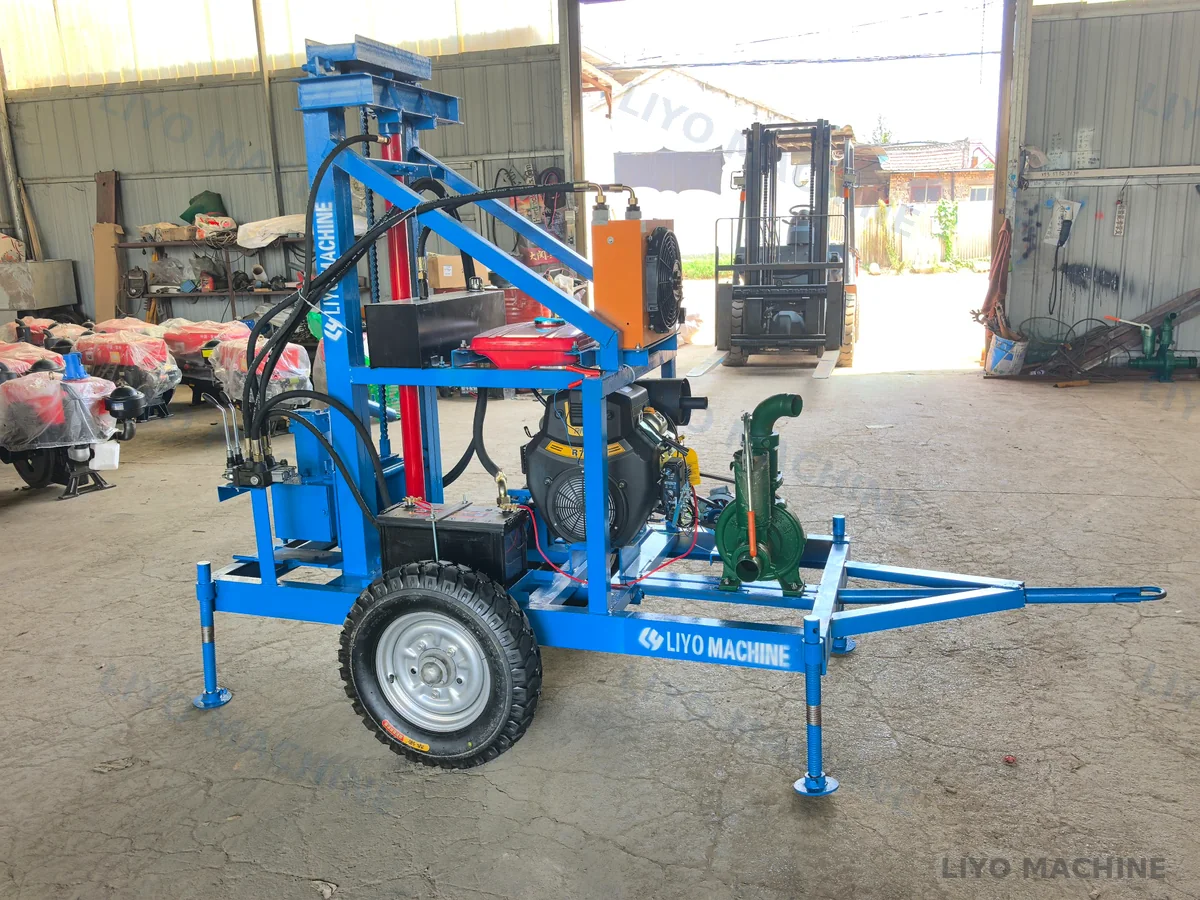

LY-150 EPA Gasoline Water Well Drilling Machine
24HP EPA & Euro 5 certified gasoline powered water well drilling machine for North America, farm irrigation wells, residential boreholes and small contractor drilling projects.
EPA & Euro 5 Gasoline Engine for USA and Canada
The LY-150 EPA model is designed for customers who require gasoline-powered drilling equipment with EPA-compliant engine configuration.
EPA Certified
Suitable for United States and Canada customers requiring compliant gasoline equipment.
Euro 5 Standard
Emission configuration also supports European market requirements where Euro 5 engine standards are needed.
24HP Gasoline Power
Commercial-grade RATO R740D engine provides stable power output for borehole drilling work.

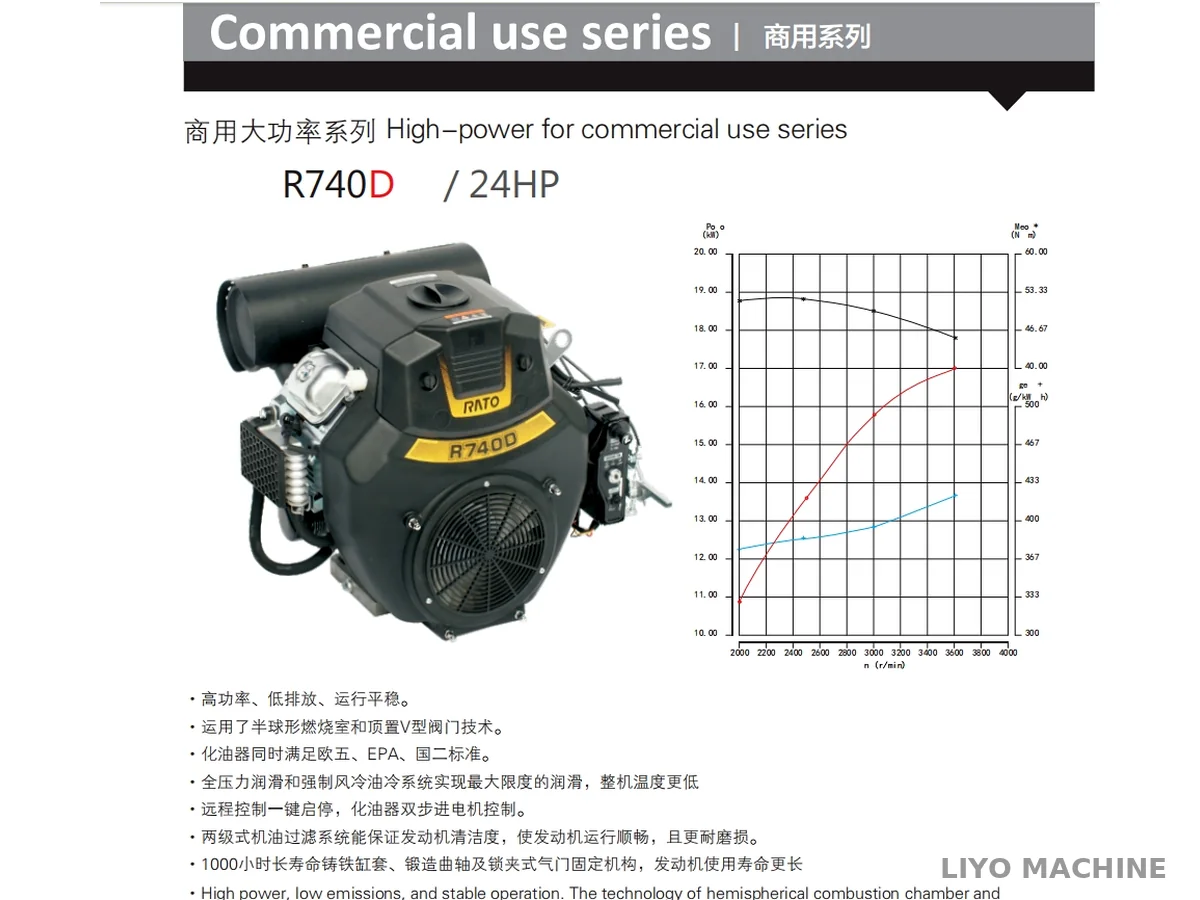

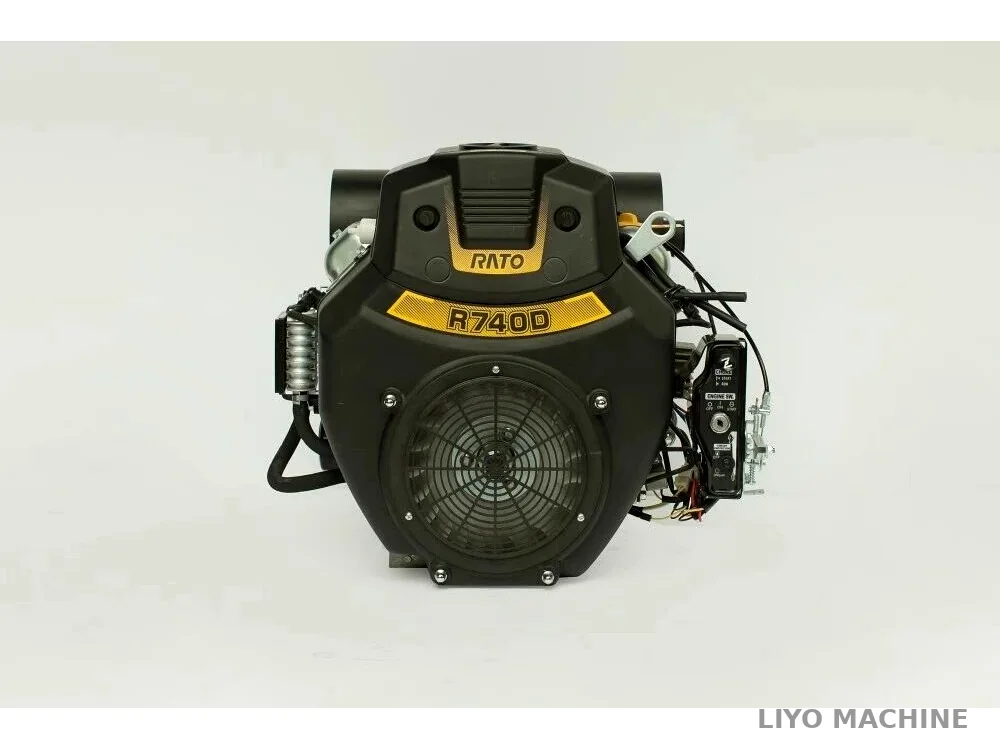

Commercial V-Twin OHV Gasoline Engine
The LY-150 EPA drilling machine is powered by the RATO R740D twin-cylinder four-stroke OHV gasoline engine. It provides reliable power, electric starting, stable operation and lower emissions for export markets.
Compared with traditional diesel engine configurations, the EPA gasoline version is easier for North American customers to import, fuel and maintain.
Ask About EPA Engine ConfigurationLY-150 EPA Drilling Machine Parameters
The drilling structure follows the proven LY-150 single hydraulic water well drilling machine, with the engine upgraded to a 24HP EPA gasoline configuration.
| Item | Specification |
|---|---|
| Model | LY-150 EPA |
| Drilling Depth | 100-150m |
| Hole Diameter | 50-250mm |
| Drill Pipe Diameter | 42mm / 50mm |
| Drill Pipe Length | 1.5m |
| Hydraulic System | Single hydraulic system |
| Engine Model | RATO R740D |
| Engine Power | 24HP / 16.8kW @ 3600rpm |
| Fuel Type | Gasoline |
| Certification | EPA / Euro 5 |
| Application | Farm irrigation wells, residential wells, borehole drilling and geological survey projects |

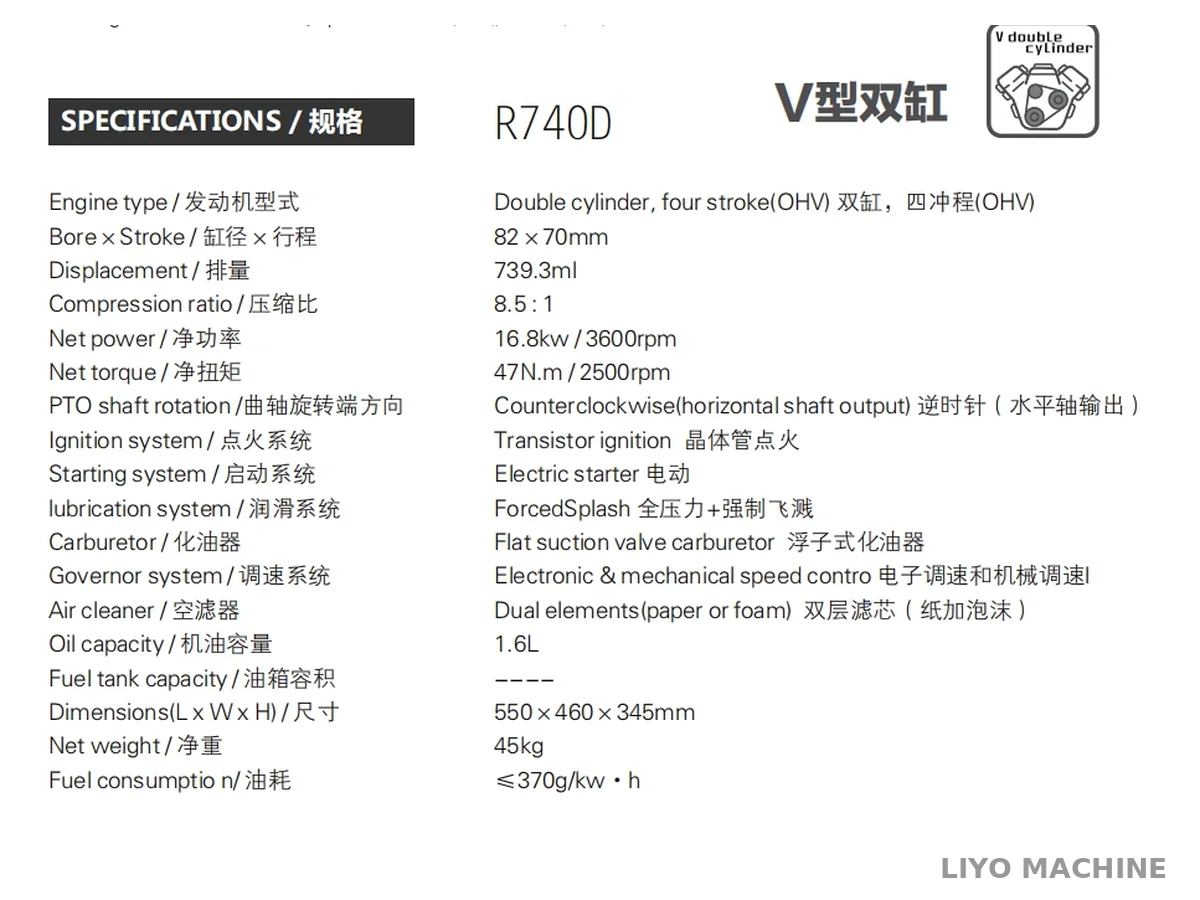

RATO R740D EPA Gasoline Engine Specifications
| Engine Parameter | Specification |
|---|---|
| Engine Type | Double cylinder, four stroke OHV |
| Bore × Stroke | 82 × 70mm |
| Displacement | 739.3ml |
| Compression Ratio | 8.5 : 1 |
| Net Power | 16.8kW / 3600rpm |
| Net Torque | 47N.m / 2500rpm |
| Starting System | Electric start |
| Lubrication System | Forced splash lubrication |
| Air Cleaner | Dual elements, paper or foam |
| Oil Capacity | 1.6L |
| Dimensions | 550 × 460 × 345mm |
| Net Weight | 45kg |
| Fuel Consumption | ≤370g/kW·h |
Better Choice for North American Buyers
The LY-150 EPA gasoline version is suitable for importers, rental companies, farms and drilling contractors in markets where gasoline engine emission compliance matters.
Lower Export Barrier
EPA engine configuration helps meet North American import requirements.
Easy Fuel Supply
Gasoline is widely available in farms, towns and remote job sites.
Applications of LY-150 EPA Gasoline Drilling Machine
Designed for small and medium water well drilling projects in North America and other markets requiring gasoline power.
Farm Irrigation Wells
Water source drilling for farms, orchards and irrigation systems.
Residential Water Wells
Suitable for household boreholes and private water supply projects.
Small Contractor Projects
Wheel-mounted structure supports flexible job site movement.
Garden Irrigation
Water supply drilling for landscaping and garden irrigation projects.
Geological Survey
Can be used for shallow geological survey and exploration drilling.
North America Market
EPA configuration is suitable for customers in the USA and Canada.

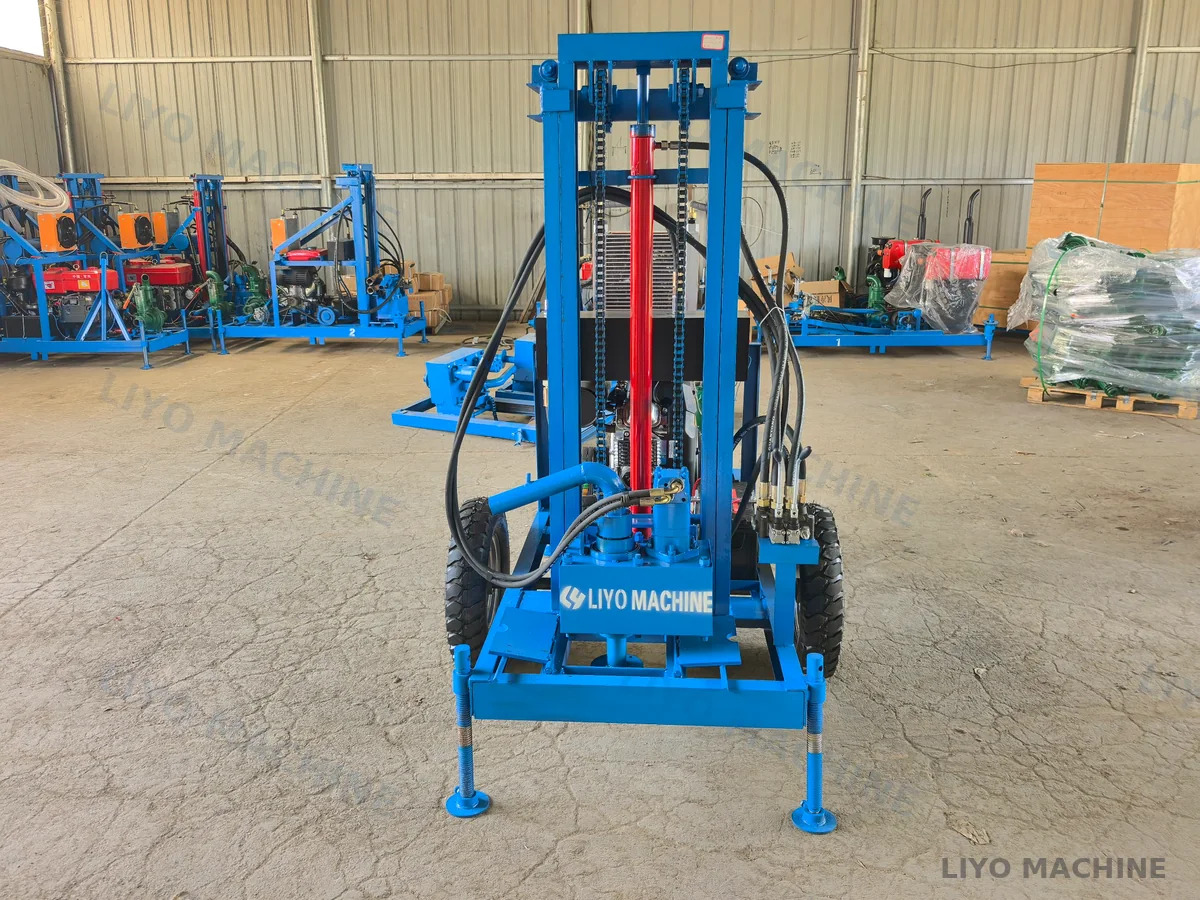

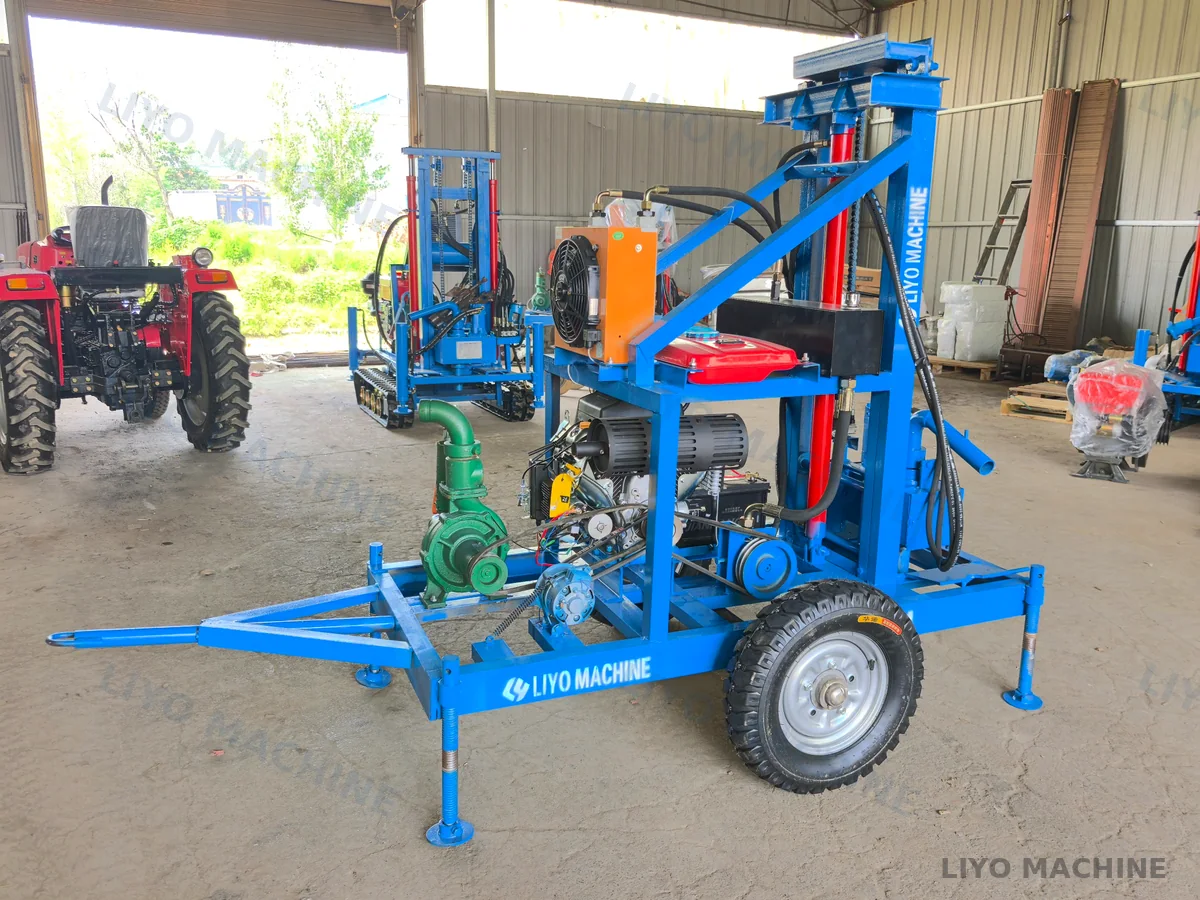

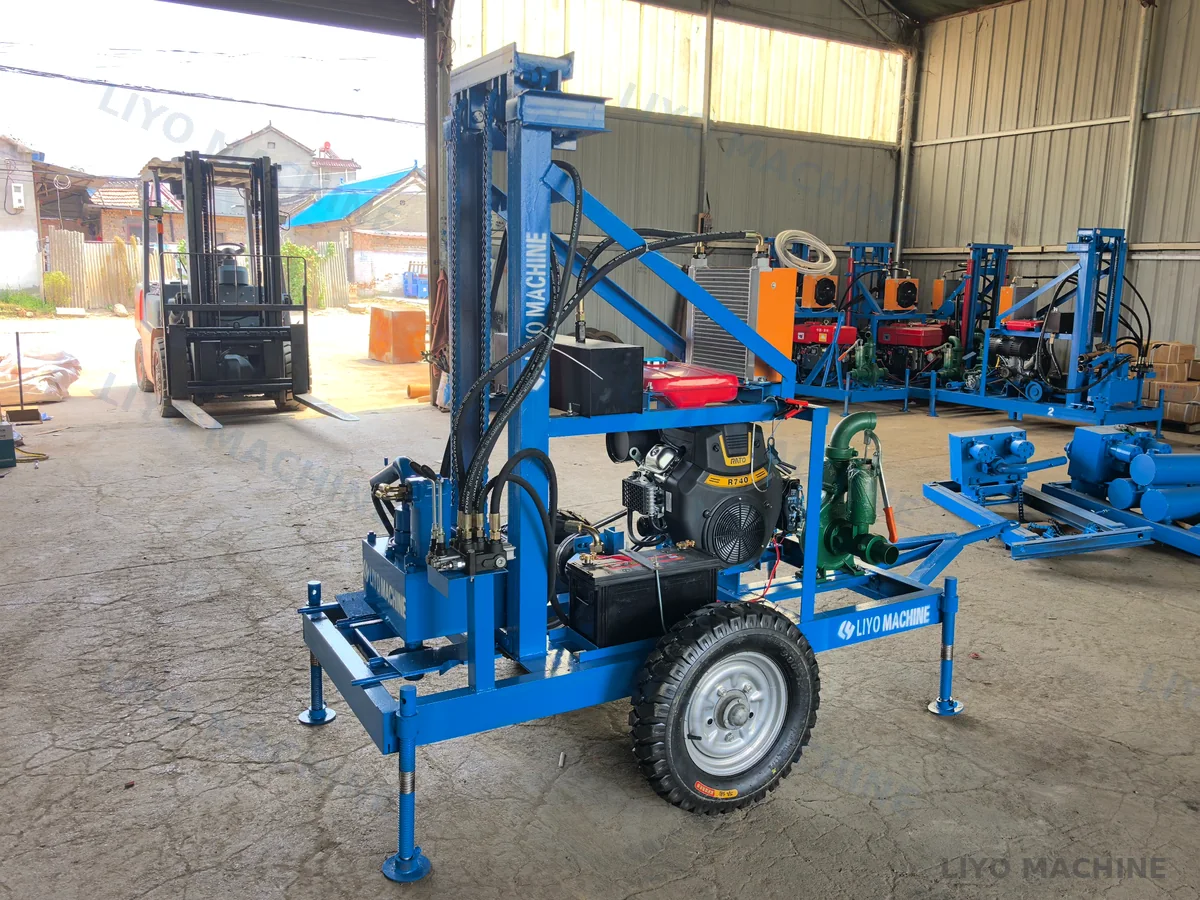

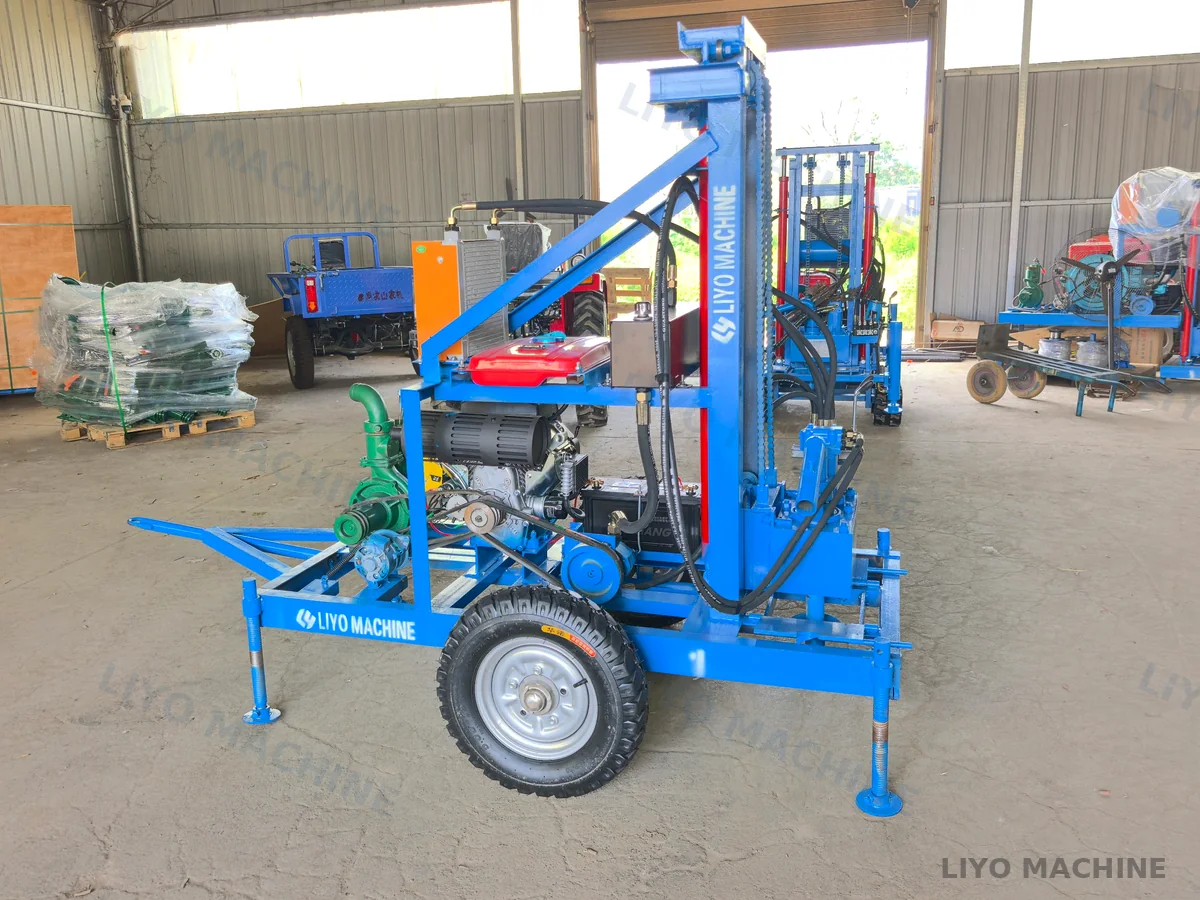

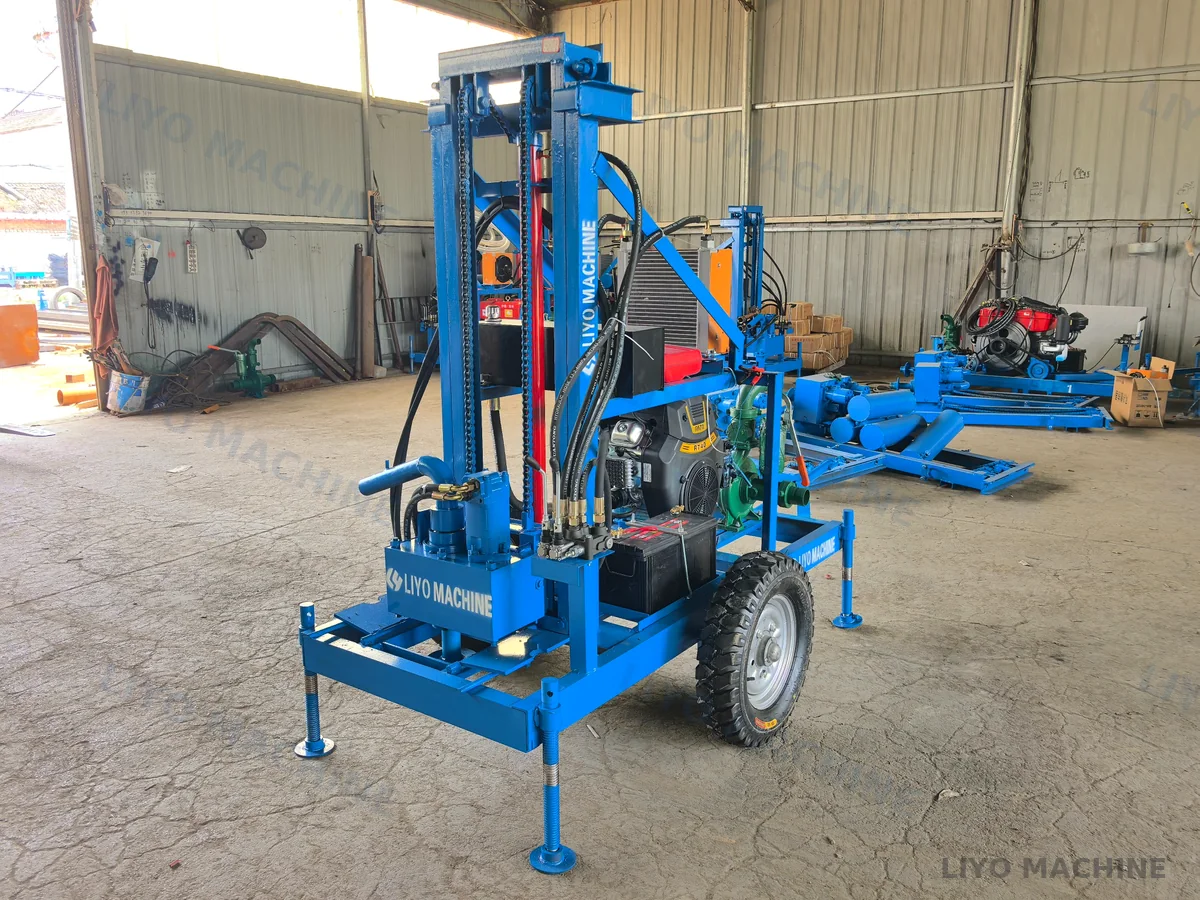

LY-150 EPA Product Photos
Frequently Asked Questions
Is the LY-150 EPA machine suitable for the United States?
Yes. It uses an EPA and Euro 5 certified gasoline engine configuration for markets with emission compliance requirements.
Is the drilling capacity the same as the diesel LY-150?
Yes. The drilling structure is based on the LY-150 single hydraulic machine. The main difference is the EPA gasoline engine configuration.
What is the engine model?
The engine is RATO R740D, a 24HP double-cylinder four-stroke OHV gasoline engine.
What projects is this model suitable for?
It is suitable for farm irrigation wells, residential water wells, garden irrigation and small drilling contractor projects.
Compare Other LIYO Drilling Machines
Need an EPA Gasoline Drilling Machine?
Send us your drilling depth, hole diameter, local market and engine requirement. LIYO Machinery will recommend a suitable EPA gasoline drilling machine configuration.
