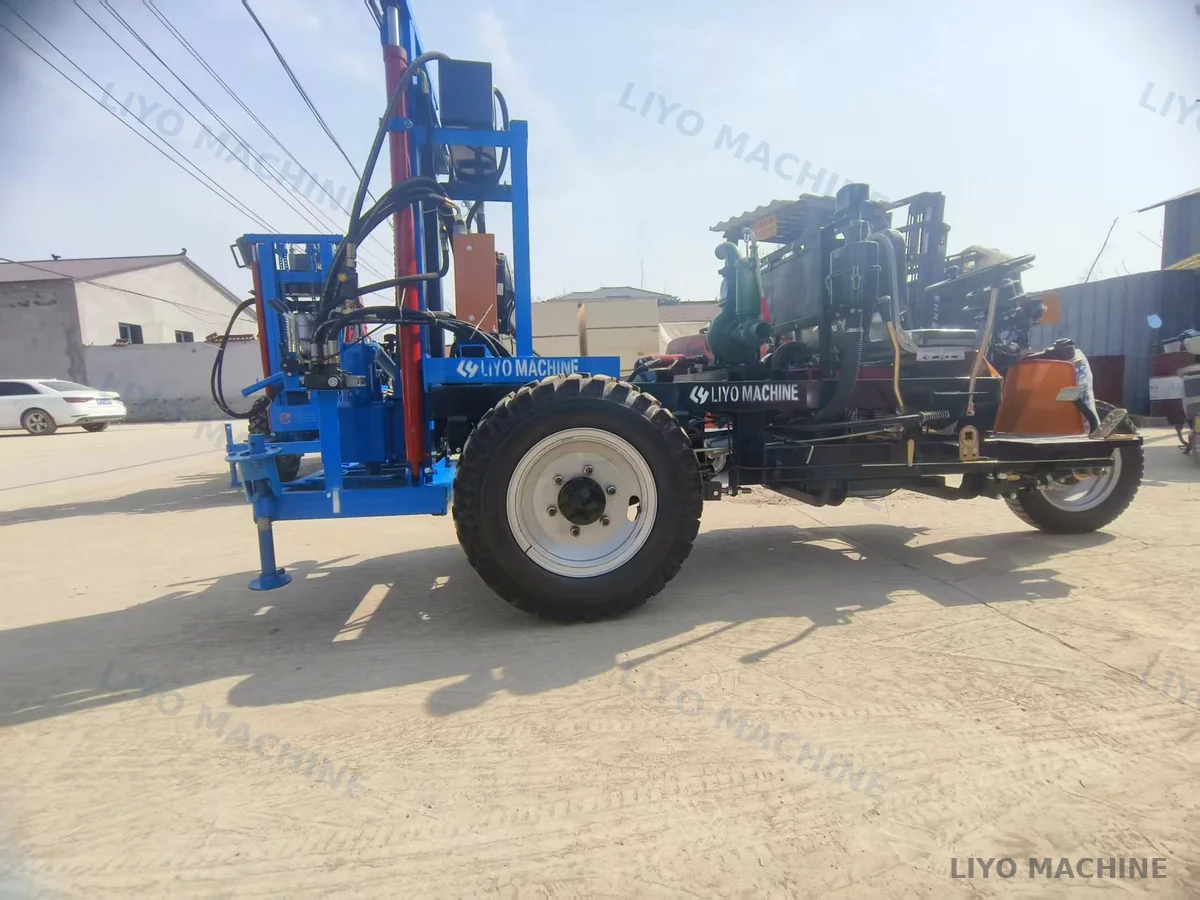

LY-200-3T Diesel Tricycle Water Well Drilling Rig
One 32HP diesel engine powers both driving and drilling, reducing fuel consumption while providing a larger cargo platform for drill rods and tools.
One Diesel Engine for Transportation and Drilling
Unlike ordinary tricycle drilling rigs with separate engines, the LY-200-3T Diesel uses one 32HP diesel engine to power both the tricycle drive and the drilling system. This reduces fuel consumption, simplifies maintenance and leaves more space for carrying drill pipes.
Single Diesel Engine
One engine powers both movement and drilling, reducing spare parts and operation cost.

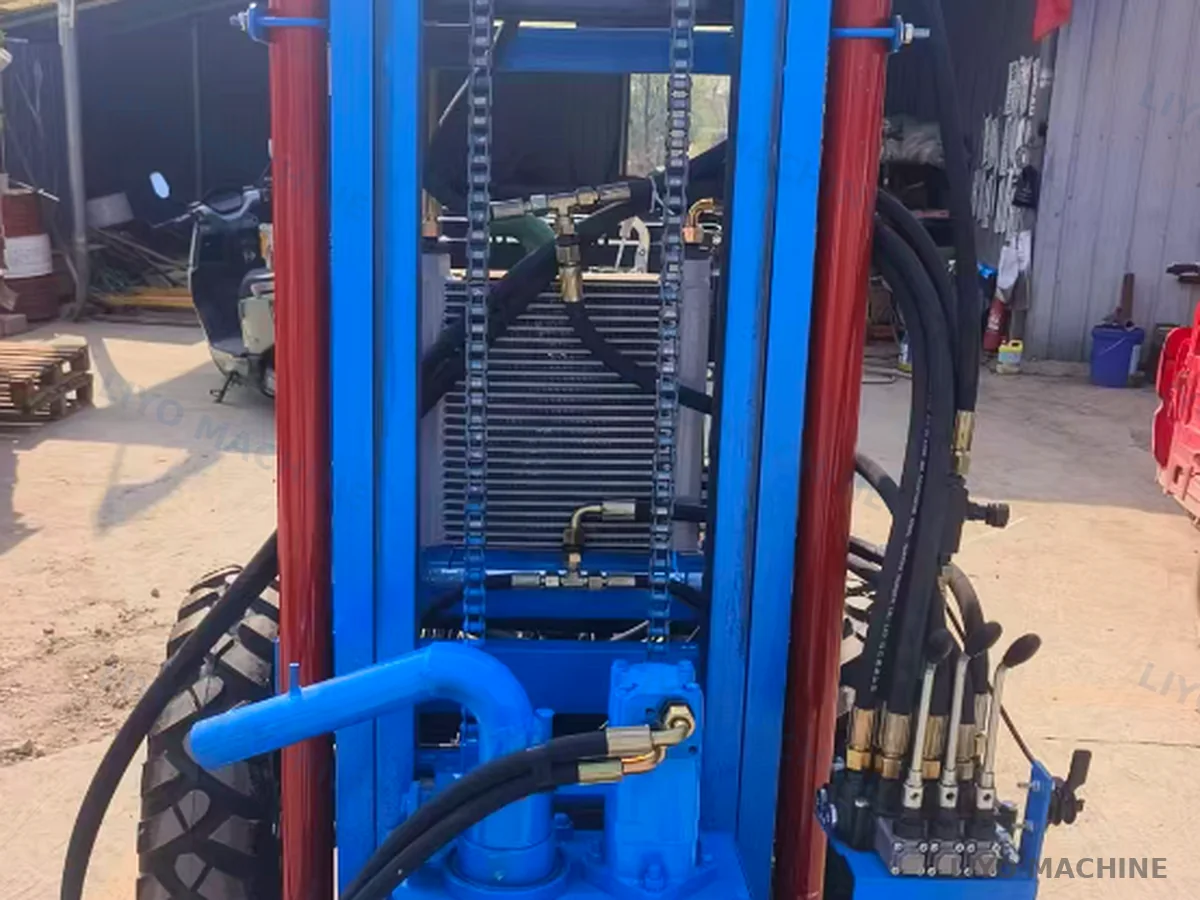

Dual Hydraulic System
Stable rotary drive and lifting performance for 200m water well drilling projects.
650×16 Truck Tires
Deep tread truck tires provide better traction on rural roads and hilly areas.
Large Cargo Platform
More space to carry drill rods, drill bits, tools and drilling accessories together.
Heavy-duty Tires and Steering Wheel Driving

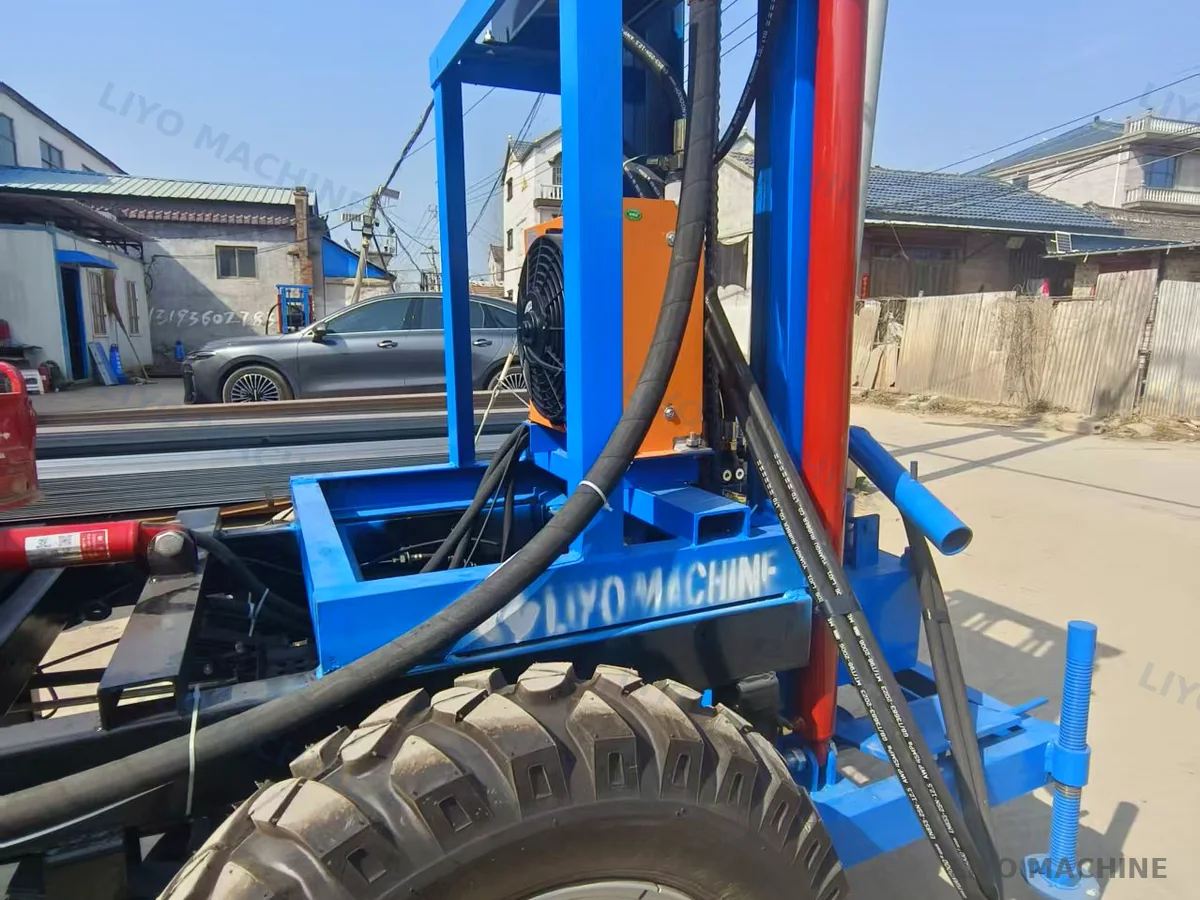

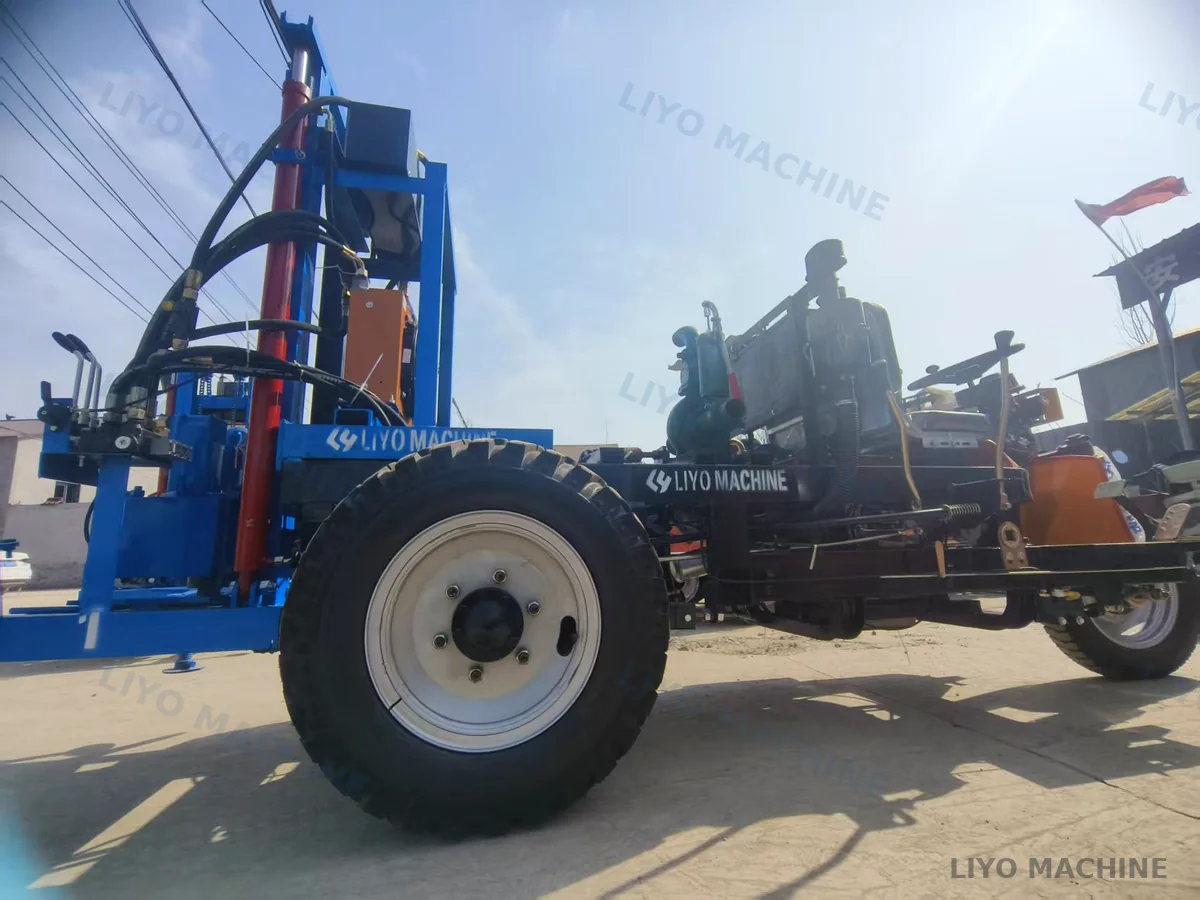

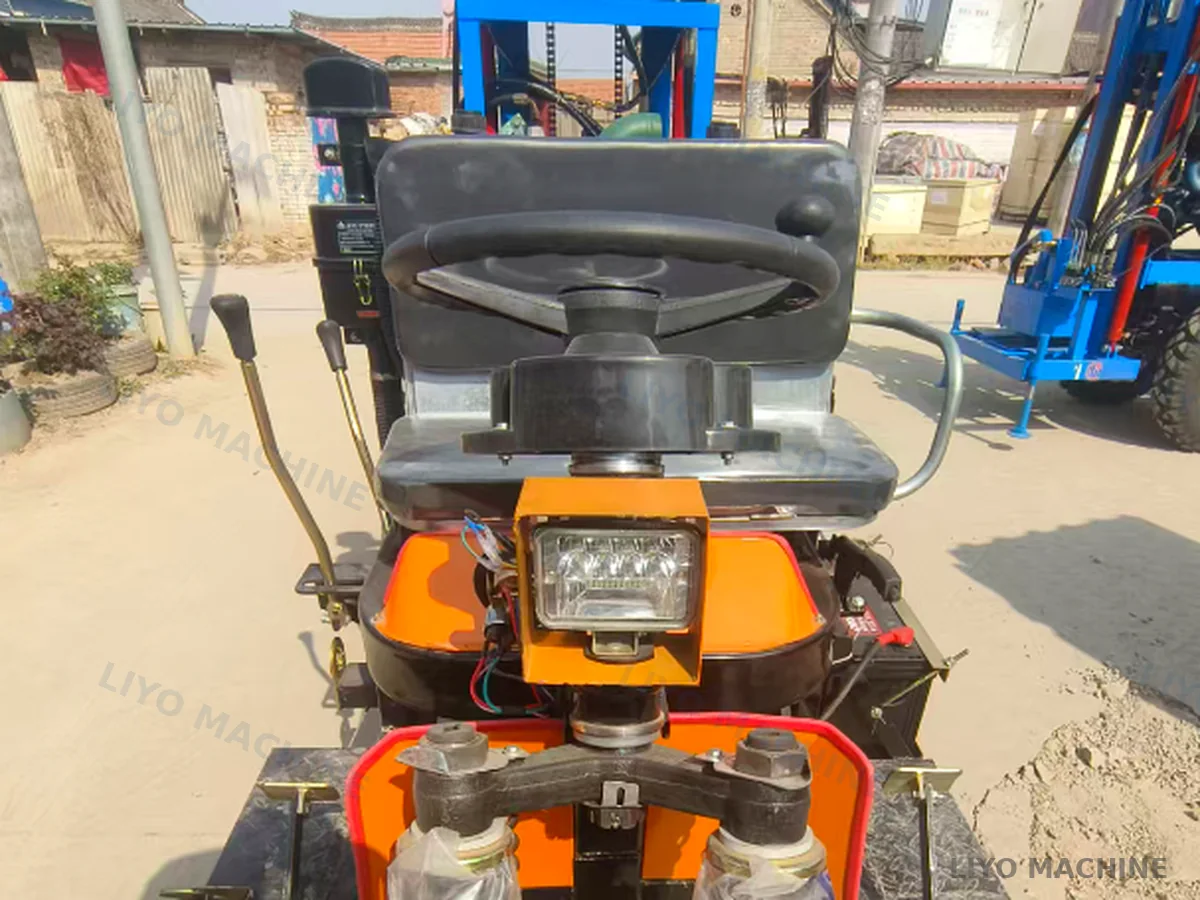

The diesel tricycle model uses large 650×16 truck tires with deep tread, making it suitable for gravel roads, village roads and hilly terrain. The steering wheel design is easier to operate than handlebar-style steering and is suitable for both left-hand and right-hand traffic markets.
The dual-seat layout allows the driver and assistant to travel together, which is practical for rural drilling teams carrying rods and tools between job sites.
LY-200-3T Diesel Tricycle Drilling Rig Parameters
| Item | Specification |
|---|---|
| Model | LY-200-3T Diesel |
| Product Type | Diesel Tricycle Water Well Drilling Rig |
| Engine | 32HP diesel engine |
| Driving and Drilling Power | One diesel engine powers both tricycle driving and drilling system |
| Hydraulic System | Dual hydraulic system |
| Drilling Depth | 200m |
| Customizable Depth | Up to 250m |
| Drill Pipe | 51mm × 1.5m |

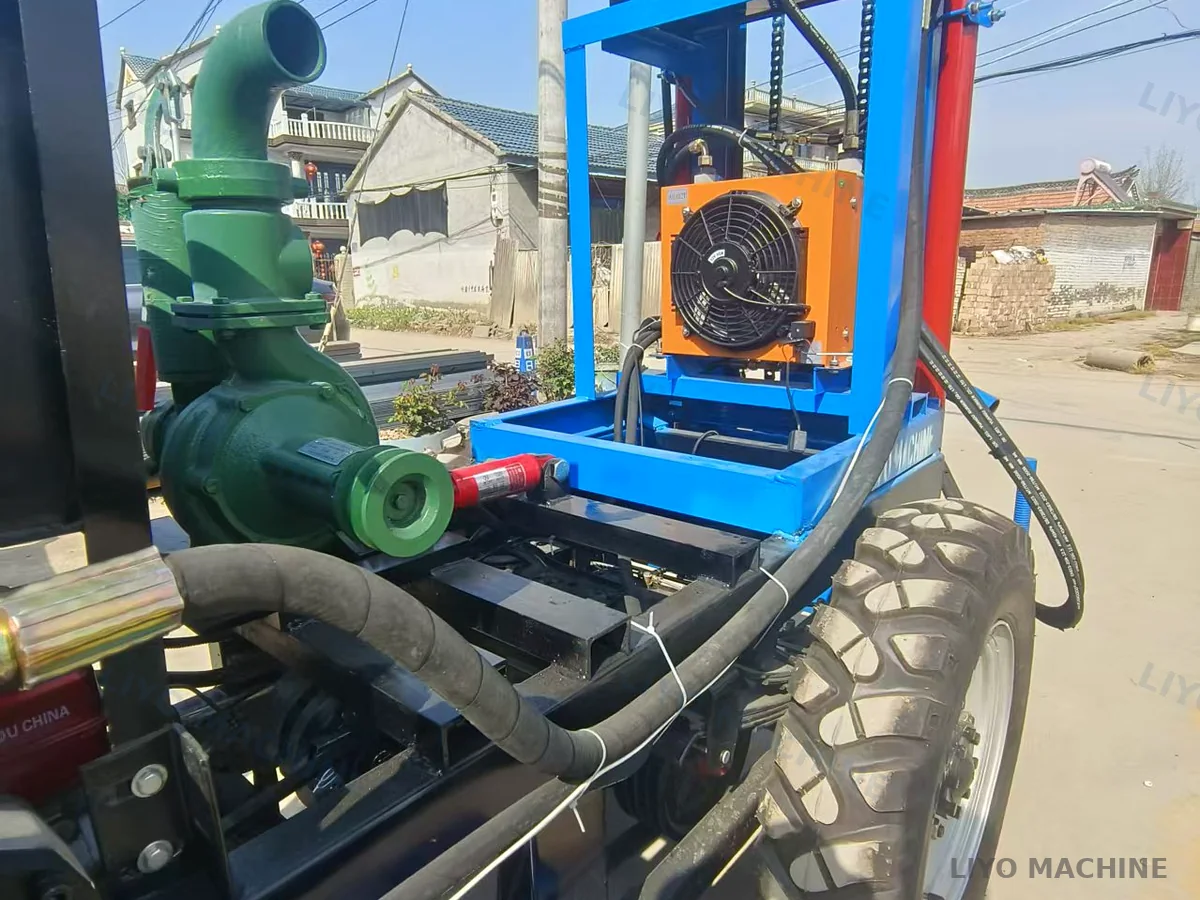

| Mud Pump | 3 inch centrifugal pump |
| Torque | 1000 N.m |
| Lifting Force | 6T |
| Tire Size | 650×16 truck tires |
| Steering | Steering wheel |
| Seat Layout | Dual seat |
| Machine Size | 3500 × 1200 × 2200mm |
Which Tricycle Drilling Rig Should You Choose?
| Item | Diesel Tricycle Rig | Gasoline Tricycle Rig |
|---|---|---|
| Power Design | One diesel engine for driving and drilling | Separate tricycle drive and drilling engine |
| Fuel Economy | Better for long working hours | Convenient for lighter operation |
| Cargo Space | Larger drill rod carrying platform | Compact and flexible |
| Tires | 650×16 heavy-duty truck tires | Standard tricycle tire layout |
| Best Use | Africa rural roads, hilly areas, contractor use | Short-distance rural projects and lighter mobility |
Designed for Rural Contractors and Village Water Projects
The LY-200-3T Diesel is suitable for soft to medium soil formations, farmland irrigation wells, community water supply and rural contractors who need to move tools and drill rods between villages.
Village Water Supply
Mobile drilling for rural drinking water projects and community boreholes.
Farm Irrigation
Suitable for farmland, orchards and agricultural water source drilling.
Hilly Areas
Deep-tread truck tires improve movement on uneven rural roads.
Drilling Contractors
Carry rods and tools on the same machine for faster jobsite transfer.
LY-200-3T Diesel Product Photos
Frequently Asked Questions
Can one diesel engine power both driving and drilling?
Yes. This model uses one 32HP diesel engine to power both the tricycle movement and the drilling hydraulic system.
Why is the diesel version more fuel-saving?
Because it does not require a separate drive engine and drilling engine. One diesel engine reduces fuel use, spare parts and maintenance complexity.
Can it carry drill pipes?
Yes. The diesel layout provides a larger cargo platform for carrying drill rods, drill bits, tools and accessories.
What road conditions is it suitable for?
It is suitable for rural roads, gravel roads, village roads and hilly areas, but not recommended for extremely muddy or swampy terrain.
Is it suitable for African countries?
Yes. It is designed around rural mobility, fuel economy and practical operation for African village and farmland water projects.
Compare Other LIYO Tricycle and Water Well Rigs
Need a Fuel-saving Tricycle Drilling Rig?
Send us your drilling depth, road condition, soil formation and target country. LIYO Machinery will recommend the suitable diesel or gasoline tricycle rig.
