LY-200 EPA Gasoline Water Well Drilling Machine
RATO R999 EPA & Euro 5 gasoline powered borehole drilling machine for North American farms, residential wells, irrigation projects and drilling contractors.
999cc RATO R999 Engine for North America
The LY-200 EPA model is positioned as a stronger gasoline version for customers requiring EPA-compliant drilling equipment and higher power than the LY-150 EPA configuration.
EPA Certified
Designed for USA and Canada customers who need compliant gasoline-powered drilling equipment.
999cc Displacement
Larger V-Twin OHV gasoline engine provides stronger torque and more stable drilling power.
Euro 5 Standard
Also supports markets that require Euro 5 emission compliant gasoline engine configuration.
V-Twin OHV EPA & Euro 5 Gasoline Engine
The LY-200 EPA model is equipped with the RATO R999 V-Twin gasoline engine. It delivers 24.5kW output and 68N.m torque, providing stronger power for borehole drilling projects.
This configuration is suitable for importers, contractors and agricultural users who require EPA and Euro 5 emission compliant gasoline equipment.
Ask About R999 EPA EngineLY-200 EPA Drilling Machine Parameters
The LY-200 EPA is a gasoline powered water well drilling machine designed around the 200m drilling class and North American EPA requirements.
| Item | Specification |
|---|---|
| Model | LY-200 EPA |
| Drilling Depth | Up to 200m |
| Hole Diameter | 70-350mm |
| Drill Pipe Diameter | 50mm / 60mm optional |
| Drill Pipe Length | 1.5m |
| Engine Model | RATO R999 |
| Engine Power | 24.5kW @ 3600rpm |
| Fuel Type | Gasoline |
| Certification | EPA / Euro 5 |
| Machine Type | Wheel mounted gasoline hydraulic water well drilling machine |
| Application | Farm irrigation wells, residential boreholes, rural water supply and contractor drilling projects |

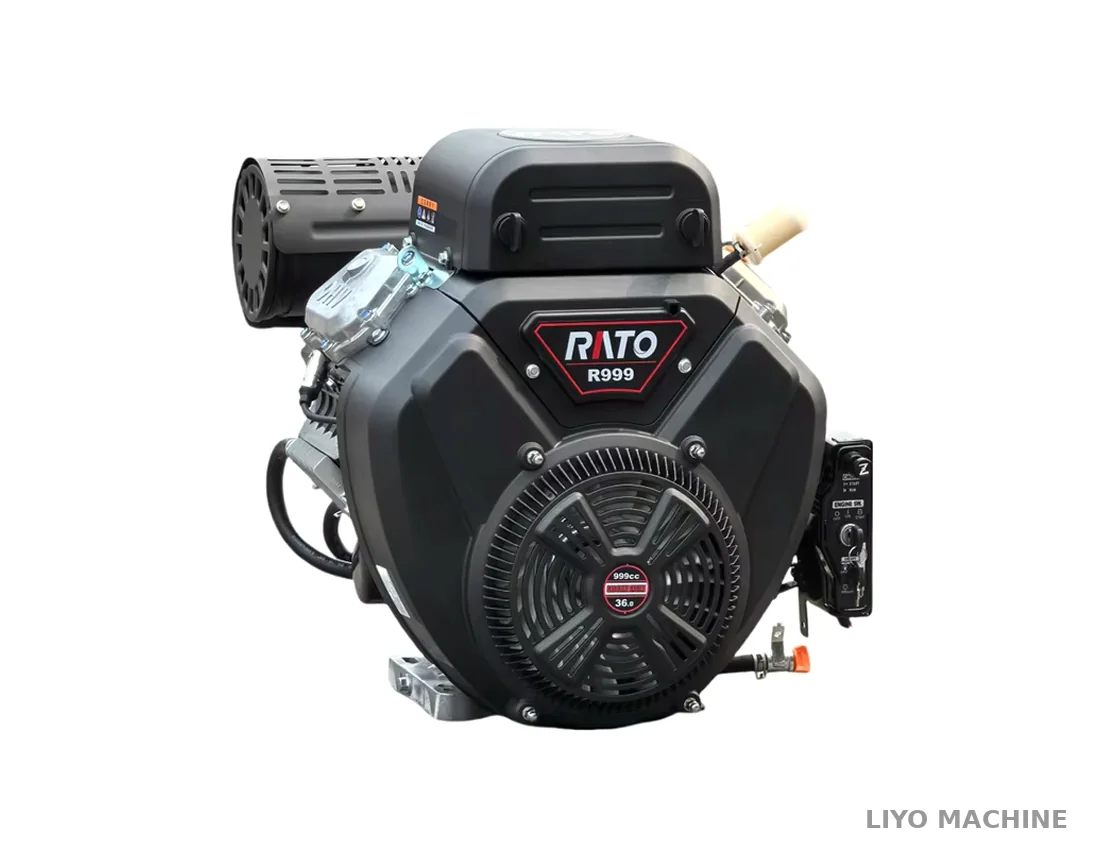

RATO R999 EPA Gasoline Engine Specifications
| Engine Parameter | Specification |
|---|---|
| Certification | Euro 5 / EPA |
| Engine Type | Double cylinder, four stroke OHV |
| Bore × Stroke | 90 × 78.5mm |
| Displacement | 999ml |
| Compression Ratio | 8.7 : 1 |
| Net Power | 24.5kW / 3600rpm |
| Net Torque | 68N.m / 2500rpm |
| Starting System | Electric starter |
| Dimensions | 510 × (385+96) × 558mm |
| Net Weight | 50kg |
| Fuel Consumption | ≤370g/kW·h |
Stronger Option Than LY-150 EPA
The LY-200 EPA is suitable when customers need a stronger gasoline drilling machine than the LY-150 EPA version. It keeps the same EPA and Euro 5 emission positioning while offering higher power and deeper drilling capability.
For Contractors
Suitable for users handling deeper boreholes and more frequent drilling jobs.
For Farms & Rural Wells
Gasoline fuel supply and EPA engine configuration are convenient for North American rural applications.
Applications of LY-200 EPA Gasoline Drilling Machine
Designed for deeper agricultural, residential and contractor water well drilling projects requiring EPA gasoline power.
Farm Irrigation Wells
Water source drilling for farms, ranches, orchards and agricultural irrigation.
Residential Water Wells
Domestic borehole drilling for private homes and rural water supply.
Small Contractor Projects
Wheel-mounted design supports flexible movement between job sites.
North America Market
EPA gasoline configuration helps support import and local operation requirements.
Geological Survey
Suitable for shallow and medium-depth geological investigation projects.
Remote Areas
Gasoline power is easy to fuel and service in rural construction areas.

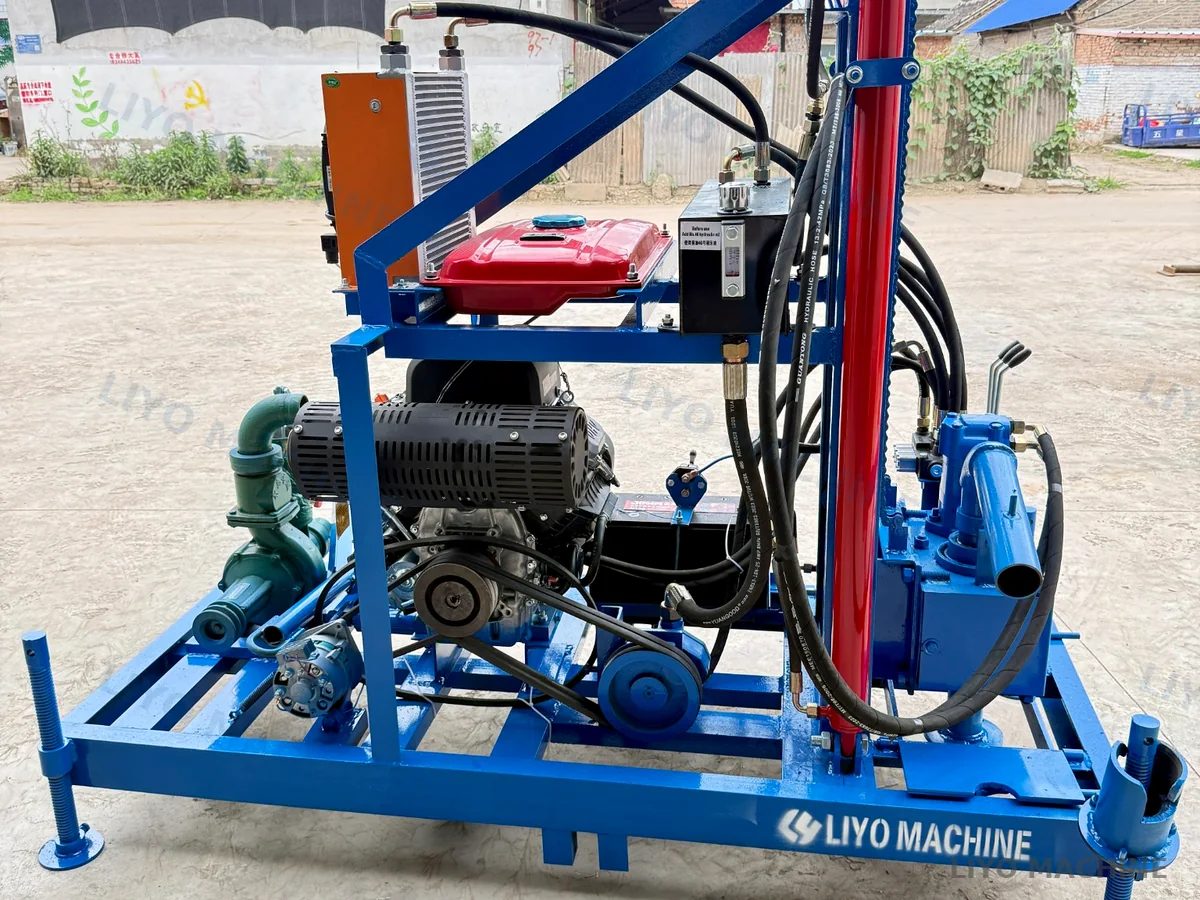

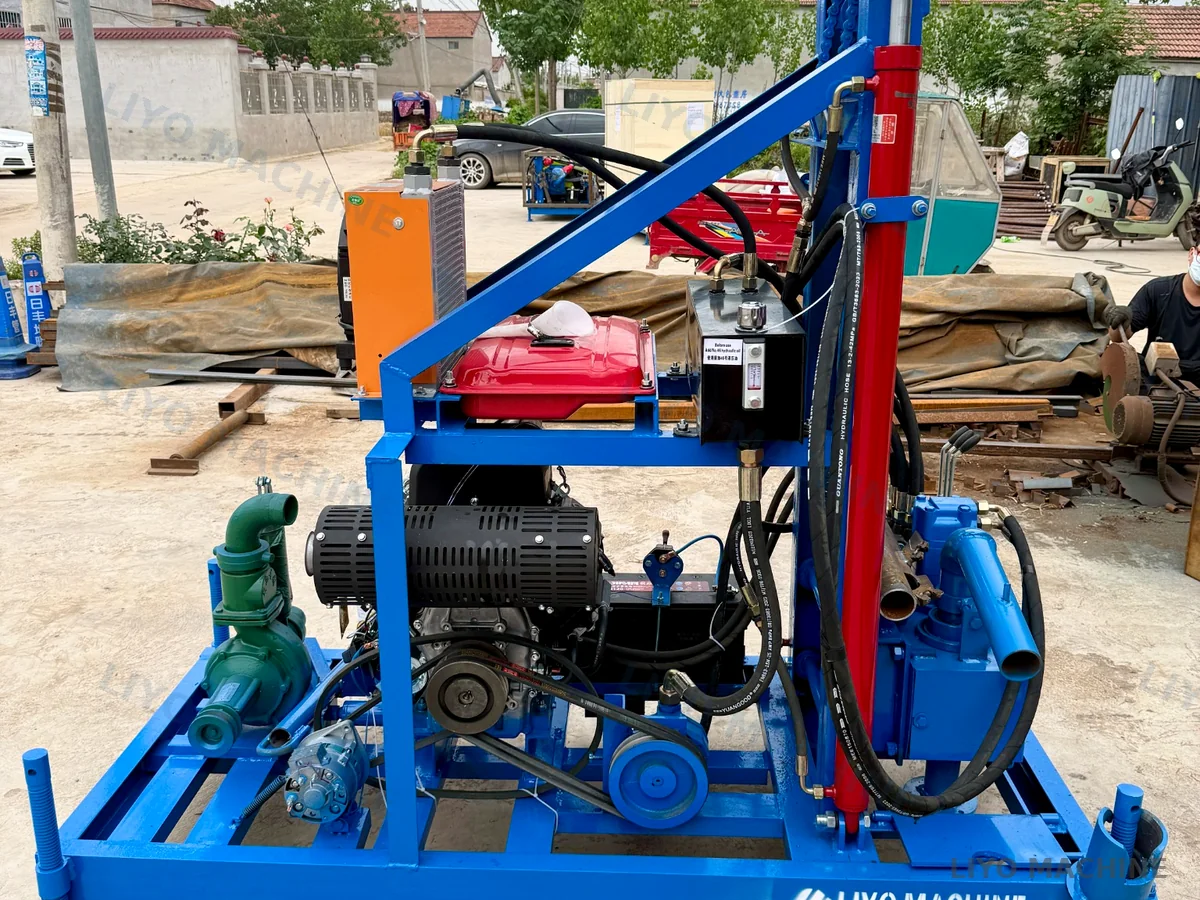

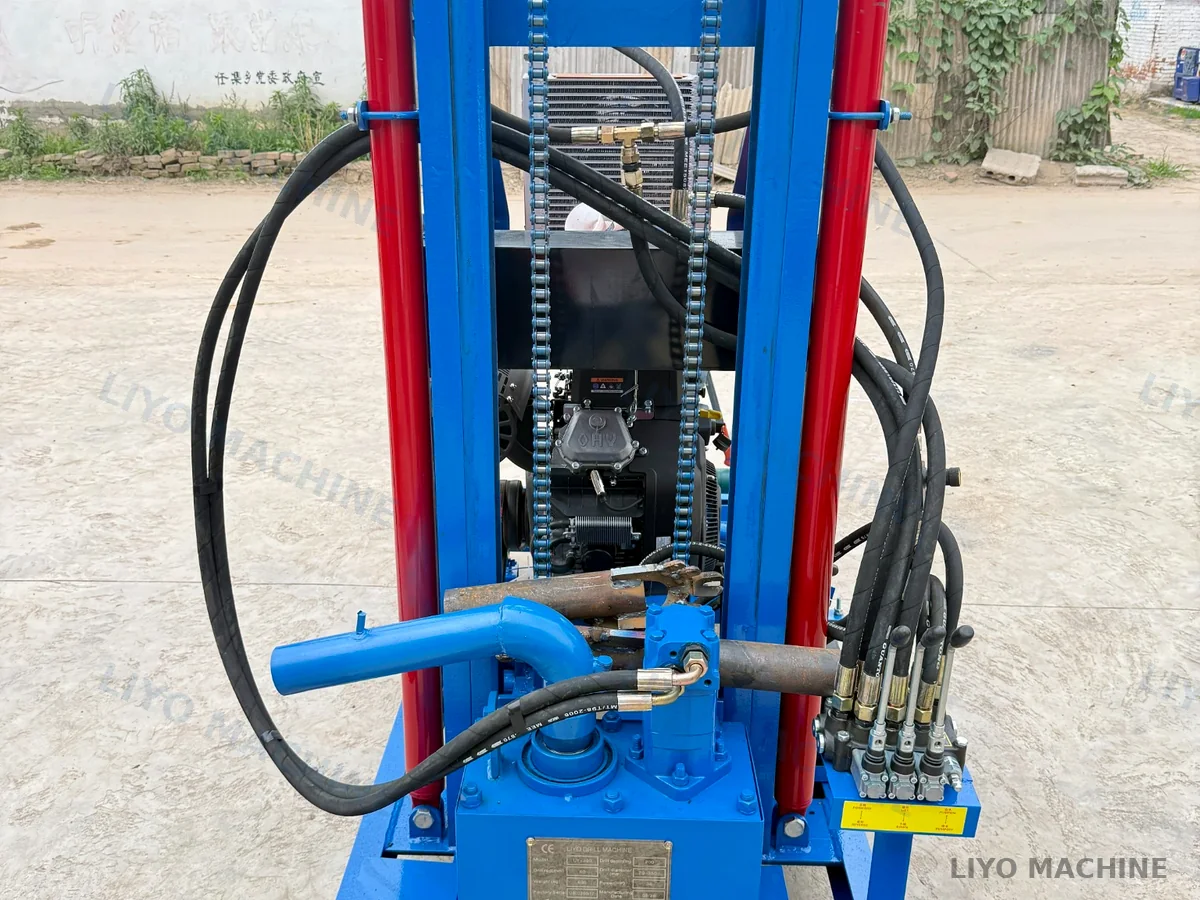

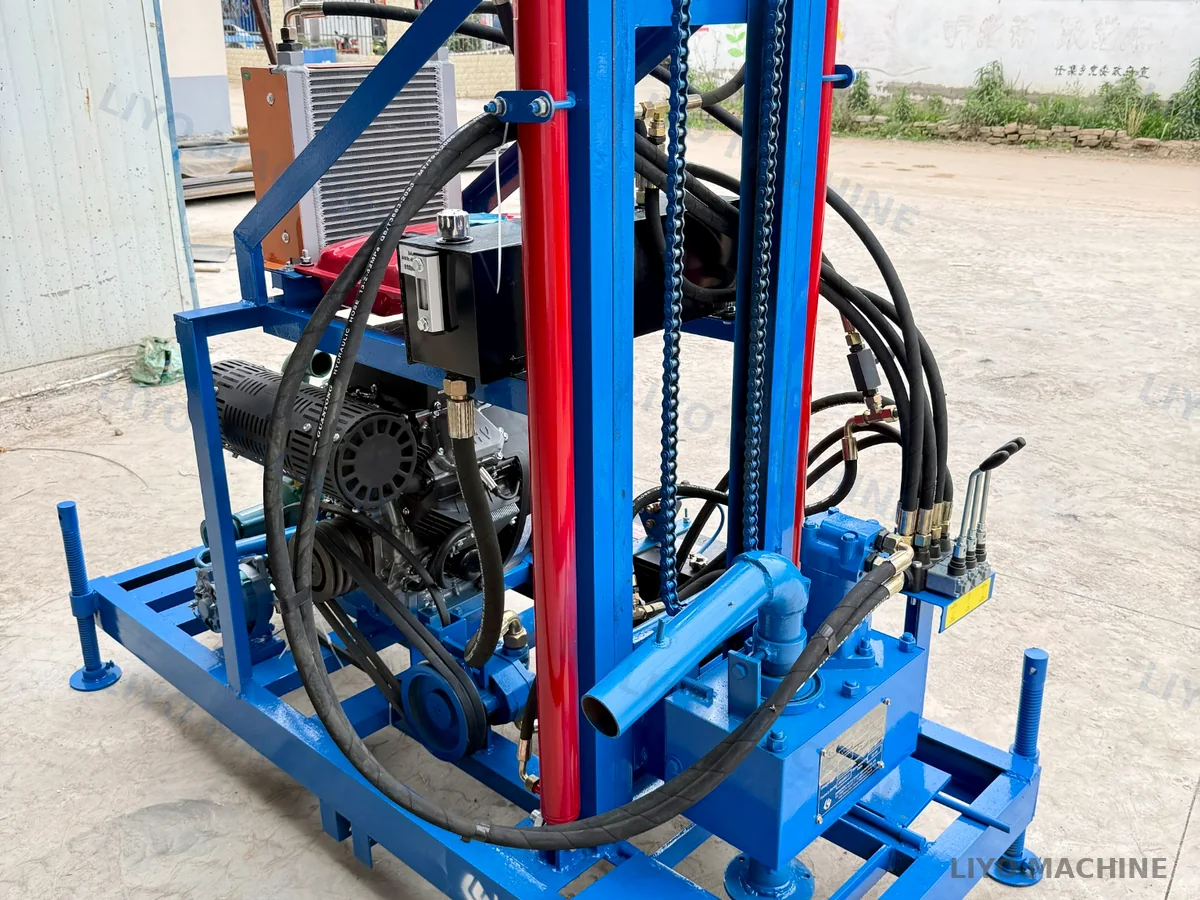

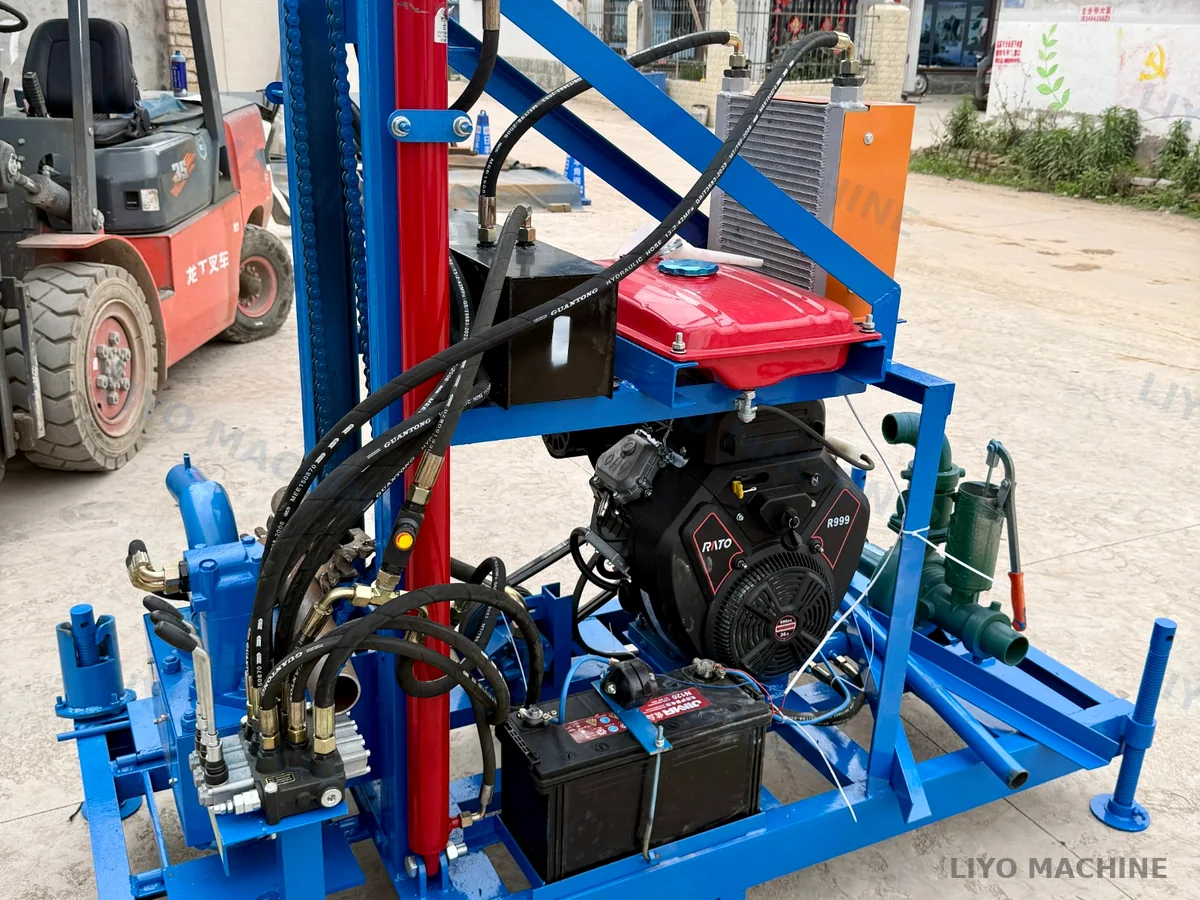

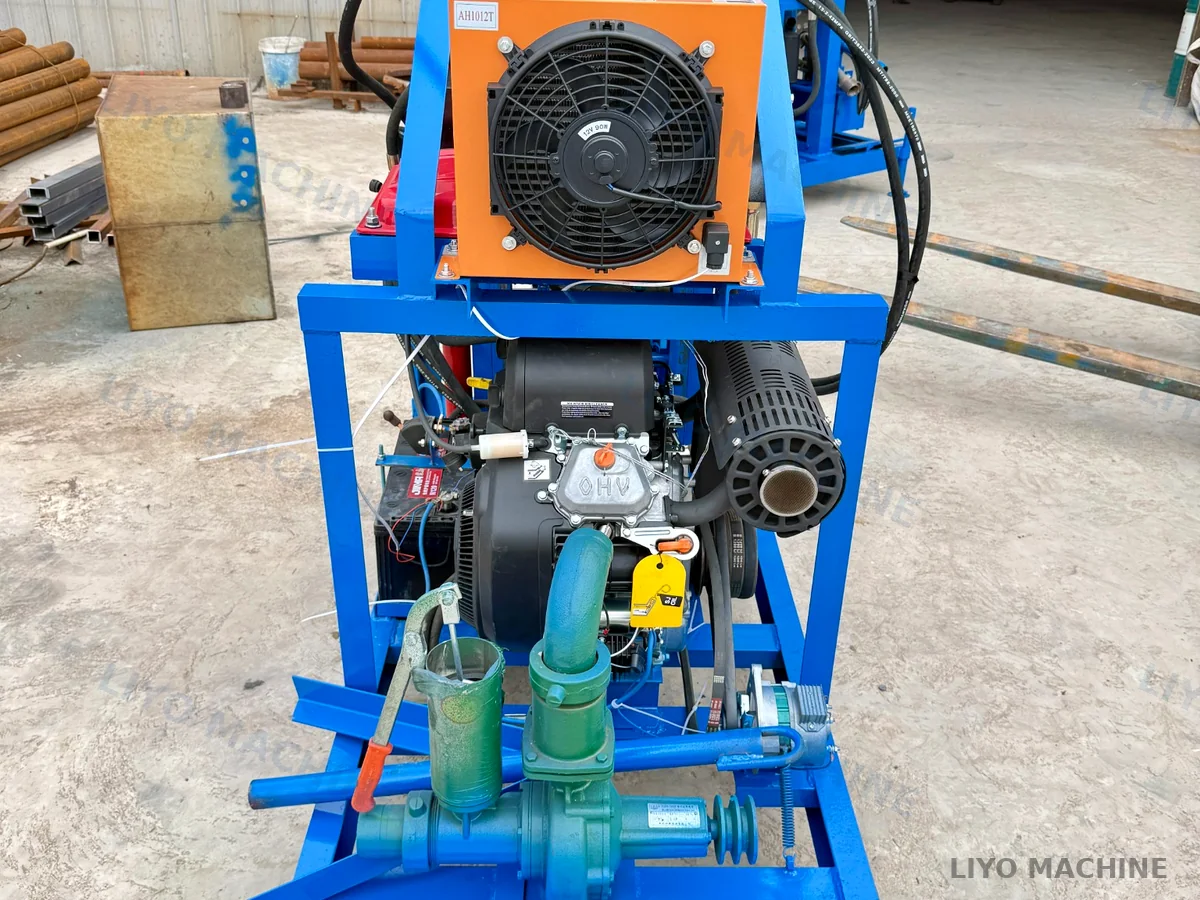

LY-200 EPA Product Photos
Frequently Asked Questions
Is the LY-200 EPA suitable for the United States?
Yes. It uses an EPA and Euro 5 compliant RATO R999 gasoline engine configuration for markets requiring emission compliance.
What is the difference between LY-150 EPA and LY-200 EPA?
LY-200 EPA uses a stronger R999 gasoline engine and is positioned for deeper drilling and heavier contractor applications.
What engine does this machine use?
It uses a RATO R999 double-cylinder four-stroke OHV gasoline engine with 999ml displacement and 68N.m torque.
What projects is this machine suitable for?
It is suitable for farm irrigation wells, residential water wells, rural boreholes and small to medium contractor projects.
Compare Other LIYO EPA and Water Well Machines
Need a Stronger EPA Gasoline Drilling Machine?
Send us your drilling depth, hole diameter, geology and target market. LIYO Machinery will recommend LY-150 EPA, LY-200 EPA or another suitable configuration.
