LY-150 Water Well Drilling Machine
LY-150 is a wheeled hydraulic borehole drilling rig designed for 100-150m water well projects. It is suitable for farmland irrigation, civilian water wells, geological survey and small grouting hole drilling.

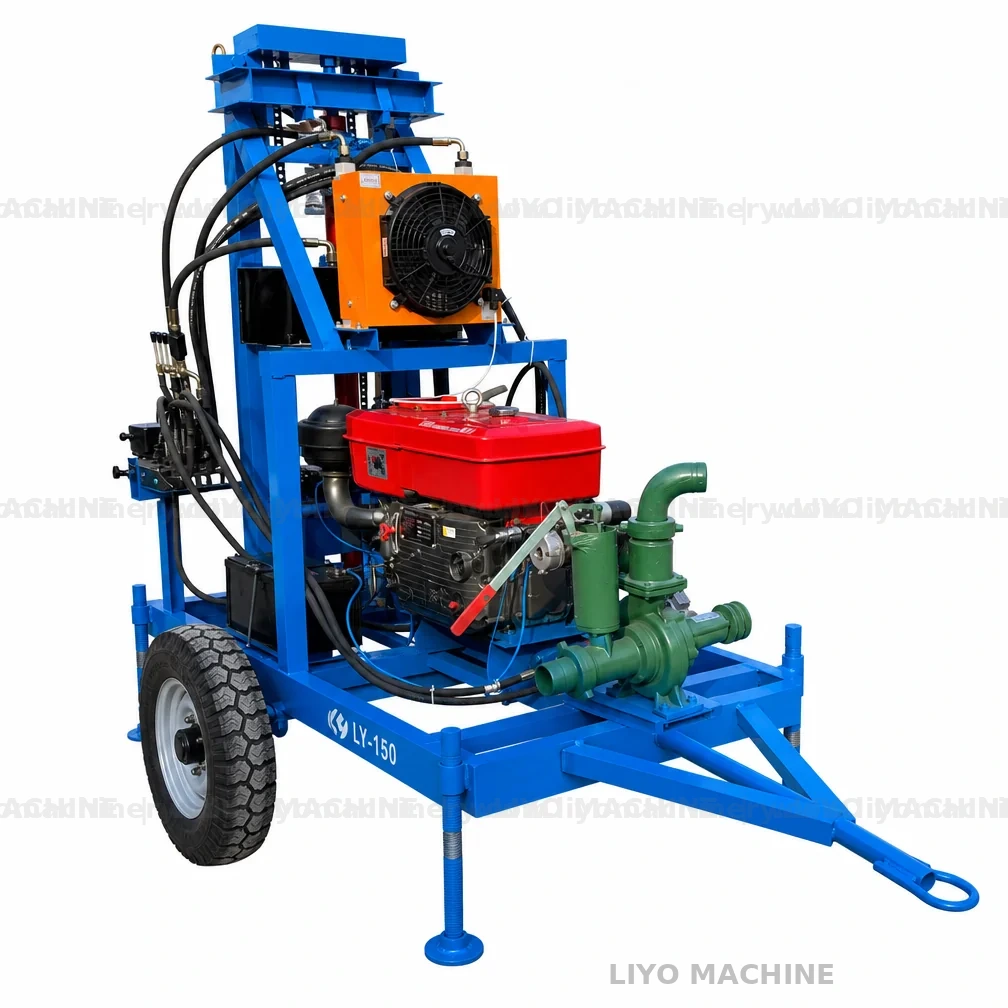

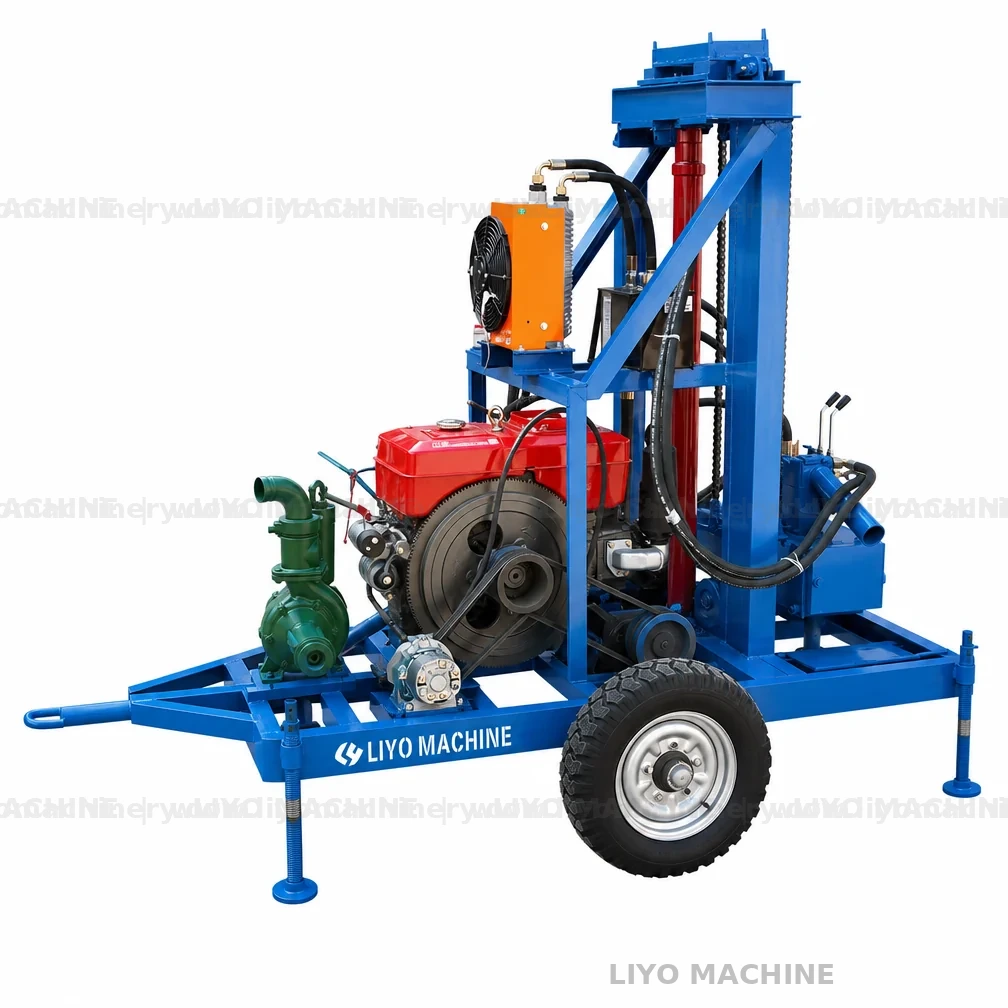

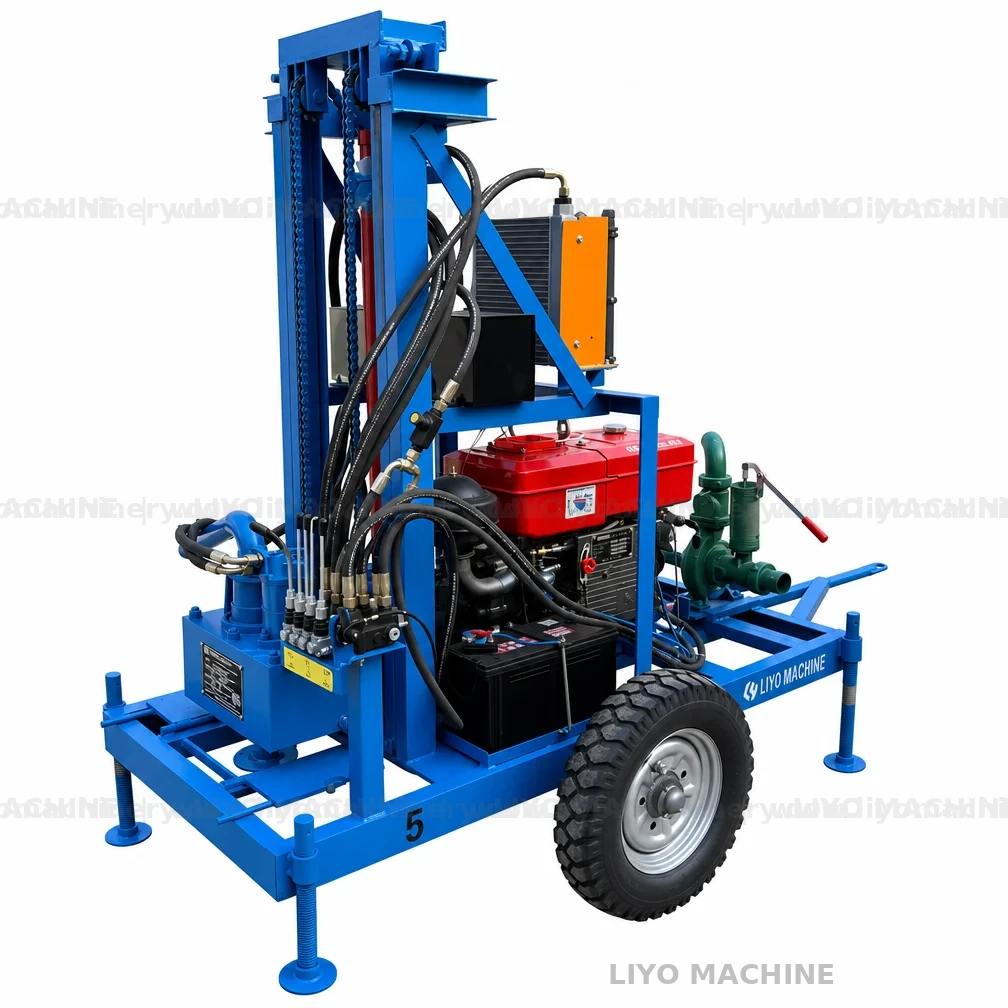

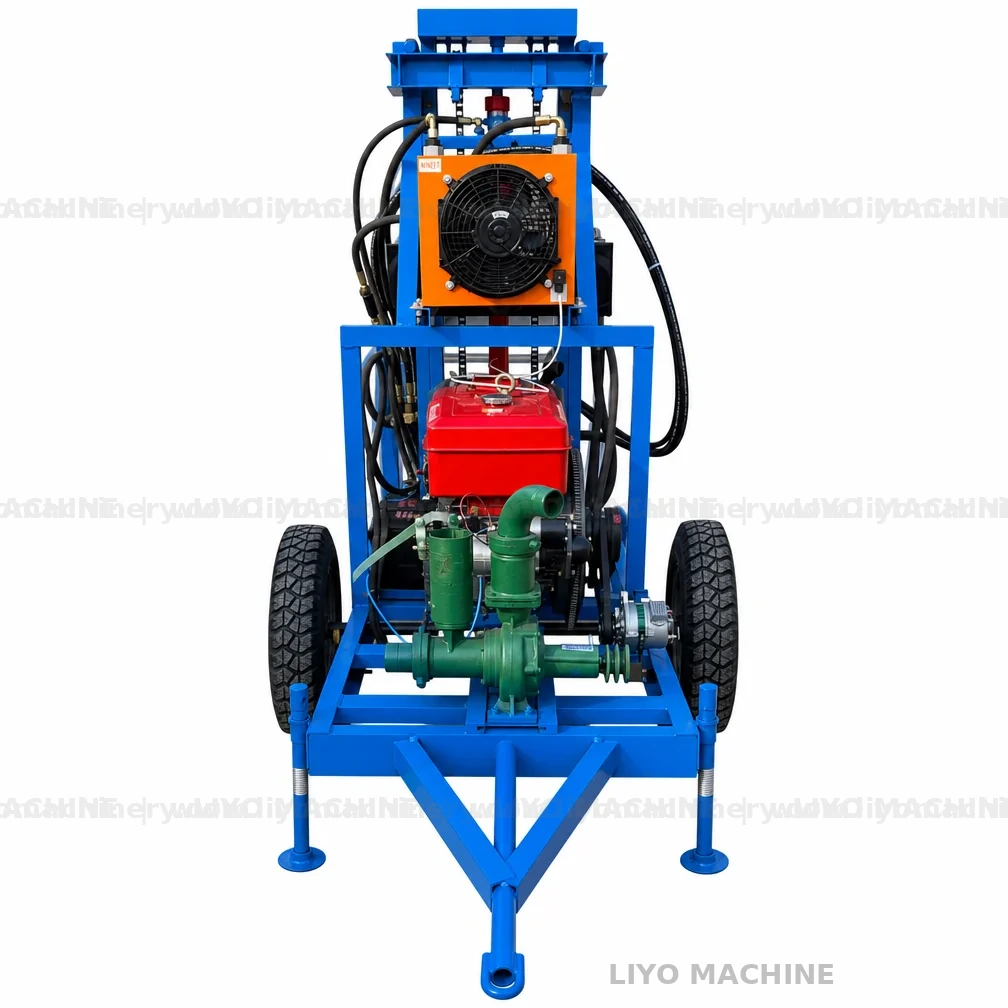

Clean Industrial Product Presentation
White-background product photos help global buyers clearly check machine structure, engine layout, dual-tire chassis, hydraulic system and integrated water pump.
Six Advantages Of LY-150 Wheeled Hydraulic Drilling Rig
Premium Certified High-Output Engine
- Internationally certified diesel engine
- High torque output
- Fuel-efficient operation
- 22-35 HP power range
Heavy-Duty Automobile Tires
- Automobile-grade pneumatic tires
- Dual-wheel mobility
- Suitable for farmland and rough terrain
- Easy transportation
Reinforced Thickened Steel Structure
- Heavy-duty steel frame
- Anti-deformation design
- Long service life
- Improved drilling stability
Rapid Drilling Speed
- Hydraulic cylinder lifting
- Dual-chain synchronization
- Efficient penetration
- Reduced labor cost
Integrated Mud Slurry Pump
- Factory-integrated water pump
- Stable mud circulation
- Better slag discharge
- Prevents bit jamming
Flexible Traction Support
- Towable by SUV
- Towable by pickup
- Towable by tractor
- Maximum speed below 25km/h

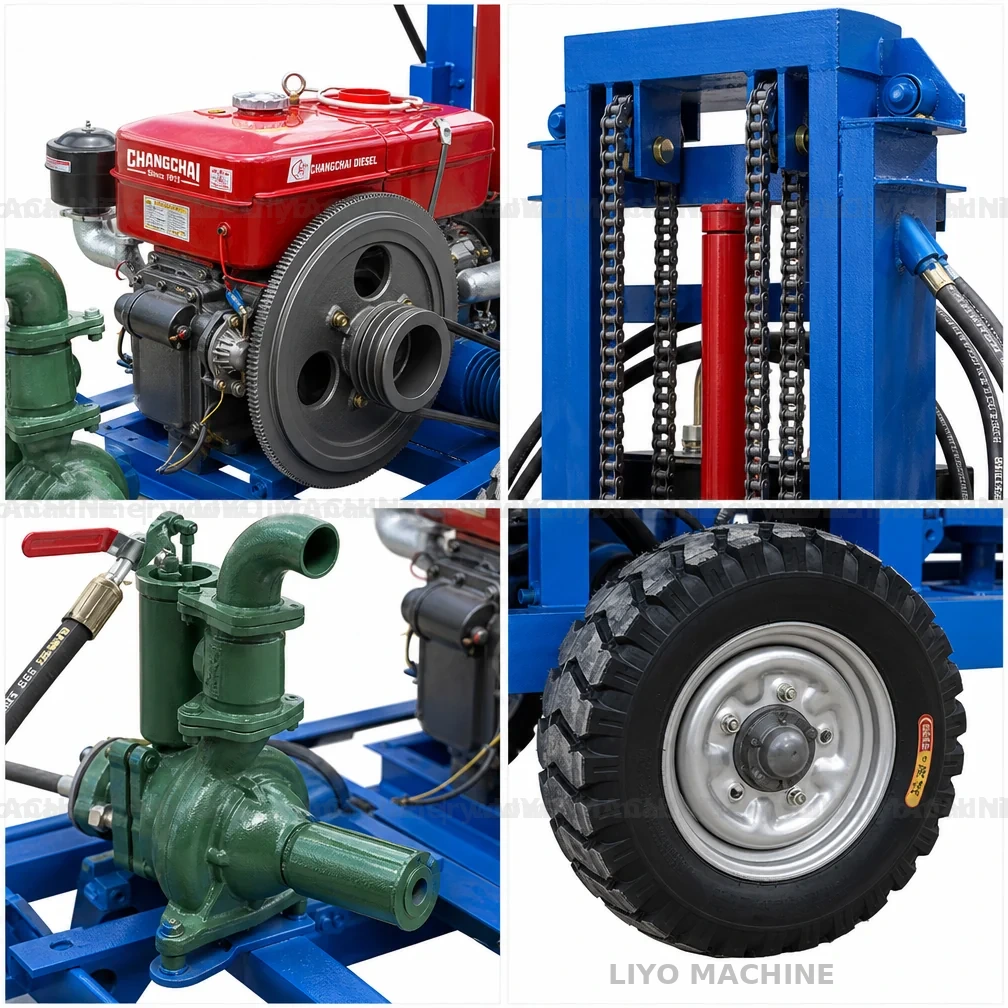

Key Components Buyers Care About
High-Output Diesel Engine
22-35HP diesel engine configuration provides stable power output for continuous drilling operation.
Dual Chain Lifting System
Dual-chain synchronization improves lifting stability and helps reduce wear during drilling.
Integrated Mud Slurry Pump
Integrated pump supports flushing, mud circulation and slag discharge for borehole cleaning.
Heavy-Duty Pneumatic Tires
Automobile-grade tires support easier towing in villages, farms and field job sites.
LY-150 Technical Specification Matrix
Final configuration can be adjusted according to geology, drilling depth and borehole diameter.
| Parameter Item | Standard Specification | Engineering Advantage |
|---|---|---|
| Model | LY-150 | Wheeled hydraulic series |
| Drilling Depth | 100-150m | Depends on strata and borehole diameter |
| Borehole Diameter | 50-250mm | Suitable for small and medium borehole drilling |
| Power Type | Diesel Engine | High-output certified engine |
| Engine Power | 22-35 HP | Fuel-saving and high torque output |
| Chassis Type | Dual-Tire Wheeled Trailer | Automobile pneumatic tires |
| Max Towing Speed | <25 km/h | Supported by cars, trucks or tractors |
| Transmission System | Hydraulic Cylinder + Dual Chain | High lifting force and stable propulsion |
| Drill Rod Diameter | Φ50mm / Φ60mm | Optional according to drilling requirement |
| Drill Rod Length | 1.5m / 2.0m | Customized length available |
| Flush Pump Layout | Integrated Water Pump | High slag discharge and compact layout |
| Mast Leveling | Mechanical Outrigger Jacks | Heavy-duty manual leveling support |
| Hydraulic Oil Cooling | Forced Air Cooler Fan | Electric radiator cooling fan |
Scope Of Application
Geological Survey & Soil Exploration
Stable drilling for soil sampling, strata testing and small exploration tasks.
Road Foundation Exploration
Used before road construction to verify underground geological structures.
River Embankment Grouting Holes
Drills reinforcement holes for water conservancy and embankment projects.
Roadbed Grouting Hole Drilling
Suitable for roadbed settlement repair and slope stabilization.
Civilian Water Wells
Provides domestic water source drilling for rural households and residential yards.
Irrigation Wells For Farmland
Practical drilling solution for agricultural water source development.
OEM / ODM Customization For Global Buyers
Dimensions & Chassis Customization
Machine footprint and chassis configuration can be customized. Crawler-mounted upgrade can be discussed for special transport conditions.
Color & Branding Customization
Supports corporate fleet color, dealer branding, logo labeling and customized appearance design.
Drill Pipe & Bit Customization
Drill pipe diameter, rod length, soil drill bits, core bits, tricone bits and impactor hammer bits can be selected for local geology.
Standard Packing & Shipping List
| Item | Quantity | Description |
|---|---|---|
| LY-150 Main Drilling Rig Unit | 1 Set | Includes wheeled chassis, hydraulic system and diesel power source |
| Integrated Slurry Pump | 1 Set | For mud circulation and slag discharge |
| High-Pressure Water Hose | 1 Piece | Standard water hose for drilling operation |
| Professional Engineering Toolbox | 1 Box | Includes maintenance tools and vulnerable sealing parts |
| Standard Alloy Soil Drill Bit | 1 Piece | Selected according to required borehole diameter |
| High-Strength Drill Pipes | Customized | Prepared according to required drilling depth |
Factory Supply And Export Support
Learn more about our manufacturing capability on the About LIYO Machinery page.
LIYO Machinery focuses on water well drilling rig manufacturing and export. We provide drilling machines, accessories, spare parts, packaging and delivery support for global buyers.
Learn more about our manufacturing capability on the About LIYO Machinery page.
LY-150 FAQ
Q1: Can the LY-150 wheeled drilling rig handle hard rock drilling?
Yes. While it features a compact, mobile design, when paired with our high-pressure water pump and an Impactor Hammer Drill Bit or Tricon Bit, it can drill through hard limestone, sandstone and pebble layers.
Q2: What is the maximum towing speed for this rig?
The machine is designed with an upgraded automotive pneumatic tire system and dual-bearing chassis axle. The maximum safe towing speed behind trucks or tractors is below 25 km/h, making it efficient for short and medium-distance transit between farm fields or residential sites.
Q3: Is the engine compliant with international shipping and fuel standards?
Yes. We use internationally certified high-performance diesel engines. They are built to handle standard diesel fuel globally, offer high torque output and support convenient spare parts availability.
Q4: What parts can I customize before making a bulk or sample order?
We support full OEM/ODM options. You can customize the machine body color, chassis dimensions or upgrade to a crawler-mounted track layout. We can also customize drill pipe diameter, drill pipe length and provide suitable drill bits including soil bits, core bits and tricon bits according to your local soil profile.
Q5: How do I know the manufacturing date of the rig I receive?
Every machine shipped from our factory features a laser-engraved metal nameplate containing the unique model identification code, technical specifications and latest production date stamp, helping ensure you receive a brand-new unit from our production line.
