LYC-200 Crawler Water Well Drilling Rig
LYC-200 is a hydraulic crawler borehole drilling machine designed for 220m water well projects, farm irrigation wells and geological exploration. The crawler chassis, integrated drill pipe rack and dual-engine configuration make it suitable for rough terrain and mobile drilling work.
Why Buyers Choose The LYC-200 Crawler Drilling Rig
Compared with wheeled small drilling machines, LYC-200 provides stronger terrain adaptability, higher drilling capacity and more convenient drill rod transportation.
220m Drilling Capacity
- Suitable for medium-depth water well drilling
- Works for irrigation and residential boreholes
- Designed for 70-350mm hole diameter
Crawler Chassis Mobility
- Better traction on mud, sand and farmland
- More stable than wheeled structures
- Suitable for rough rural job sites
Integrated Drill Pipe Rack
- Carries multiple 1.5m drill rods
- Improves transportation convenience
- Reduces job-site preparation time
Dual Engine Configuration
- 32HP drilling drive engine
- 8HP walking diesel engine
- Independent movement and drilling power
Hydraulic Support Legs
- Improves stability during drilling
- Suitable for uneven ground
- Helps reduce vibration and movement
Factory-Built Export Machine
- Real factory production photos
- Practical configuration for overseas users
- Spare parts and accessories available
LYC-200 Technical Specification Matrix
Below are the confirmed standard specifications. Final configuration can be adjusted according to geology and project requirements.
| Parameter Item | Standard Specification | Engineering Advantage |
|---|---|---|
| Model | LYC-200 | Crawler hydraulic water well drilling rig |
| Maximum Drilling Depth | 220m | Suitable for medium-depth water wells |
| Hole Diameter | 70-350mm | Flexible borehole range for different projects |
| Drill Rod Diameter | 50mm | Common size for easy replacement |
| Drill Rod Length | 1.5m / pcs | Integrated rack supports multiple rods |
| Diesel Engine Brand | CHANGCHAI | Reliable diesel engine configuration |
| Drilling Drive Engine | 32HP | Provides drilling power |
| Walking Diesel Engine | 8HP | Supports crawler movement |
| Chassis Type | Crawler Chassis | Better off-road mobility |
| Machine Weight | 1600kg | Stable machine body for drilling work |
| Machine Dimension | 3500 × 1500 × 2200mm | Compact structure for transportation |

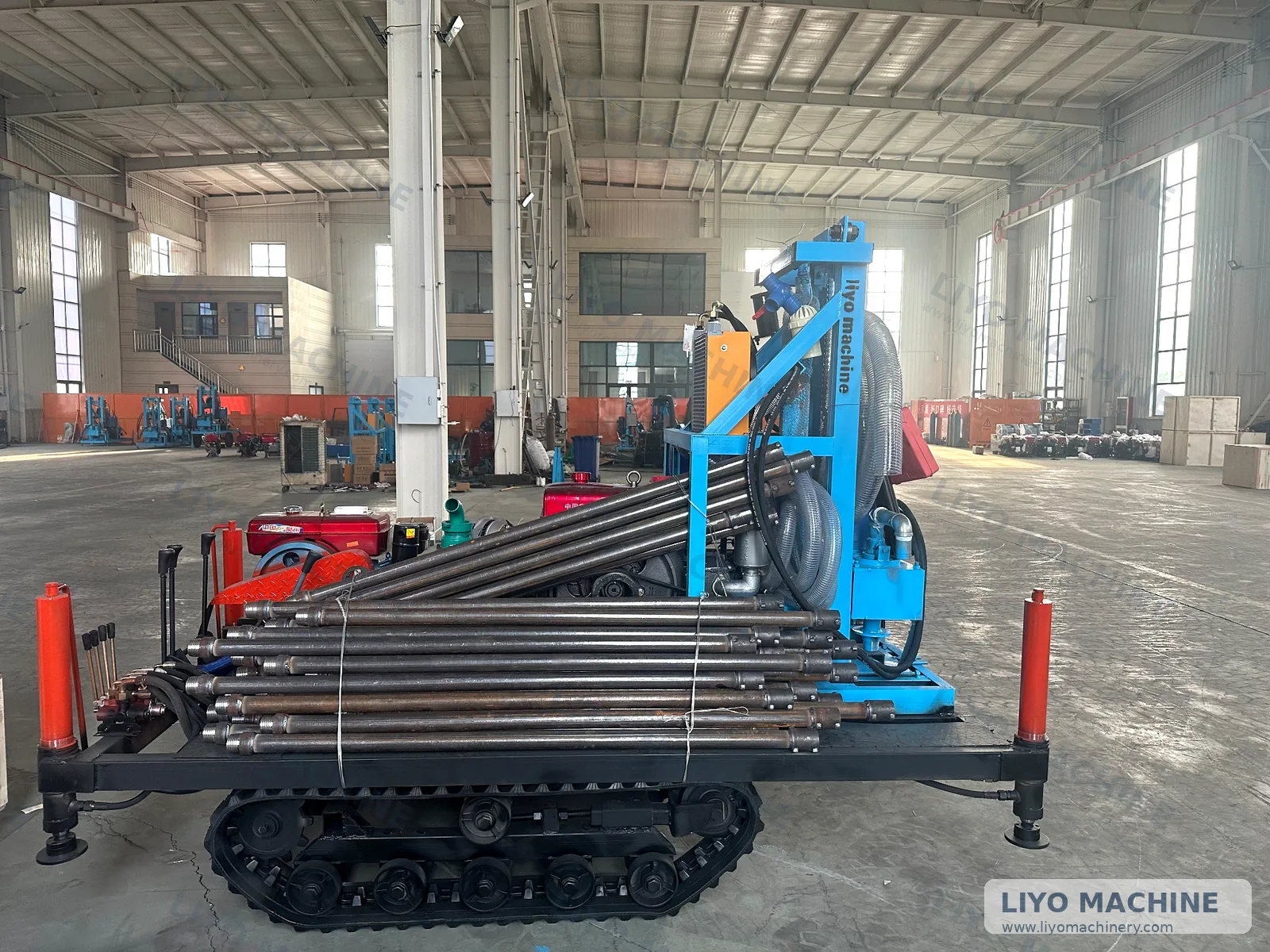

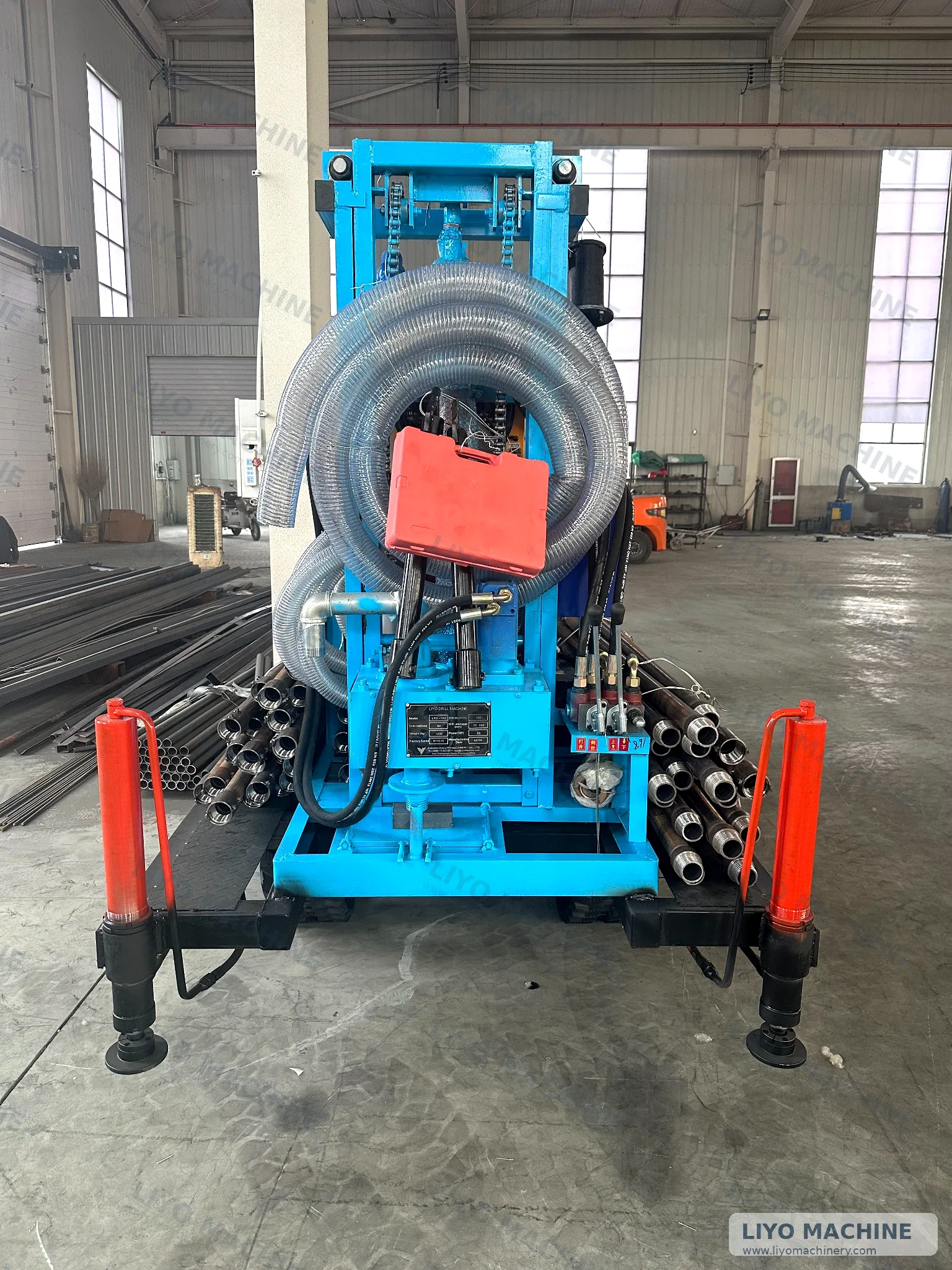

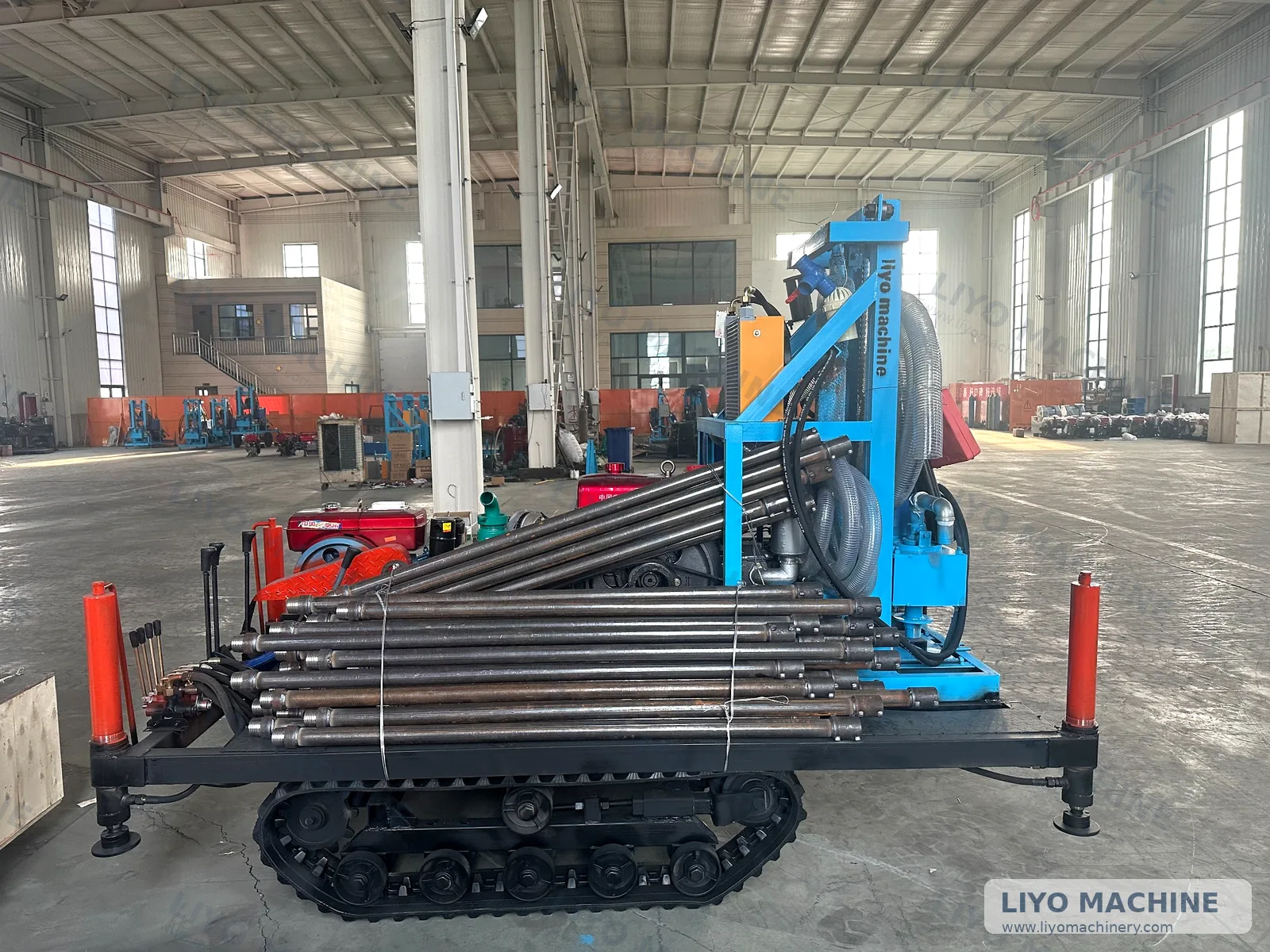

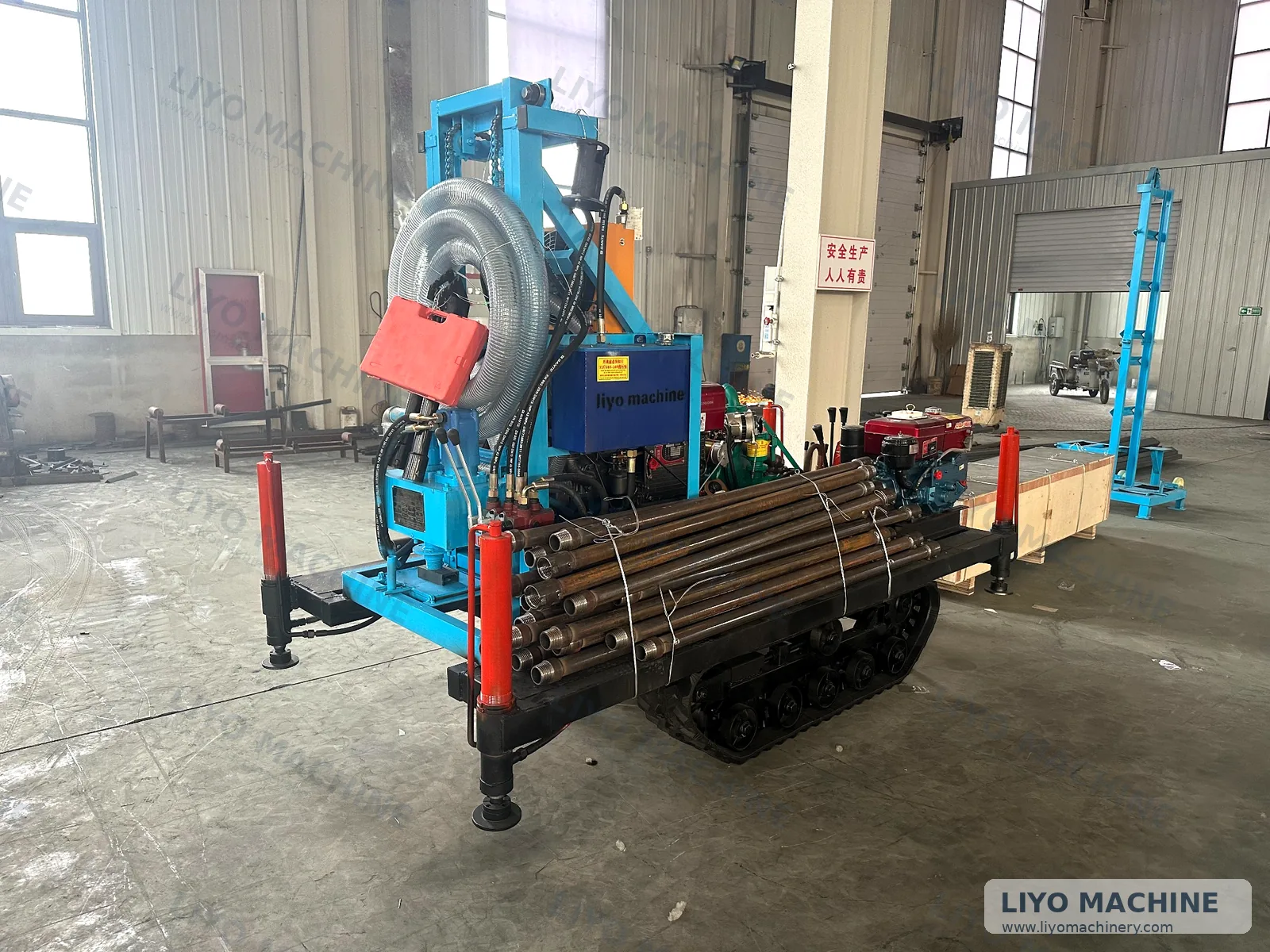

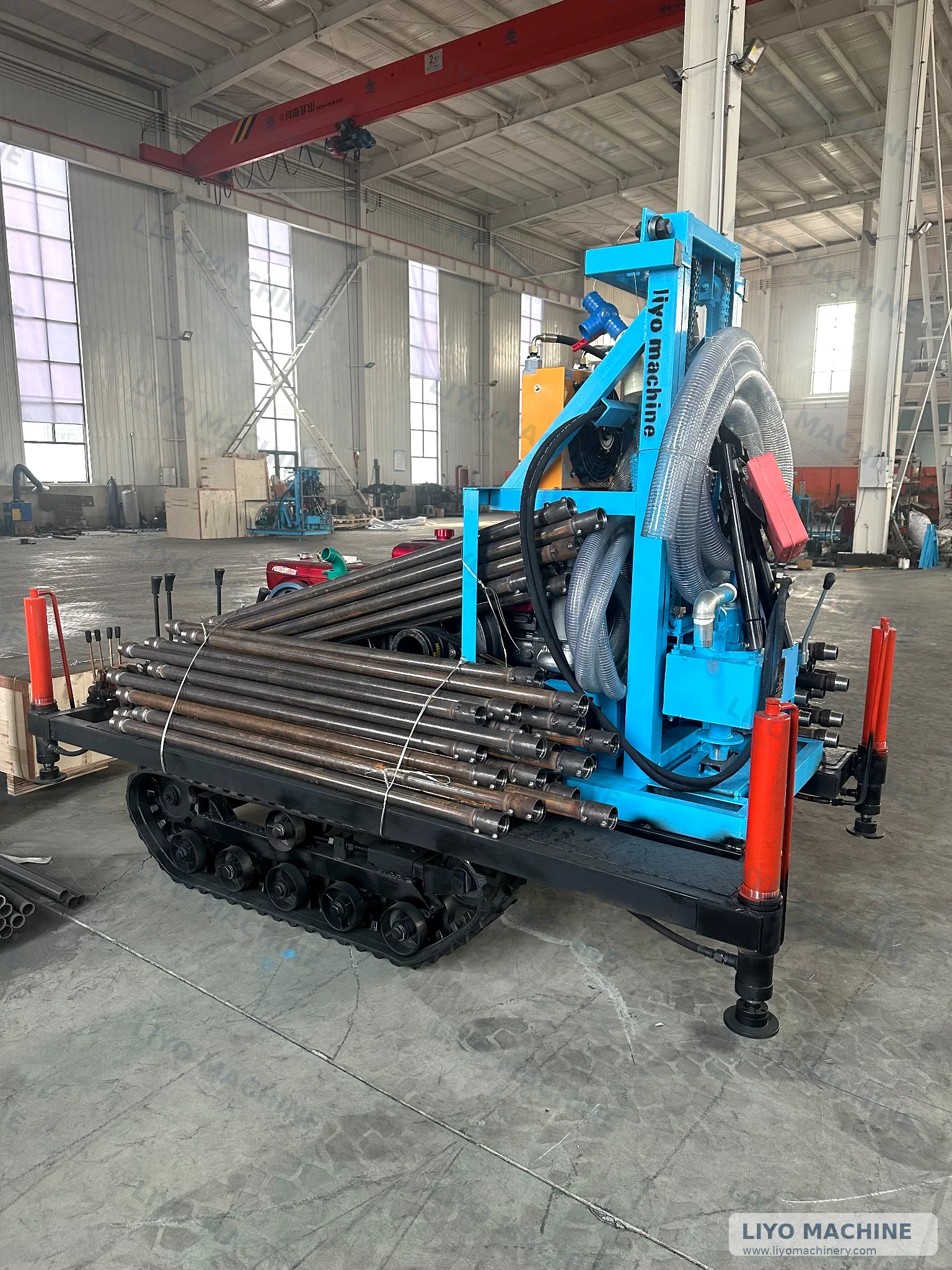

Real Factory Photos Show Machine Structure
These photos show the actual LYC-200 crawler drilling rig, including drill pipe rack, crawler undercarriage, support legs and hydraulic system.
Built For Rural Water Wells And Rough Terrain Drilling
Crawler Undercarriage
Compared with wheeled drilling machines, crawler structure improves mobility on muddy farmland, loose soil and uneven rural roads.
Drill Rod Storage
The built-in drill pipe rack allows workers to carry rods directly with the rig, improving job-site efficiency and reducing transport complexity.
Support Leg Stability
Four support legs help stabilize the machine body during drilling and reduce shaking on uneven ground.
Where LYC-200 Can Be Used
Agricultural Irrigation Wells
Suitable for irrigation water source development in farms, plantations and rural agricultural areas.
Water Well Drilling Projects
Used for residential water wells, village water supply and small-to-medium borehole projects.
Geological Exploration Drilling
Can be used for basic geological survey, soil investigation and field exploration drilling.
Configuration Options For Global Buyers
Drill Pipe & Bit Selection
50mm drill rods, soil drill bits, tricone bits and other drilling tools can be selected according to local formations.
Logo & Color Customization
Machine color, logo mark and dealer branding can be customized for distributors and project customers.
Export Packing Support
Machines, drill rods, accessories and spare parts can be packed for overseas container transportation.
Real Manufacturing And Export Support
LIYO Machinery provides water well drilling rigs, crawler borehole drilling machines and hydraulic drilling equipment for global buyers. Learn more about our manufacturing capability on the About LIYO Machinery page.
LYC-200 FAQ
Q1: What is the maximum drilling depth of the LYC-200?
The recommended maximum drilling depth is 220 meters, depending on geology, hole diameter and drilling method.
Q2: What hole diameter can it drill?
The LYC-200 supports 70-350mm hole diameter, suitable for water well drilling, farm irrigation and borehole projects.
Q3: Why does the LYC-200 use a crawler chassis?
The crawler chassis provides better traction and mobility on mud, sand, farmland and uneven rural roads.
Q4: What engine configuration does it use?
The standard configuration uses a CHANGCHAI diesel engine, with a 32HP drilling drive engine and an 8HP walking diesel engine.
Q5: Can I customize drill rods and drilling tools?
Yes. Drill rods, drill bit types, spare parts and accessory packages can be customized according to project requirements.
Request A Quote
Tell us your drilling depth, hole diameter and project country. Our engineers will recommend the best configuration for you.
