LY-150E Electric Water Well Drilling Machine
The LY-150E is not a simple electric direct-drive drilling machine. It uses a 380V electric motor to drive the hydraulic pump, and the hydraulic system powers the rotary head, lifting system and drilling controls for smoother torque control, forward / reverse rotation and lower noise operation.
Electric Power, Full Hydraulic Control
LY-150E combines 380V electric drive with hydraulic drilling control, making it suitable for farms, rural water supply, residential wells and projects where lower noise and lower fuel cost are important.
380V 11kW / 15kW Options
Choose 380V 11kW or 15kW main motor depending on your working condition and power availability.
Hydraulic Pump Driven by Motor
The electric motor drives the hydraulic pump, then hydraulic power controls drilling, lifting and rotation.
Forward & Reverse Rotation
The hydraulic rotary head supports forward and reverse operation for easier rod connection and withdrawal.
Lower Noise Operation
No diesel engine noise, suitable for farms, villages, residential areas and indoor workshop testing.
380V 4kW Mud Pump
Equipped with electric mud pump for mud rotary drilling and borehole flushing.
6.50-12 Inch Tires
Wheel-mounted towing structure for easy movement between farm wells and job sites.
More Than a Simple Electric Drilling Machine
Many small electric drilling machines use simple direct-drive structure. The LY-150E is different. Its 380V electric motor supplies hydraulic power through a hydraulic pump, so the operator can control torque, speed, lifting and reverse rotation with hydraulic valves.
This design improves control stability, reduces operating noise and avoids diesel engine maintenance, while still keeping the advantages of hydraulic drilling performance.
Ask for Electric Model PriceElectric Direct Drive vs Hydraulic Electric Drilling Rig
Unlike simple electric drilling machines that connect the motor directly to the drill head, the LY-150E uses a hydraulic pump and hydraulic rotary head system. This design provides smoother torque output, forward and reverse control and lower operating noise.
| Feature | Direct Drive Electric Rig | LY-150E Hydraulic Electric Rig |
|---|---|---|
| Torque Control | Limited | Excellent |
| Forward / Reverse Rotation | Basic | Hydraulic Control |
| Operating Noise | Medium | Low |
| Lifting System | Mechanical | Hydraulic |
| Maintenance | Higher | Lower |
| Drilling Efficiency | Standard | Higher |
LY-150E Specifications
Standard specifications for the LY-150E 380V electric hydraulic water well drilling machine.
| Item | Specification |
|---|---|
| Model | LY-150E |
| Drilling Depth | 150m |
| Hole Diameter | 70–350mm |
| Drill Rod Diameter | 51mm |
| Main Motor | 380V 11kW / 15kW optional |
| Power Type | Electric hydraulic system |
| Mud Pump | 380V 4kW electric mud pump |
| Lifting Force | 6T |
| Machine Weight | 490kg |
| Machine Size | 1950 × 950 × 1840mm |
| Tire Size | 6.50-12 inch |
| Application | Farm wells, irrigation, residential water supply, rural borehole drilling |

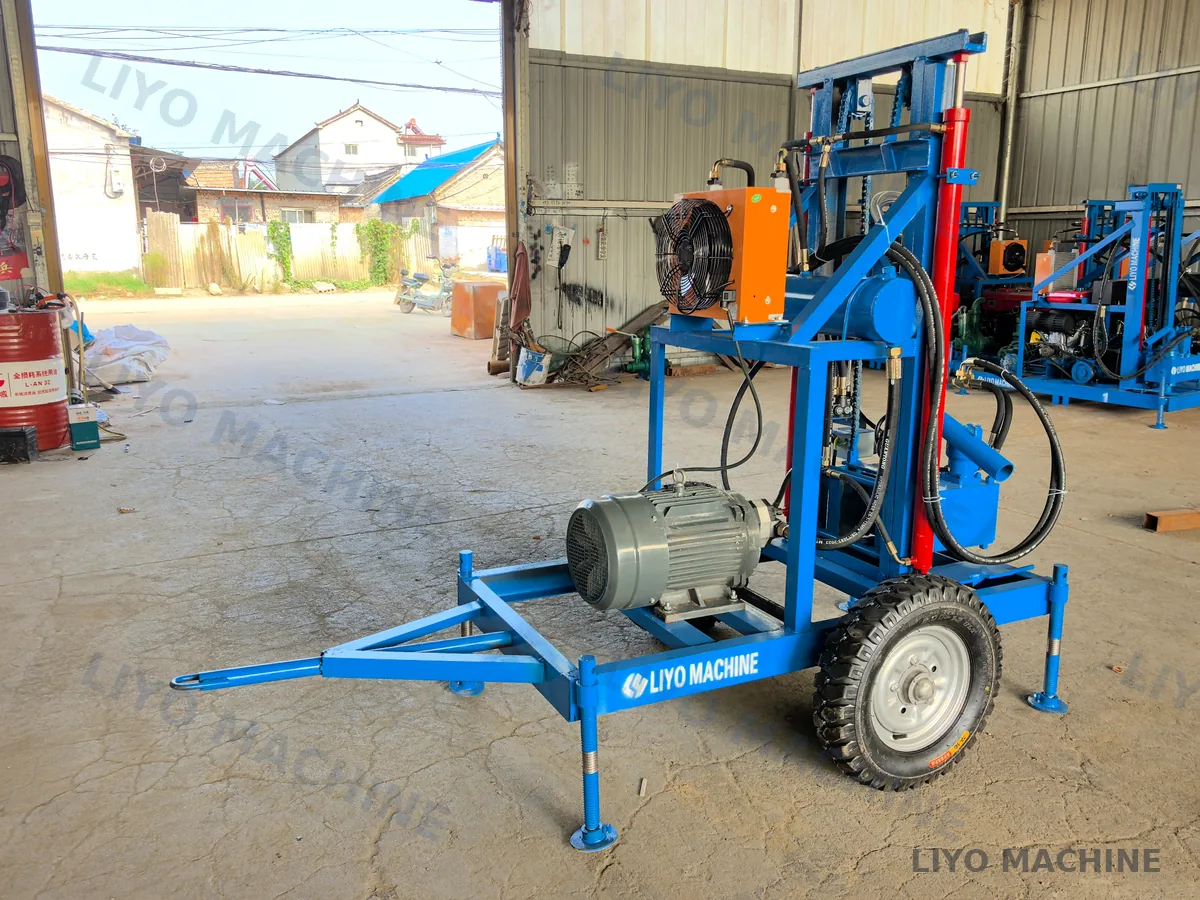

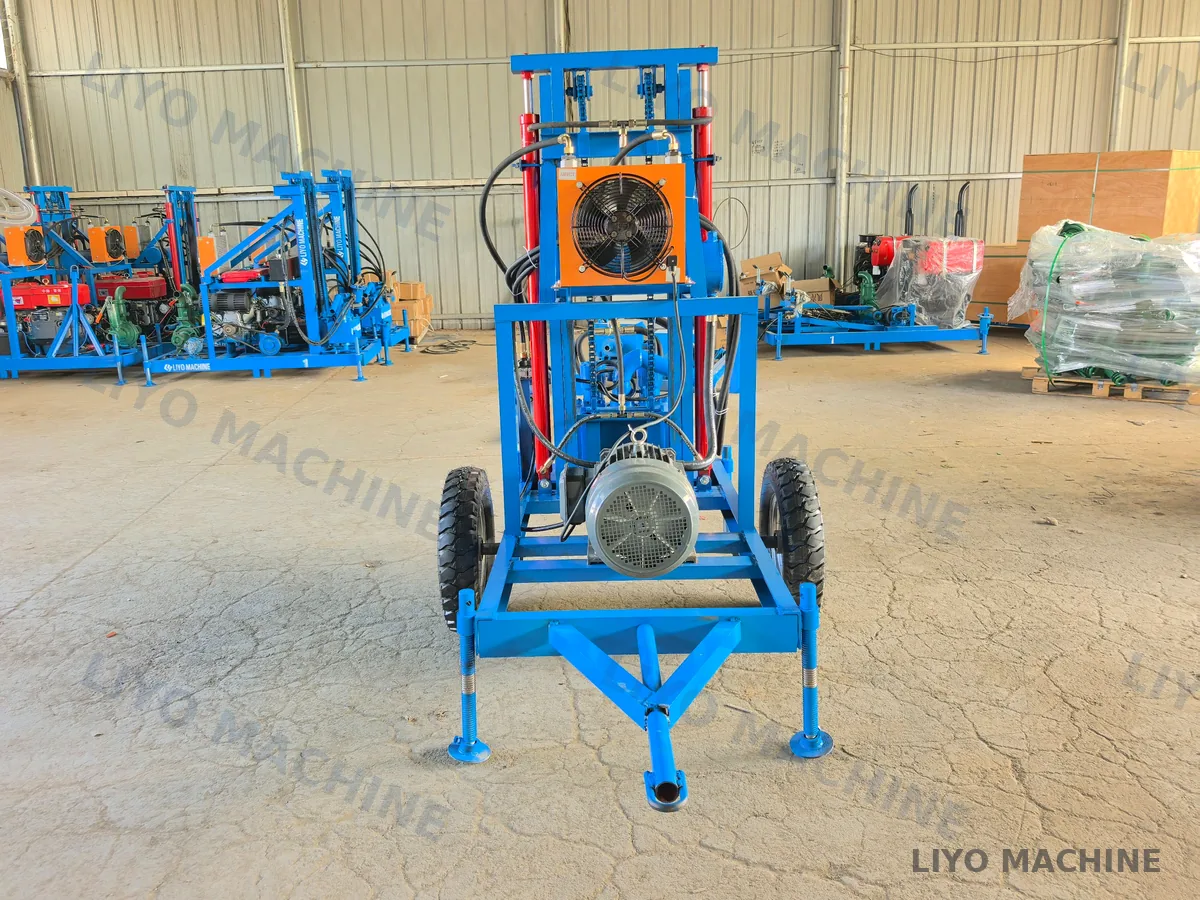

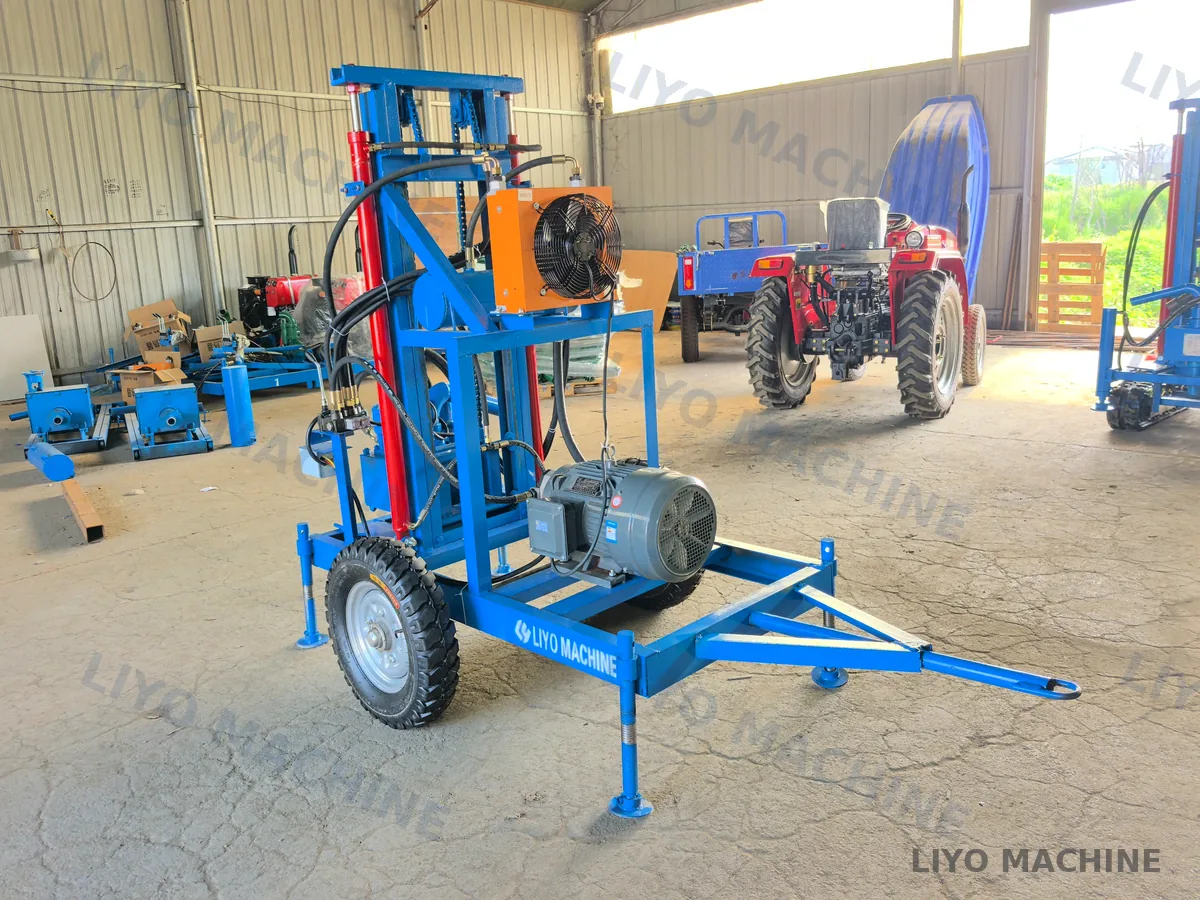

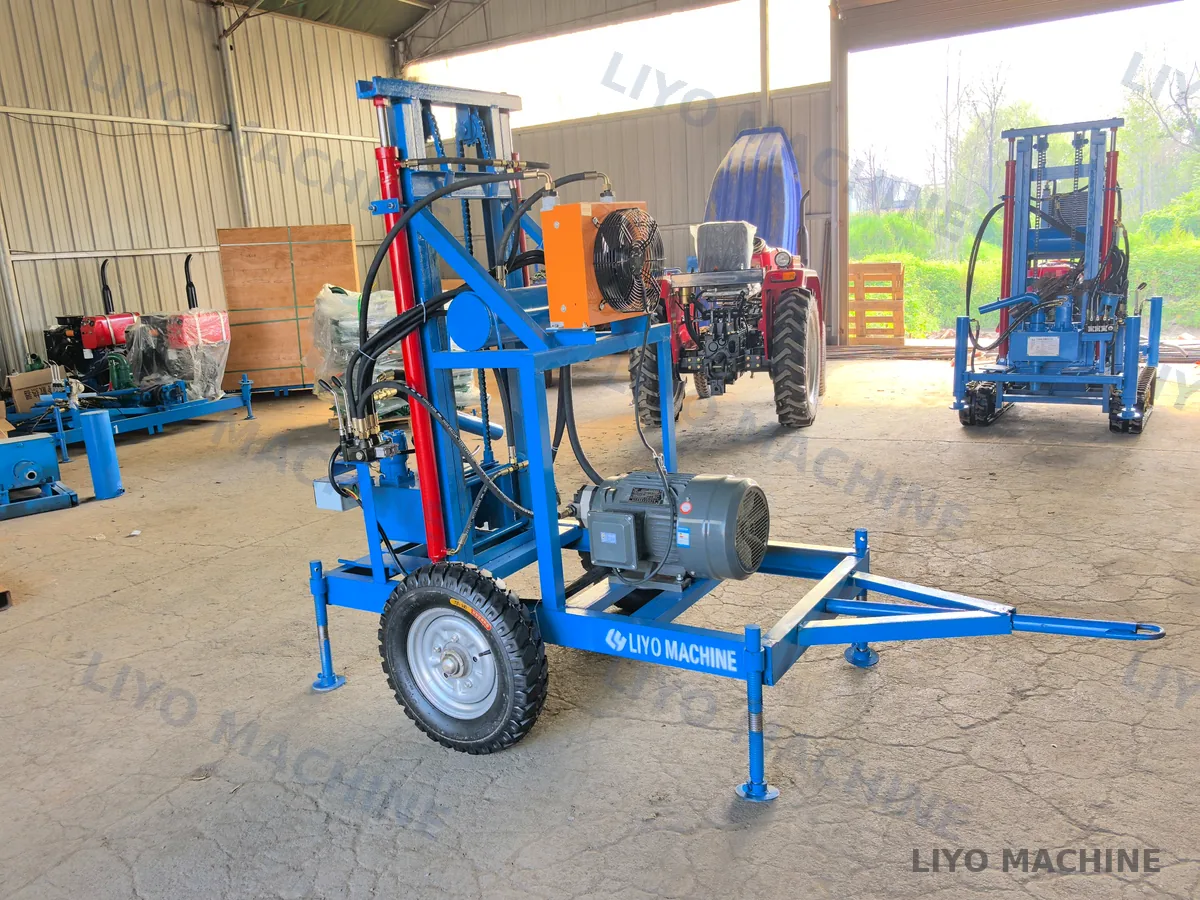

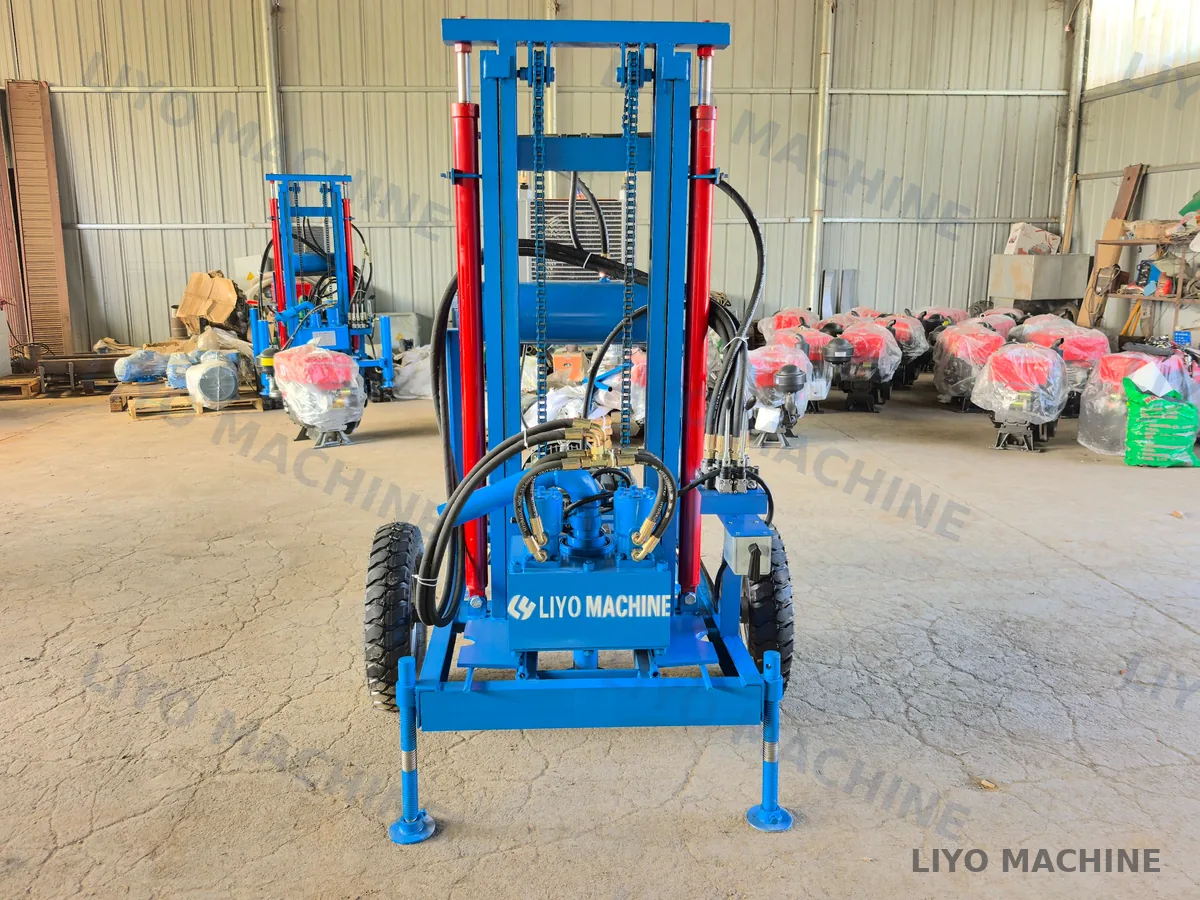

LY-150E Real Machine Gallery
Real workshop photos of the electric hydraulic drilling machine with wheel-mounted towing chassis.
Suitable for Farms, Rural Wells and Low-Noise Drilling Sites
The LY-150E is designed for buyers who have access to industrial 380V power and want to reduce fuel cost, noise and diesel engine maintenance.
It is especially suitable for farmland irrigation, household wells, village water supply, garden wells and small borehole drilling projects.
Frequently Asked Questions
Is the LY-150E a direct-drive electric drilling machine?
No. The LY-150E uses a 380V electric motor to drive the hydraulic pump. The hydraulic system powers the rotary head, lifting system and drilling control.
What motor power can I choose?
The LY-150E can be configured with a 380V 11kW or 15kW main motor, depending on job-site power supply and drilling requirements.
What is the maximum drilling depth?
The standard drilling depth is 150m, with 70–350mm borehole diameter range.
Does it use a mud pump?
Yes. The machine uses a 380V 4kW electric mud pump for mud rotary drilling and flushing.
Is it quieter than a diesel drilling rig?
Yes. Since it does not use a diesel engine, the LY-150E produces lower operating noise and is easier to maintain.
Why does the LY-150E use a hydraulic system?
The hydraulic system allows precise torque control, forward and reverse rotation, smoother drilling operation and lower noise compared with direct-drive electric drilling machines.
Which is better: electric hydraulic or diesel drilling machine?
Electric hydraulic drilling machines are ideal where stable 380V power is available. They offer lower operating cost, lower noise and easier maintenance than diesel-powered models.
Need a 380V Electric Hydraulic Drilling Rig?
Send us your drilling depth, hole diameter, soil condition and local power supply. We will recommend the right motor configuration for your project.
LY-150E vs LY-130E Electric Drilling Machine
Choose LY-150E for stronger 380V hydraulic electric drilling. Choose LY-130E when you need a smaller pure electric model with 220V / 110V motor options.
| Item | LY-150E | LY-130E |
|---|---|---|
| Drive Type | 380V electric motor drives hydraulic pump | Pure electric motor + gear reducer |
| Voltage | 380V | 220V 50Hz / 60Hz, 110V optional |
| Main Motor | 11kW / 15kW optional | 4kW |
| Control Method | Full hydraulic control | Button control with electric control box |
| Drilling Depth | 150m | 130m |
| Best For | Farm irrigation, rural water supply, stronger borehole drilling | Small farm wells, garden wells, household boreholes |
Need a compact pure electric drilling machine? View LY-130E Electric Water Well Drilling Machine
