LYQY-260 Wheel Water Well Drilling Rig
LYQY-260 is a professional wheel-mounted drilling rig built with dual hydraulic motors, 64mm heavy-duty drill pipes, 6.50-16 truck-type tires and a hydraulic folding mast for deeper, tougher and more mobile drilling work.
6 Key Advantages of LYQY-260
Designed for contractors who need higher torque, stronger drilling tools, better mobility and easier transportation.
Dual Hydraulic Motors
Higher rotary torque for hard soil, clay and challenging geological formations.
64mm Drill Pipes
Heavy-duty drill pipes improve torque transmission, drilling stability and service life.
6.50-16 Truck Tires
Larger truck-type tires provide better ground clearance and rough-road towing stability.
Hydraulic Folding Mast
The mast can be tilted down for easier towing, storage and container transportation.
260m Drilling Depth
Designed for deeper groundwater, irrigation wells and commercial borehole projects.
40HP Diesel Engine
Reliable diesel power supports long drilling operations in remote job sites.
Why LYQY-260 Is Built For Professional Contractors
LYQY-260 is designed around higher torque, stronger drilling tools, larger tires and easier transportation for real job-site conditions.
Dual Hydraulic Motors
Dual hydraulic motors provide higher rotary torque than single-motor rigs, helping maintain stable drilling performance in dense soil, clay and tougher formations.
64mm Heavy-Duty Drill Pipes
The increased torque requires stronger drill pipes. 64mm heavy-duty drill pipes improve torque transmission, drilling stability and service life.
6.50-16 Truck-Type Tires
Large 6.50-16 tires improve ground clearance, towing stability and mobility across farmland, mud, sand and rough access roads.
Hydraulic Folding Mast
The mast can be tilted or folded for easier towing, storage and container transportation, reducing relocation time between job sites.

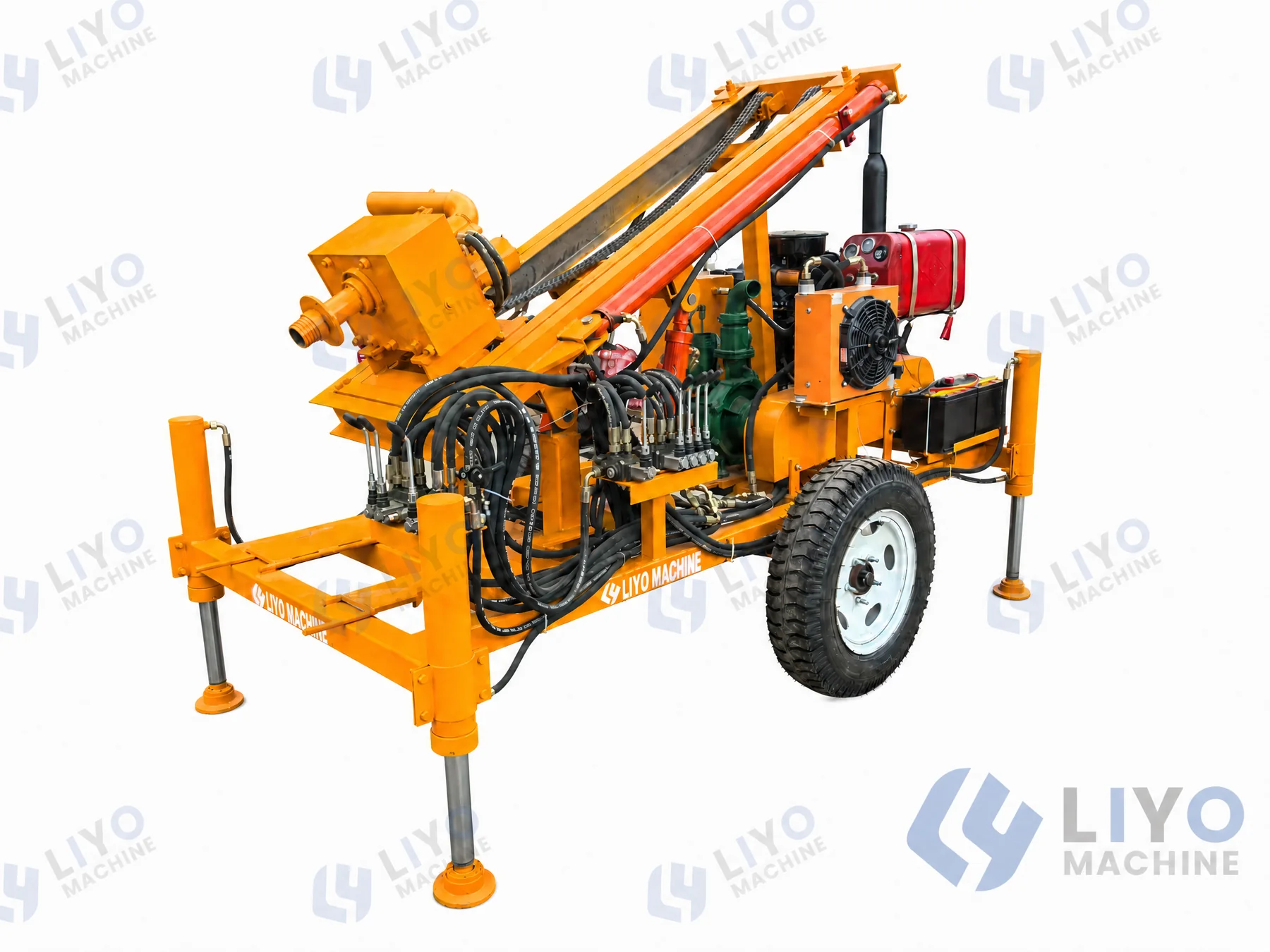

Dual Hydraulic Motors Require Stronger 64mm Drill Pipes
The biggest upgrade of the LYQY-260 is the dual hydraulic motor drive system. Compared with standard single-motor drilling rigs, dual motors deliver stronger rotary torque and more stable power output.
To match this higher torque, the machine uses 64mm heavy-duty drill pipes instead of smaller standard pipes. This improves torque transmission and helps the rig perform better in hard soil, dense clay, gravel and deeper well drilling conditions.
6.50-16 Truck-Type Tires
Using truck-size 6.50-16 tires, the LYQY-260 offers better towing stability, stronger load support and higher ground clearance than small trailer wheel designs.
Hydraulic Folding Mast
The hydraulic tower can be tilted down for transport, making trailer towing, container loading and storage more convenient for contractors.
260m Drilling Capability
With 260m drilling depth and 90-450mm hole diameter, the rig is suitable for irrigation wells, residential water supply and commercial borehole projects.
LYQY-260 Technical Specification Matrix
| Parameter Item | Standard Specification | Engineering Advantage |
|---|---|---|
| Model | LYQY-260 | Professional wheel-mounted water well drilling rig |
| Drilling Depth | 260m | Suitable for deeper groundwater and contractor projects |
| Hole Diameter | 90-450mm | Wide borehole range for different well applications |
| Engine | 40HP Diesel Engine | Reliable diesel power for field drilling work |
| Hydraulic Motor | Dual Hydraulic Motors | Higher torque output and stronger drilling performance |
| Drill Pipe Diameter | 64mm | Heavy-duty pipe for stronger torque transmission |
| Drill Pipe Length | 2m | Efficient drilling operation and depth extension |
| Tire Size | 6.50-16 Truck-Type Tire | Better towing stability and rough-road mobility |
| Mast Type | Hydraulic Folding Mast | Easy towing, storage and transportation |
| Machine Weight | 1500kg | Stable machine body for heavy-duty drilling |
| Machine Dimension | 3500 × 1500 × 2400mm | Trailer-mounted structure for field relocation |

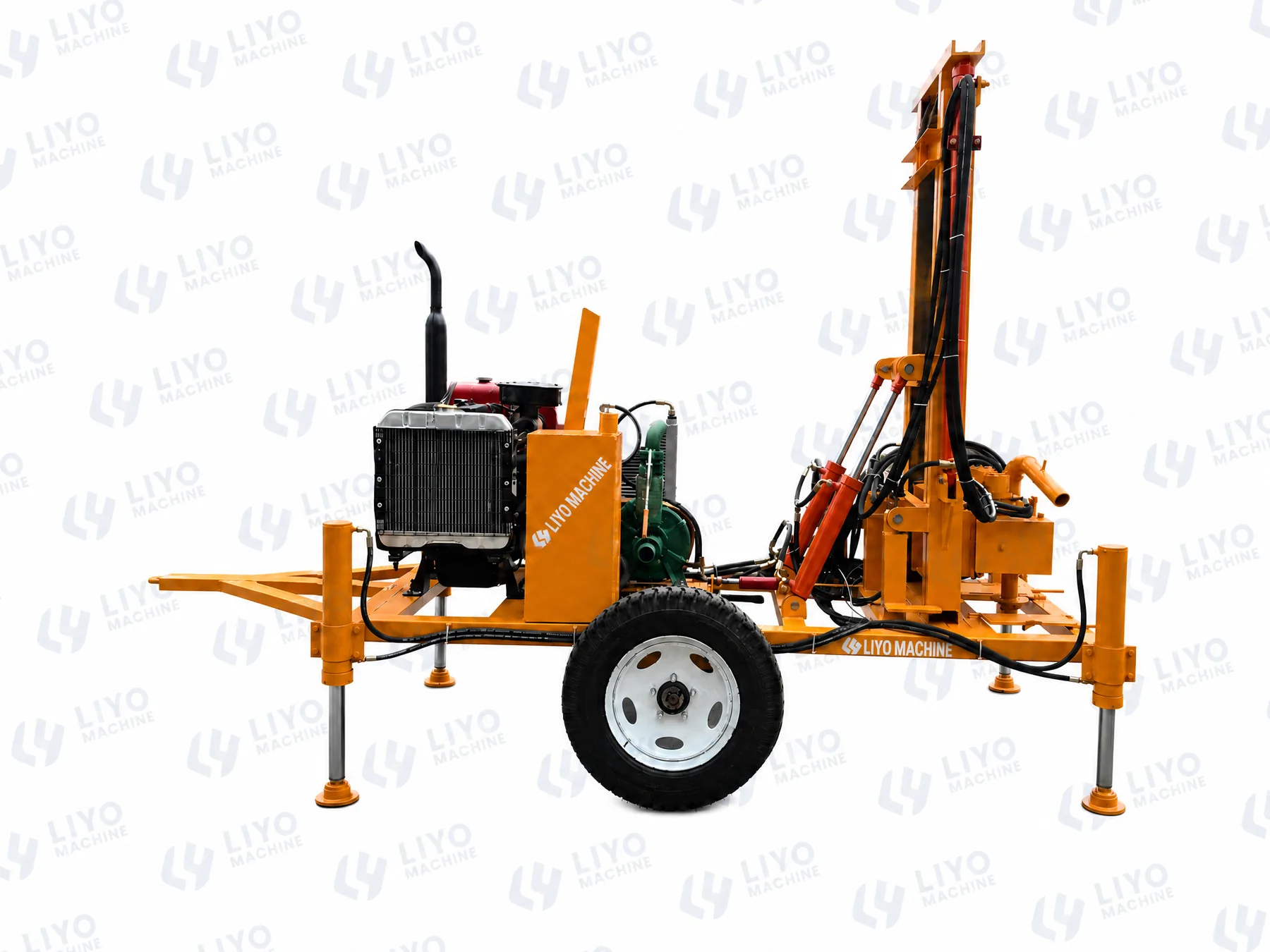

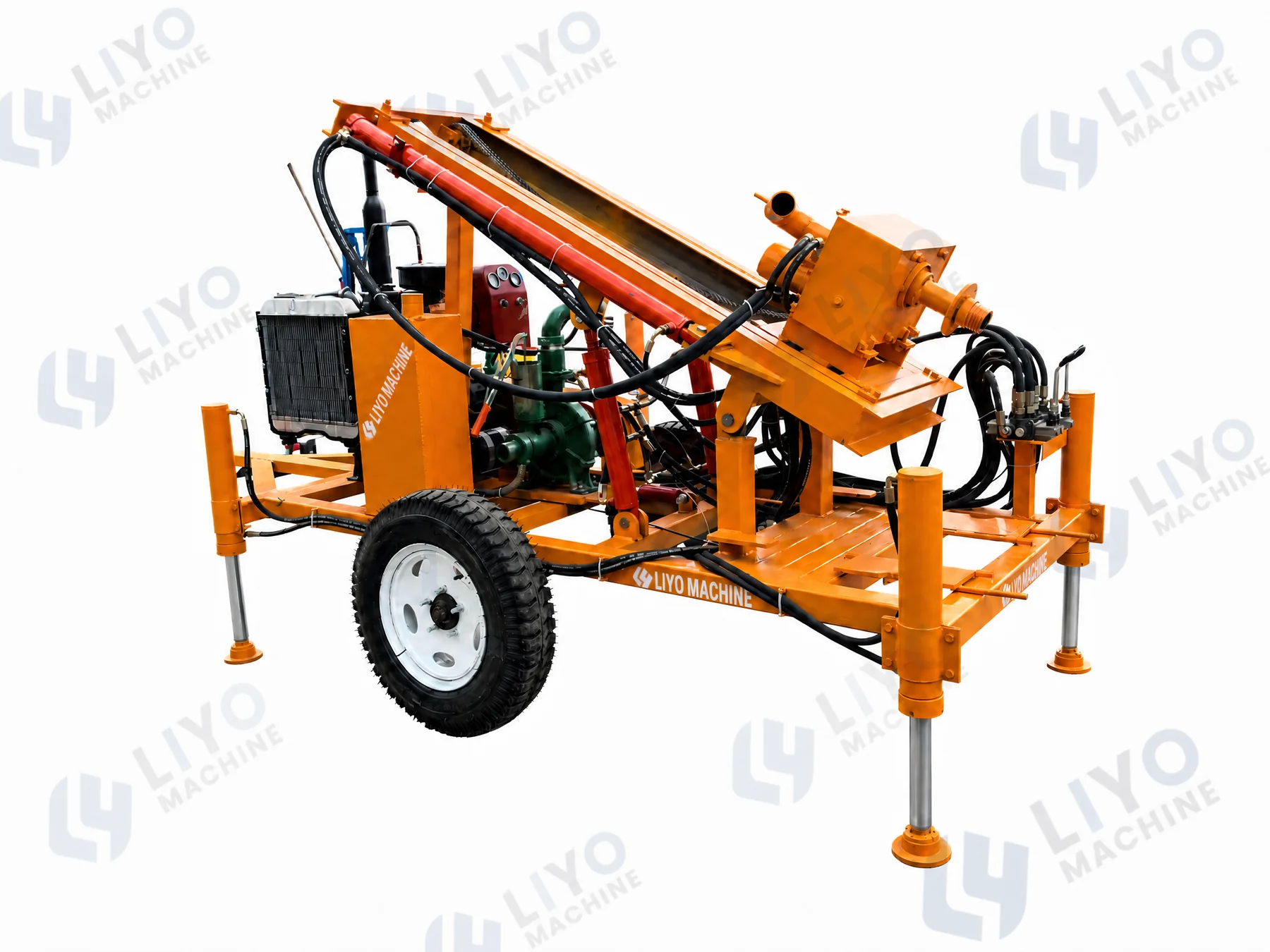

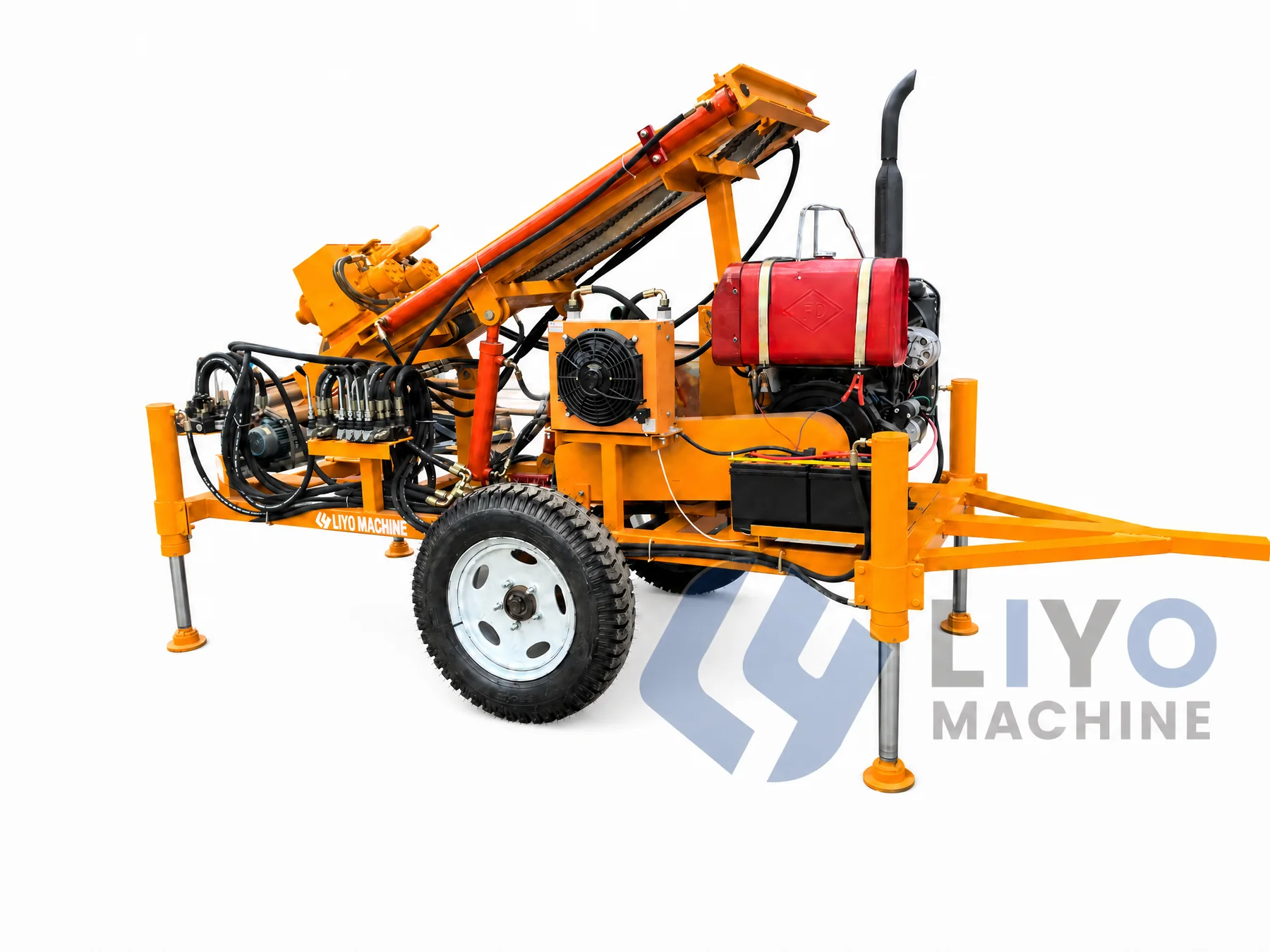

LYQY-260 Real Product Photos
Why LYQY-260 Outperforms Standard Water Well Rigs
Compared with standard small drilling rigs, the LYQY-260 is built with stronger drive power, heavier drill pipes, larger tires and easier transport capability.
| Feature | Standard Water Well Rig | LYQY-260 Upgrade |
|---|---|---|
| Hydraulic Motors | Single hydraulic motor | Dual hydraulic motors for higher rotary torque |
| Drill Pipe | Smaller standard drill pipe | 64mm heavy-duty drill pipe for stronger torque transmission |
| Tires | Small trailer tires | 6.50-16 truck-type tires for better towing and terrain handling |
| Mast Structure | Fixed or basic mast | Hydraulic folding mast for easier transportation |
| Drilling Depth | Entry-level drilling depth | Up to 260m for deeper water well projects |
| Target Users | Small farm or basic well drilling | Professional contractors and commercial borehole projects |
LYQY-260 vs LY-150: See The Engineering Upgrade
LY-150 is a compact entry-level drilling machine. LYQY-260 is designed for professional contractors who need more torque, stronger drill pipes, larger tires and better transport performance.
Drive System
LYQY-260 adopts dual hydraulic motors for stronger rotary torque and more reliable drilling in difficult formations.
Drill Pipe Strength
64mm heavy-duty drill pipes help transmit higher torque and support deeper drilling work.
Mobility & Transport
6.50-16 truck-type tires and a hydraulic folding mast make the machine easier to tow and relocate.
Built For Real Job-Site Conditions
Agricultural Irrigation Wells
Suitable for farms, plantations and rural irrigation projects requiring stable water supply.
Domestic Water Supply
Used for residential wells, village drinking water and rural water source development.
Commercial Boreholes
Designed for contractors handling deeper wells, larger boreholes and repeat drilling work.
Hard Soil & Rough Terrain
Dual motors, 64mm drill pipes and larger tires support drilling in more challenging field conditions.
Safe Packaging for Global Delivery
The LYQY-260 is packed with a strong steel frame and protective panels to reduce shipping risk, support container loading and make international delivery safer.

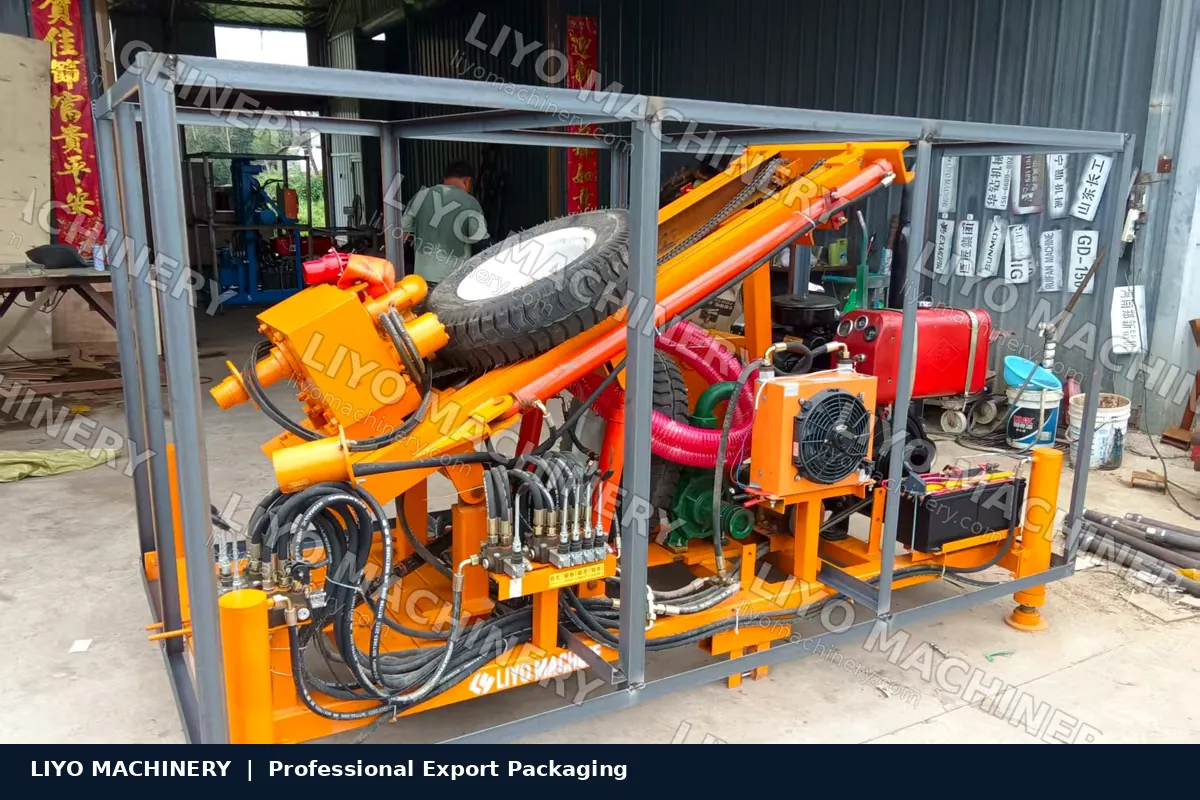

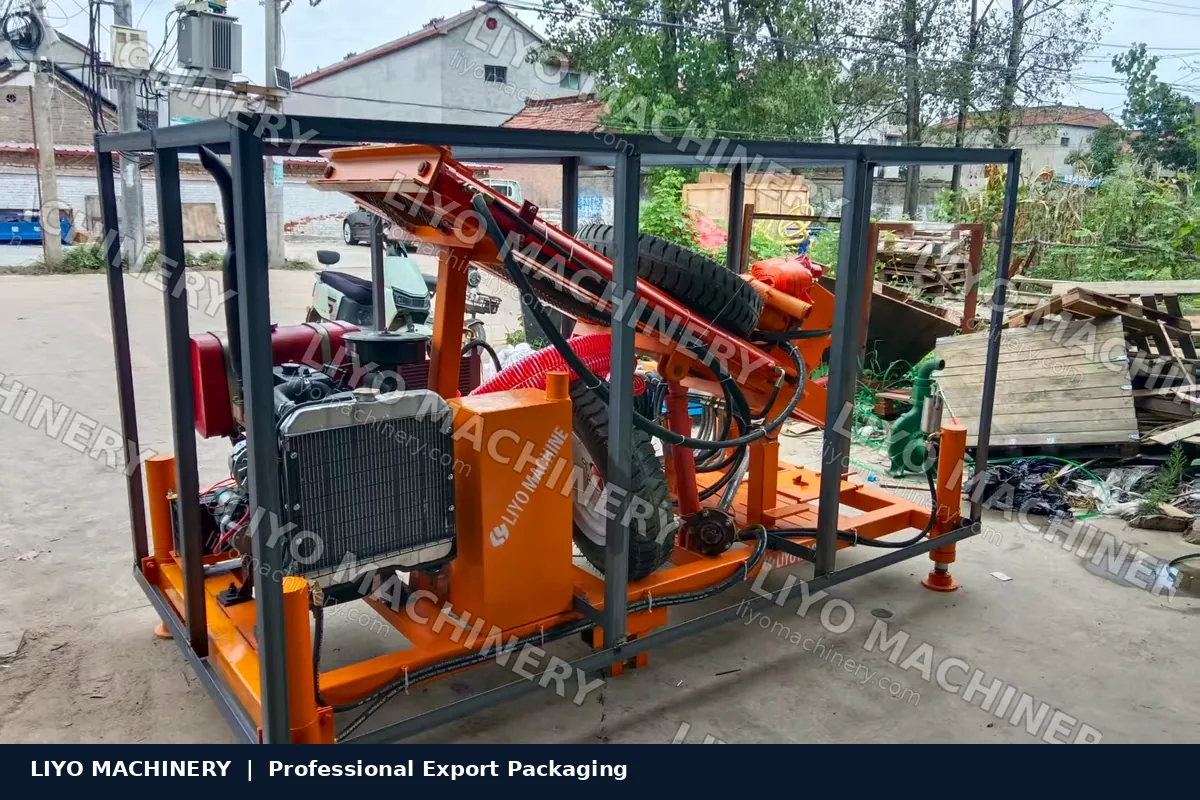

Steel Frame Crate
The machine is fixed inside a heavy-duty steel frame to protect the drilling rig during long-distance sea and land transportation.

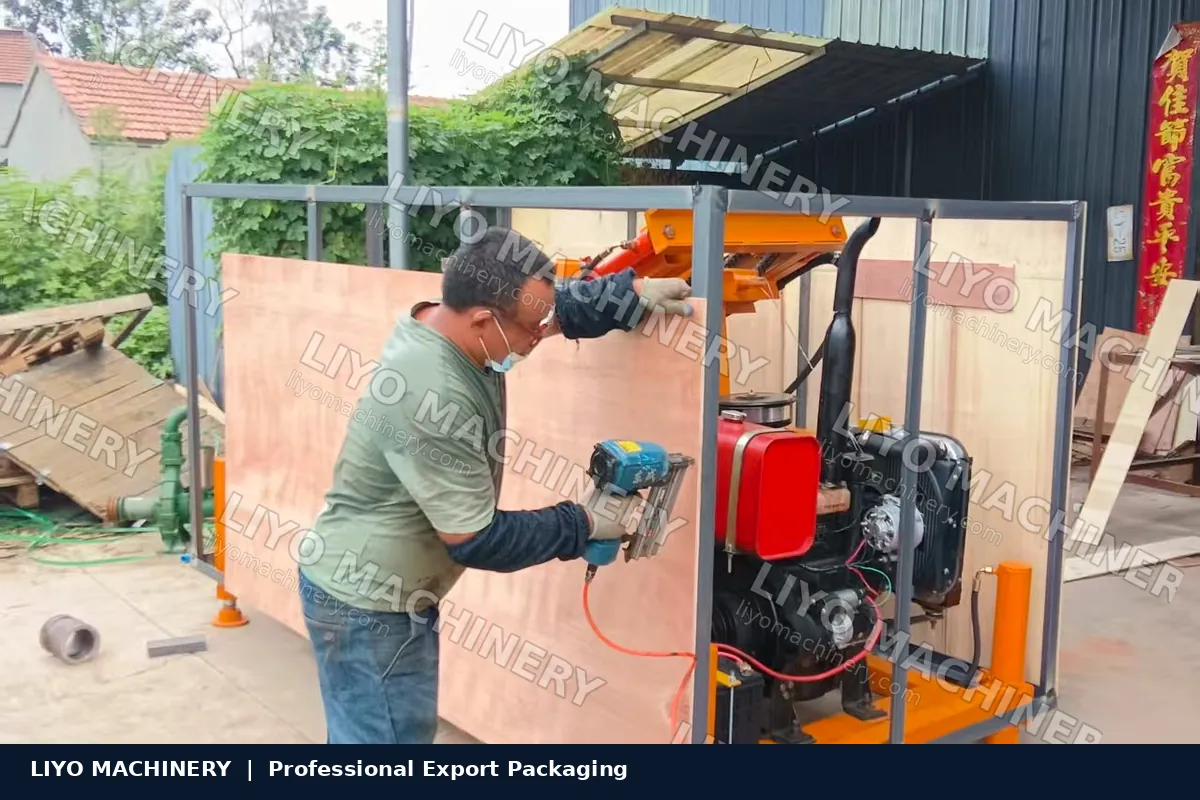

Protective Wood Panels
Wooden side panels help protect key components, engine area, hydraulic system and mast structure during export shipping.

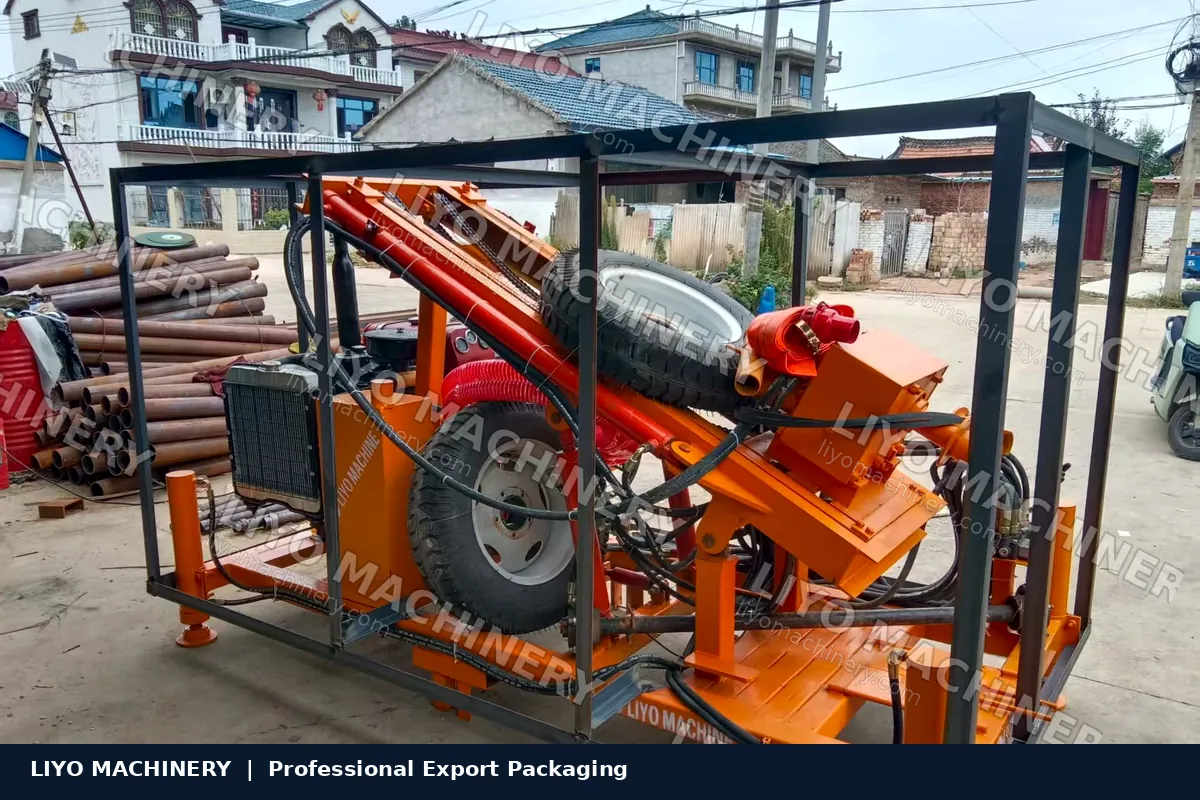

Folded Mast for Transport
The hydraulic folding mast reduces transport height, making container loading, trailer movement and storage more convenient.
Why Buy From LIYO Machine?
LIYO Machine provides factory-direct drilling rigs, technical support, spare parts service and export packaging for global water well drilling contractors.
15+ Years Manufacturing Experience
Professional drilling rig manufacturer with in-house production, assembly and long-term product development experience.
Factory Direct Supply
Work directly with the manufacturer for better pricing, clearer technical communication and reliable after-sales support.
Strict Quality Inspection
Each drilling rig is inspected and tested before shipment to help reduce failure risk after delivery.
Spare Parts Support
Common spare parts, drilling tools and configuration support are available for long-term machine operation.
LYQY-260 FAQ
Q1: What is the maximum drilling depth?
Up to 260 meters, depending on formation, drilling diameter and drilling method.
Q2: Why use dual hydraulic motors?
Dual motors provide higher torque output and more stable rotary power than single-motor systems.
Q3: Why use 64mm drill pipes?
The higher torque output requires stronger 64mm heavy-duty drill pipes for better torque transmission and service life.
Q4: What are the tire advantages?
6.50-16 truck-type tires improve ground clearance, towing stability and rough-road mobility.
Request A Quote
Tell us your drilling depth, hole diameter, soil condition and destination country.
