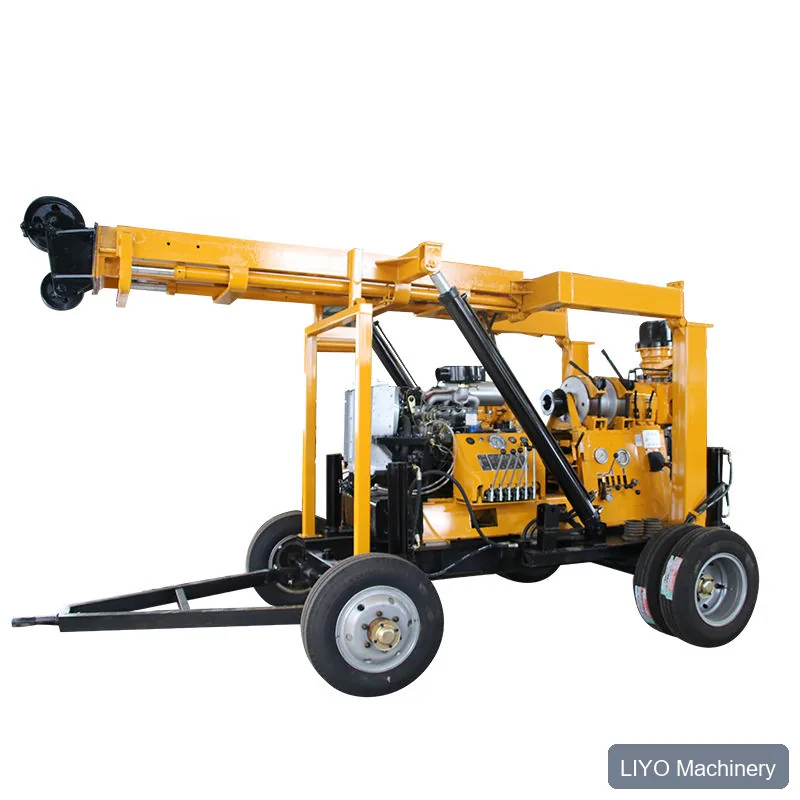

LYXY-3 Wheel Mechanical Gearbox Water Well Drilling Rig
The LYXY-3 is a mature wheel-mounted water well drilling rig for 300m to 530m borehole projects. It has been produced for more than ten years and has performed well in African water well drilling. Rotation is driven by a mechanical gearbox, not a hydraulic motor, while the hydraulic chuck and hydraulic assistance make operation practical for field contractors.
Mechanical Rotation, Not Hydraulic Motor Rotation
The LYXY-3 belongs in the 200m-600m water well rig category because it is a larger deep-well machine, but its rotation is mechanical gearbox driven. This is important for buyers comparing it with full hydraulic rotary rigs.
The advantage is a mature, field-serviceable structure that many African contractors already understand.
Proven Old Model for Water Well Contractors
This model has been in production for more than ten years and is still used in African farm irrigation, village water supply and borehole contractor projects. It is practical when road transfer and mechanical maintenance are more important than a modern hydraulic motor rotary system.
Africa water wellsMechanical gearboxHydraulic chuckWheel-mountedLYXY-3 Technical Parameters
| Item | Specification |
|---|---|
| Model | LYXY-3 Wheel Mechanical Gearbox Water Well Drilling Rig |
| Drilling Depth | 530 m |
| Drilling Diameter | 75-300 mm |
| Hole Diameter / Final Hole Diameter | 300 mm / 75 mm |
| Drill Pipe | Diameter 60 mm |
| Drilling Inclination | 90-65 degrees |
| Rotary System | Mechanical rotary gearbox, not hydraulic motor rotary drive |
| Transmission | MW525 type car transmission assembly, 10 speed series, 2 reverse speeds |
| Vertical Axis Forward Speed | 32-1057 r/min |
| Vertical Axis Reversal Speed | 29-137 r/min |
| Vertical Axis Travel | 600 mm |
| Vertical Shaft Bore Diameter | 96 mm |
| Vertical Axis Lifting Capacity | 60 kN |
| Main Winch Single Rope Lifting Speed | 0.5-1.9 m/s |
| Single Rope Lifting Capacity | 30 kN |
| Optional Mud Pump | BW-250 horizontal three-cylinder mud pump, 250 L/min, 80 kg/cm2 |
| Gear Pump | CBF-F63/25, 63 L/min 20 MPa and 25 L/min 20 MPa |
| Diesel Engine | YN27, 42 kW / 2400 rpm |
| Motor Option | Y180L-4, 22 kW / 1470 rpm |
| Rig Weight | 3600 kg |
| Dimensions | 2900 x 2560 x 3300 mm |
Best-Fit Water Well Projects
African Rural Water Wells
Suitable for contractors drilling farm irrigation wells and village water supply boreholes where simple service is important.
Road-to-Site Transfer
The wheel-mounted layout is practical when jobsites are connected by passable rural roads and transport cost matters.
Deep Mud Drilling
With the optional BW-250 mud pump, the rig can support deeper mud drilling work under suitable formations.

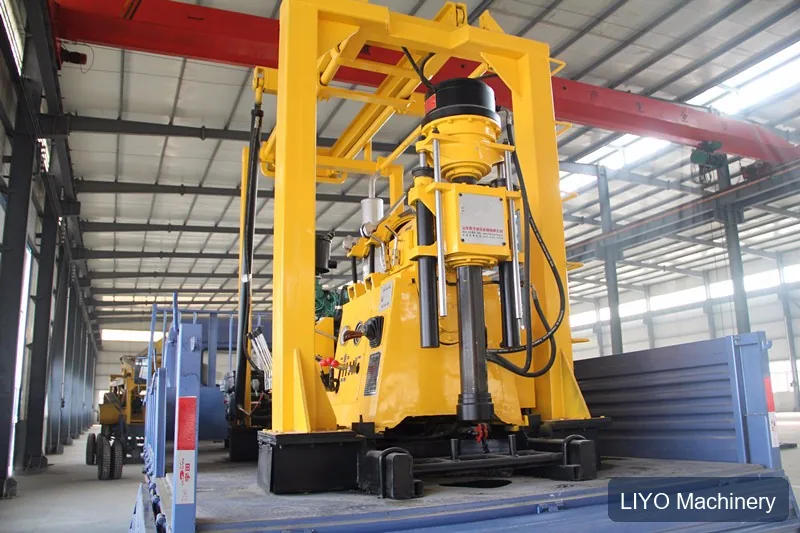

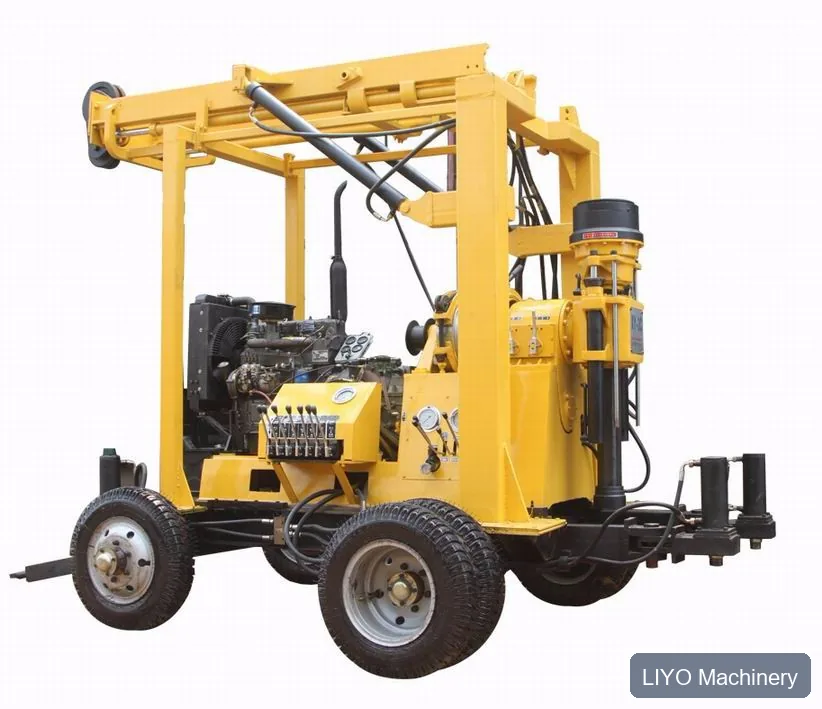

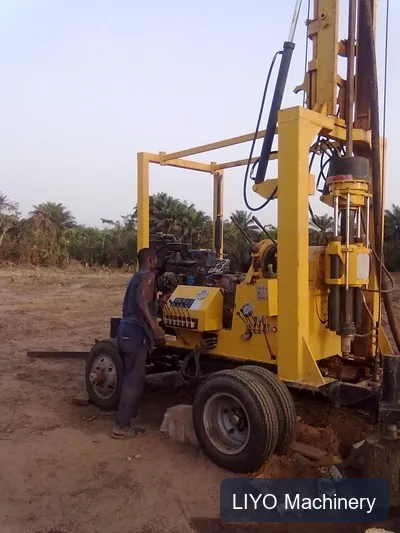

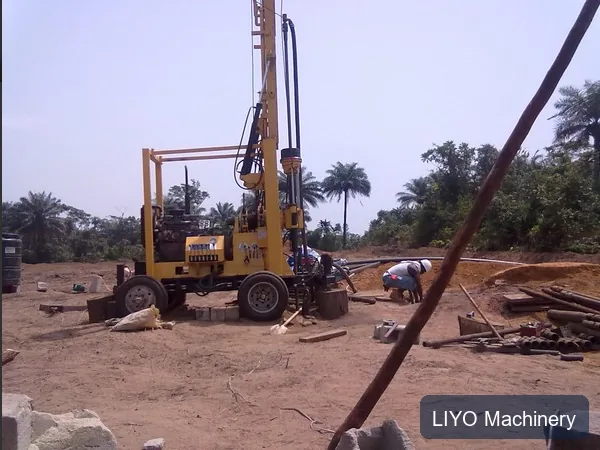

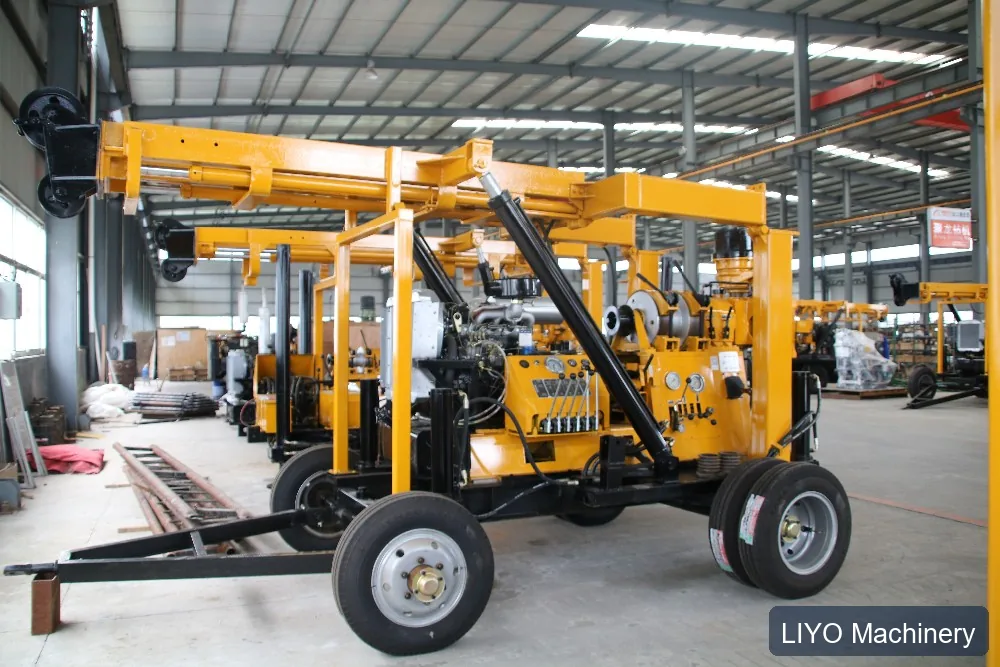

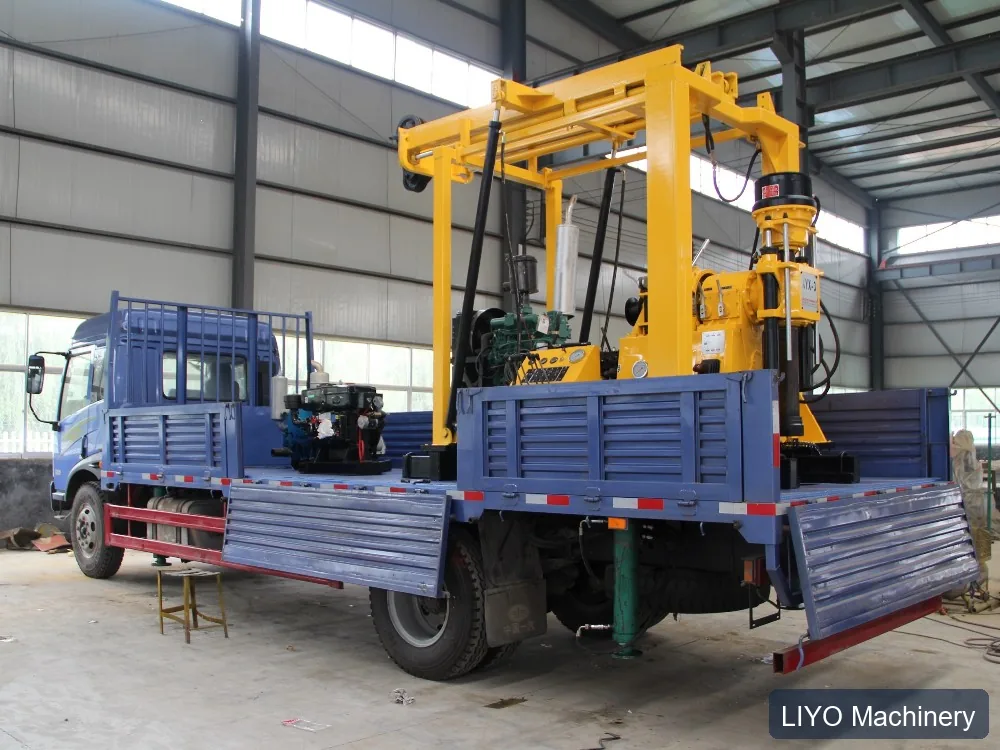

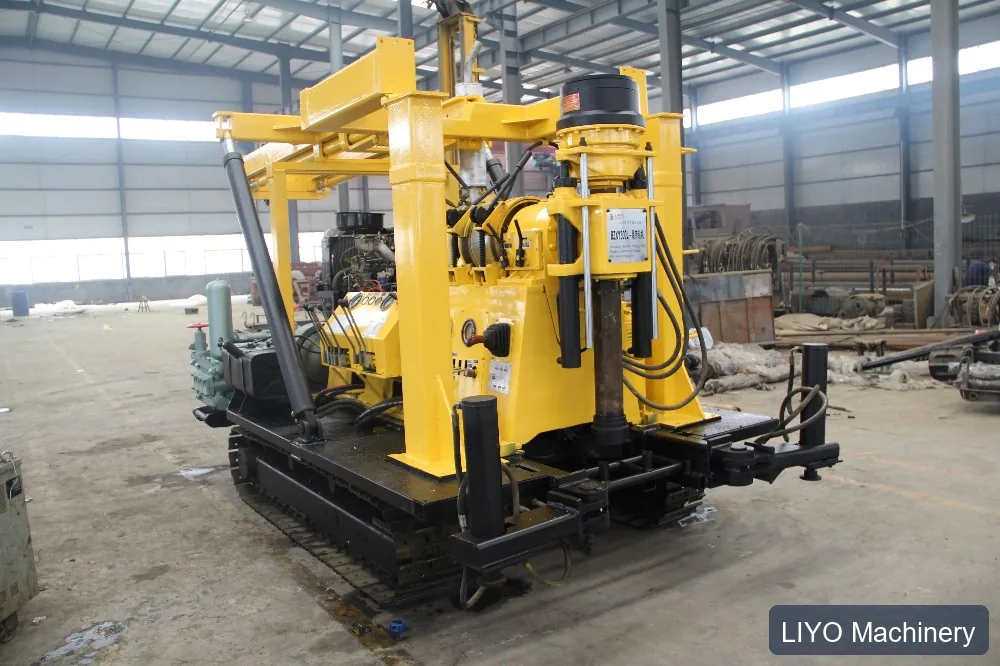

LYXY-3 Wheel Water Well Drilling Rig Photos
LYXY-3 FAQ
Is LYXY-3 a full hydraulic drilling rig?
No. LYXY-3 uses mechanical rotary gearbox rotation. It has hydraulic chuck and hydraulic assistance, but it is not a hydraulic motor rotary rig.
Why is this old model still useful?
Because the structure is mature, practical and easier for many field teams to understand. It has been used in Africa for many years and remains suitable for water well contractors.
What is the drilling depth?
The rated drilling depth is 530m. Actual performance depends on borehole diameter, formation, mud pump, drill pipe and operator setup.
Who should choose this model?
Choose LYXY-3 when you need a wheel-mounted deep water well rig, mechanical gearbox rotation and practical maintenance for rural or contractor projects.
